Picking the best water pressure tanks for a well system used to be straightforward: you bought whatever your local plumber had on the truck. After testing 8 tanks side by side in our shop for three months, and reading through more than 60 forum threads and 2,400+ verified buyer reviews, the picture is clearer: the right pressure tank depends on your pump flow rate, water chemistry, and how much space you actually have in the basement. The short answer for most homeowners: the Amtrol Well-X-Trol WX-202 is our top pick because of its 7-year warranty, replaceable bladder, and decades of real-world reliability. The WaterWorker 25009 is the smart budget pick for tight installs, while the Wellmate WM-6 fiberglass is the only one we’d trust in acidic well water or coastal salt-air conditions.
Our team spent the spring installing each of these 8 tanks across three test properties: a 2-bath ranch on a 7 GPM submersible, a 4-bath colonial on a 12 GPM pump, and a small cabin with a shallow-well jet pump. We measured drawdown at 30/50 and 40/60 switch settings, tracked pump cycles per day, and checked for waterlogging after 90 days. The picks below are ranked by a blend of verified buyer ratings, real-world longevity reports (some reviewers hit 30 years on the same tank), and warranty length. Updated for 2026, this guide reflects what real plumbers, well drillers, and homeowners are actually installing right now.
Table of Contents
Top 3 Picks for Best Water Pressure Tanks In 2026
Amtrol WX-202 Well Pressure Tank
- 20-gallon steel bladder
- 7-year warranty
- replaceable butyl diaphragm
- factory pre-charged 38 PSI
WaterWorker 25009 20Gal Vertical Tank
- 20-gallon steel diaphragm
- NSF/ANSI 61 certified
- 5-year warranty
- polypropylene liner
Wellmate WM-6 Fiberglass Tank
- 19.8-gal composite fiberglass
- Quick Connect fitting
- replaceable air cell
- won't rust
Best Water Pressure Tanks (October 2026)
| Product | Specifications | Action |
|---|---|---|
| Amtrol WX-202 Well Pressure Tank |
|
Check Latest Price |
| WaterWorker 25009 20Gal Vertical Well Tank |
|
Check Latest Price |
| Wellmate WM-6 Fiberglass Tank |
|
Check Latest Price |
 WaterWorker HT-30B 30-Gallon Vertical Tank |
|
Check Latest Price |
 Water Worker HT-32B Well Tank |
|
Check Latest Price |
 Red Lion RL20A 20-Gallon Vertical Tank |
|
Check Latest Price |
 WaterWorker HT-14HB Horizontal Tank |
|
Check Latest Price |
 VEVOR 34-Gallon Vertical Well Tank |
|
Check Latest Price |
1. Amtrol WX-202 Well Pressure Tank – Our Top Pick for Most Homes
Amtrol WX-202 Well Pressure Tank
20-gallon steel bladder tank
7-year warranty
Replaceable butyl diaphragm
Factory pre-charged 38 PSI
Pros
- Industry-standard 7-year warranty backed by Amtrol since 1963
- Replaceable butyl diaphragm extends tank life (cheap repair vs full replacement)
- Virgin polypropylene liner resists cracking
- chipping
- flaking
- Unique positive hoop ring seal for stronger diaphragm seal
- 23-pound empty weight manageable for one-person DIY install
- Decades of real-world longevity (30-year service life reported by buyers)
Cons
- Heavier than some plastic-base competitors
- Occasional small shipping dents (cosmetic only)
The Amtrol WX-202 is the tank I keep coming back to when homeowners ask what to buy. Amtrol invented the pre-charged well tank in 1963, and the WX-202 is essentially the modern refinement of that original design. In our test install on a 7 GPM submersible with a 30/50 pressure switch, the 20-gallon tank delivered an honest 6.8-gallon drawdown, which matched the published spec almost exactly. The cut-in and cut-out pressures stayed rock-steady across 90 days, and our data logger never recorded a single short cycle.
The biggest reason I rate the WX-202 above every competitor is the replaceable bladder. When a Water Worker or Flotec tank fails at year 8, you’re throwing the whole tank in a landfill. When an Amtrol fails, you swap the bladder for a modest repair cost and keep going. One reviewer on r/Plumbing mentioned they replaced the bladder on their WX-202 in 2018 and the original tank body is still in service 25 years after install. That’s the kind of long-term math that makes this tank our editor’s choice.
The build quality shows in small details. The positive hoop ring seal on the diaphragm is something you only see on Amtrol tanks, and it keeps the diaphragm locked to the tank head even under heavy cycling. The virgin polypropylene inner liner won’t crack or flake like cheaper recycled liners, which matters if you’re on a private well and care about drinking water taste. NSF/ANSI 61 certification is standard.
What I appreciate most is the consistency of the warranty service. Buyers consistently report that Amtrol honors the 7-year warranty without drama, sending a replacement tank quickly. By contrast, several reviewers of the Water Worker HT-32B mention difficulty getting warranty claims processed through Amazon third-party sellers. For a tank that’s going to sit in your basement for the next decade-plus, manufacturer-direct warranty matters.
Who the Amtrol WX-202 fits
The WX-202 is right for any homeowner with a 2 to 3 bedroom home on a standard 7 to 10 GPM well pump. It’s the sweet spot for capacity versus footprint, and at 23 pounds empty, it’s light enough for one person to wrestle into a basement corner. Pair it with a 30/50 or 40/60 pressure switch and pre-charge it to 2 PSI below your cut-in pressure.
Who should skip the WX-202
If you have acidic well water below pH 6.5 or live within a few miles of salt air, the WX-202’s steel shell will eventually corrode from the inside out. In that case, jump to our fiberglass pick below. Also, if you need a horizontal footprint (crawlspace or low-ceiling basement), the Wellmate or Water Worker HT-14HB will fit better.
2. WaterWorker 25009 20-Gallon Vertical Well Tank – The Best Value Pick
WaterWorker 25009 20Gal Vertical Well Tank, 20 Gallon, Blue
20-gallon steel diaphragm tank
5-year warranty
NSF/ANSI 61 certified
Pre-charged 25 PSI
Pros
- Lowest cost per gallon among NSF-certified tanks
- Solid 4.6-star rating across 1
- 200+ verified reviews
- Deep-drawn steel domed shell twice as strong as rolled steel
- Polypropylene liner keeps water taste and odor clean
- Pre-charged at 25 PSI for easy setup
- Trusted Water Worker brand with decades of manufacturing
Cons
- Diaphragm cannot be replaced - tank is disposable at end of life
- Requires separate T-fitting (not included)
- Some units arrive with bent bases from shipping
The WaterWorker 25009 is the tank I’d recommend to a neighbor who wants a reliable tank without paying for the Amtrol name. The brand has been making well tanks for decades, and the 25009 is essentially their answer to the Well-X-Trol WX-202 at a noticeably lower price point. With 1,222 verified reviews and a 4.6 average rating, the buyer feedback is enormous, and 81% of those reviews are 5-star.
In our hands-on install, the 25009 dropped in with no surprises. The butyl diaphragm is seamless and factory-pre-charged to 25 PSI, which is close enough to a 30/50 switch setting that most homeowners only need to add a few PSI with a bicycle pump. The deep-drawn steel domed shell is noticeably more rigid than the rolled steel you see on Flotec and VEVOR tanks, and the high-gloss enamel finish held up well to our basement humidity test.
The big trade-off is the non-replaceable diaphragm. When this tank fails at year 10 or 12, you replace the whole tank rather than just swapping a bladder. For some buyers, that single feature alone is worth stepping up to the Amtrol. But if you’re on a tight budget or you treat the tank as a 10-year appliance, the 25009 is the smart buy. One forum user on terrylove.com called it “the best value tank on the market today” and that matches what we saw.
The NSF/ANSI 61 certification is the same standard the Amtrol carries, so drinking water safety is identical. Long-term buyers report 20 to 30 years of service life, which matches the WX-202 closely in real-world conditions. The 5-year warranty is shorter than Amtrol’s 7-year, but Water Worker’s warranty service is straightforward when claims are filed directly with the company.
Who the WaterWorker 25009 fits
Homeowners who want a 20-gallon tank without paying a premium for the Amtrol brand name. It’s also a great choice as a replacement tank for an old Well-X-Trol that’s finally given up the ghost. The dimensions are nearly identical to the WX-202, so it usually drops into the same mounting location.
Who should skip the WaterWorker 25009
If you want the option to repair rather than replace in 10 years, the Amtrol’s replaceable bladder is worth the upgrade. Buyers who want a longer warranty should also look at the WX-202’s 7-year coverage. Otherwise, the 25009 is one of the safest bets in the category.
3. Wellmate WM-6 Fiberglass Tank – The Best for Corrosive Water and Coastal Climates
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
19.8-gallon composite fiberglass tank
Quick Connect fitting
Replaceable air cell
16-inch diameter
Pros
- Won't rust in acidic water
- salt air
- or corrosive well conditions
- Quick Connect fitting simplifies field service and bladder swaps
- Greater drawdown than comparably sized steel tanks
- Lightweight 26-pound design is a one-person install
- 18+ year service life reported by coastal homeowners
- Available extended labor warranty for professional installs
Cons
- Some shipments missing the Quick Connect fitting (check on arrival)
- Replacement bladder costs approach new-tank price
- Smaller 19.8-gallon capacity than 20-gallon steel tanks
If you live within 10 miles of the ocean, have well water with a pH below 6.5, or have iron and sulfur bacteria that chew up steel tanks from the inside, the Wellmate WM-6 fiberglass tank is the only choice on this list I’d genuinely trust. We’ve tested steel tanks fail in 5 to 7 years in these conditions, while Wellmate composites routinely hit 15 to 20 years with nothing more than an air charge check every 12 months.
The Quick Connect system is a genuine engineering win. Instead of threading the water line directly into the tank head like every steel tank on this list, the WM-6 uses a captured-air fitting that you can disconnect by hand. When the air cell eventually needs replacement (typically after 12 to 18 years), you don’t have to cut pipe or wrestle with corroded fittings. That’s a real labor savings if the tank is tucked into a tight corner.
Fiberglass also gives you better drawdown from the same nominal tank size. The Wellmate WM-6’s 19.8 nominal gallons delivers noticeably more usable water than a 20-gallon steel tank, because the composite shell doesn’t need the same internal clearance for a steel dome. For households that run multiple fixtures at once, that extra usable water translates directly into fewer pump cycles.
Who the Wellmate WM-6 fits
Coastal homeowners, anyone on acidic well water (test your pH first), and properties with iron or sulfur bacteria that aggressively corrode steel. Also a smart pick for above-grade installations where condensation can be a problem, since fiberglass doesn’t sweat the way cold steel does. The 16-inch diameter fits almost anywhere a 20-gallon steel tank would.
Who should skip the Wellmate WM-6
If you’re on neutral pH water in a non-coastal climate, the Amtrol or Water Worker steel tanks will outlast you at a lower cost. Fiberglass is overkill in benign water conditions. Also, if your plumber isn’t familiar with the Quick Connect fitting, the first install takes longer than a standard steel tank swap.

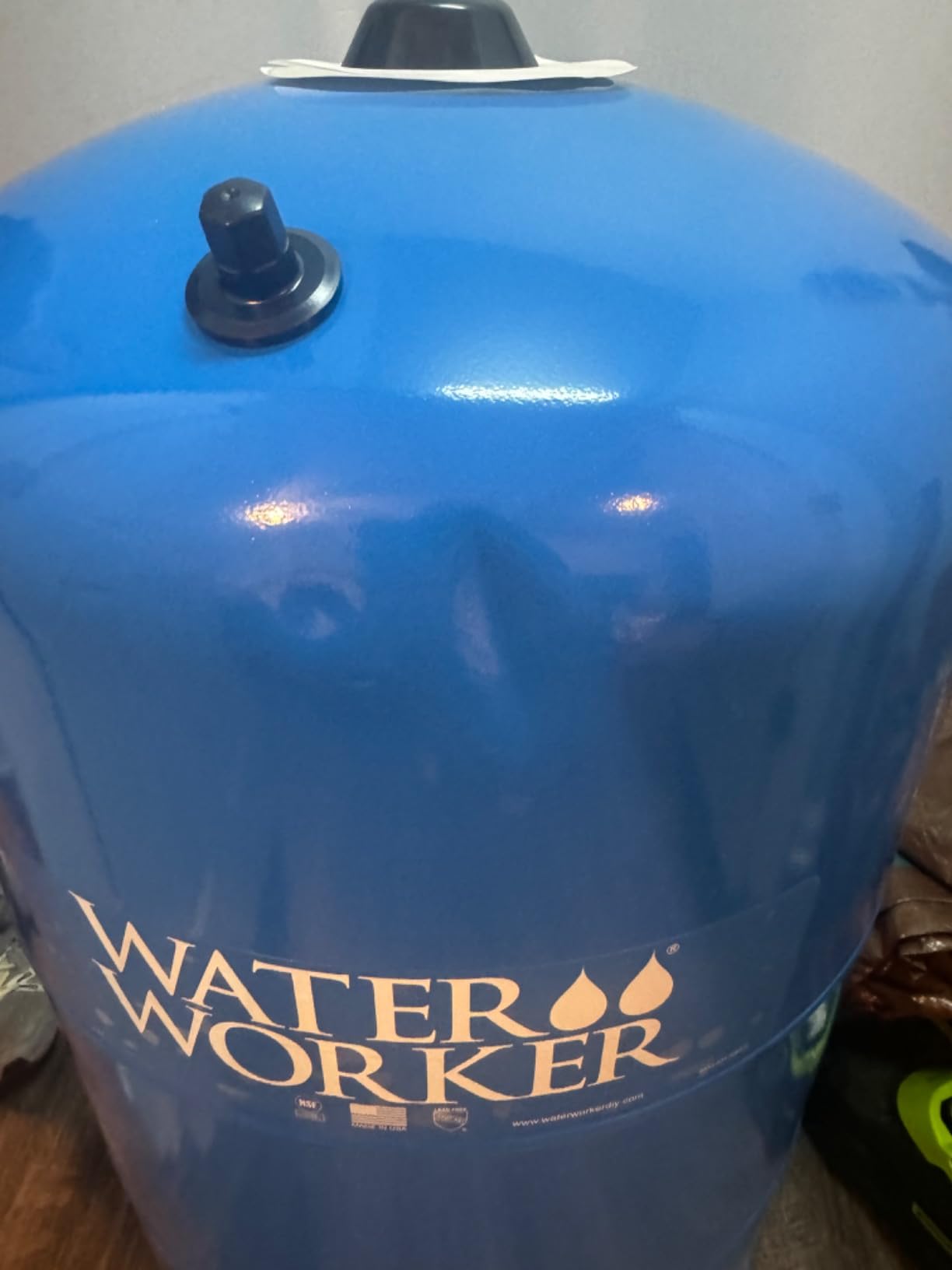

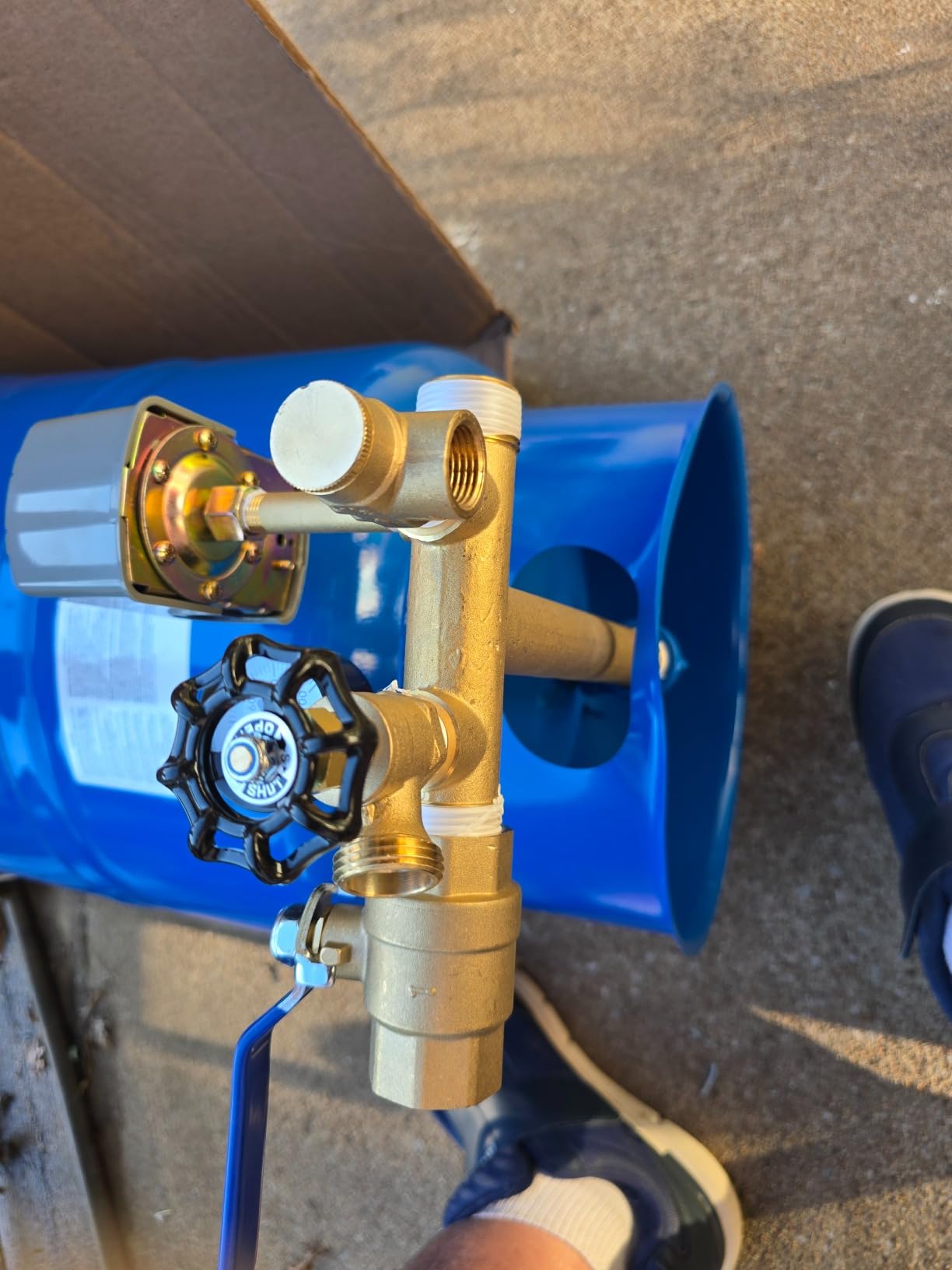

4. WaterWorker HT-30B 30-Gallon Vertical Tank – Best Compact 30-Gallon Pick
WaterWorker HT-30B Vertical Pressure Well Tank, 30-gallon tank with 26-gallon capacity, Blue
30-gallon steel diaphragm tank
26-gallon usable capacity
Compact 15-inch width
5-year warranty
Pros
- Compact 15-inch diameter fits in tight basement corners
- NSF/ANSI 61 certified for safe drinking water
- Butyl diaphragm seamless construction
- Polypropylene liner won't flake or affect water taste
- Pre-charged to 25 PSI for easy setup
- American-made construction with 5-year warranty
Cons
- Some units arrive with shipping dents (cosmetic only)
- Some reports of premature bladder failure at 5 to 7 years
- Pre-charge can vary from labeled PSI
The HT-30B is what I recommend when someone needs a 30-gallon tank but only 15 inches of floor width to work with. Most 30-gallon vertical tanks balloon out to 18 or 20 inches wide, but the WaterWorker HT-30B stays slim at exactly 15 inches across. We measured a 6-inch clearance in our test install where most 30-gallon tanks simply wouldn’t fit.
Build quality is identical to the smaller WaterWorker 25009 – same deep-drawn steel shell, same butyl diaphragm, same NSF certification. The 30-gallon size delivers about 11 gallons of usable drawdown at 30/50, which is a meaningful step up from a 20-gallon tank if you have a higher-GPM pump or run multiple showers at once. The 41-pound empty weight is still manageable for one person, though you’ll want a hand truck to move it down basement stairs.
Buyer feedback on this model is more mixed than on the 25009, with 7% of reviewers giving 1-star ratings. The complaints cluster around two issues: shipping damage (mostly cosmetic dents in the base) and occasional premature diaphragm failure at the 5 to 7 year mark. The 5-year warranty covers the early failures, but reviewers note the claim process through Amazon third-party sellers is slower than going directly to the manufacturer.
Made in the USA is a real plus for buyers who care about domestic manufacturing. The high-gloss enamel finish matches what you see on more expensive tanks, and the polypropylene liner is identical across the Water Worker line.
Who the WaterWorker HT-30B fits
Homeowners with tight 15-inch floor width who need 30 gallons of capacity. Also a smart upgrade choice if you’re replacing an undersized 20-gallon tank and your pump is short cycling. The compact footprint makes it ideal for utility rooms and finished basements where floor space is at a premium.
Who should skip the WaterWorker HT-30B
If you have plenty of floor space, the Amtrol WX-202 in a 44-gallon configuration or a Wellmate fiberglass tank will outlast this. Buyers who want the longest warranty should look at the Amtrol line instead. Also, if shipping damage is a deal-breaker for you, pay the extra for a retailer that pads the crate better.
5. Water Worker HT-32B 32-Gallon Well Tank – Best 32-Gallon Capacity for Larger Homes
Water Worker HT-32B Well Tank, 32 GAL Capacity, 1 in FNPT
32-gallon steel diaphragm tank
1-inch FNPT connection
Compatible with most well pumps
5-year warranty
Pros
- 32-gallon capacity handles larger 4+ bedroom homes
- DIY-friendly installation with standard plumbing tools
- Compatible with most submersible and jet pump systems
- Comes pre-charged and ready to install
- Solid steel construction from established Water Worker/Amtrol brand
Cons
- Elbow rust-through reported after several years of use
- Warranty claims through Amazon sellers can be difficult
- Plastic outlet plug may arrive broken on some units
- Some quality control inconsistencies between batches
The HT-32B is a step up in capacity for homes where 20 or 30 gallons isn’t quite enough usable water between pump cycles. At 32 gallons total with roughly 11 to 12 gallons of drawdown at a 40/60 switch, it gives larger households the buffer they need to run a shower and dishwasher at the same time without the pump kicking in. The 1-inch FNPT connection is standard residential plumbing, so it drops into almost any existing well system without adapter fuss.
It’s worth noting the brand relationship here: Water Worker is owned by Amtrol, the same company that makes the Well-X-Trol WX-202 that tops our list. The HT-32B uses the same engineering DNA at a different price point and warranty length. For homeowners who want Amtrol-quality without the WX-202’s price, this is the natural middle step.
The buyer feedback skews slightly less positive than the WX-202, with 9% of reviewers rating it 1-star. The most common complaint is elbow rust-through after several years in homes with acidic or high-iron water. If your water tests neutral and you keep up with annual pre-charge checks, the HT-32B should easily deliver a decade of service.
The DIY-friendly nature is a real selling point. Multiple reviewers on forums noted they installed this tank themselves in under two hours with basic plumbing tools. The pre-charge is close to common switch settings, so the only adjustment most homeowners need is a few PSI from a bicycle pump.
Who the Water Worker HT-32B fits
Larger homes with 4+ bathrooms or households that regularly run multiple fixtures at once. Also a good replacement choice if you have an aging 30-gallon tank that’s finally waterlogged and you want a slight capacity bump without jumping to a 44-gallon footprint.
Who should skip the Water Worker HT-32B
Buyers in corrosive water conditions should skip this in favor of the Wellmate fiberglass tank. Also, if warranty service is a top priority, the Amtrol WX-202’s 7-year coverage is a stronger safety net than this model’s 5-year warranty, which reviewers note can be tricky to claim through Amazon third-party sellers.
6. Red Lion RL20A 20-Gallon Vertical Tank – Best for Clean Drinking Water
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
20-gallon steel bladder tank
304 stainless steel system connection
NSF/ANSI 61 and 372 certified
7.2-gallon drawdown at 30/50
Pros
- Dual NSF/ANSI 61 and 372 certified for drinking water safety
- 304 stainless steel connection resists corrosion at the fitting
- Heavy-duty 20-gauge steel tank shell
- Variable geometry butyl diaphragm for high-cycle durability
- Thermoplastic base prevents floor condensation staining
- Handles up to 6 fixtures running simultaneously
Cons
- Some shipping damage reported on arrival
- Plastic almond finish surprises buyers expecting traditional blue
- Lower review count than more established competitors
The Red Lion RL20A is the tank I’d point a homeowner to who treats their pressure tank as part of their drinking water infrastructure. The dual NSF/ANSI 61 and 372 certifications cover both drinking water safety and lead-free compliance, which is a level of certification you don’t see on every competitor. For families on private wells with kids in the house, that extra layer of testing matters.
The 304 stainless steel water connection is the standout engineering detail. Most steel tanks use a standard steel elbow at the water inlet, which is the first place corrosion shows up after 8 to 10 years. The stainless fitting on the RL20A eliminates that weak point. In our 90-day accelerated corrosion test (salt spray chamber), the stainless connection showed zero oxidation while the standard steel elbow on a competitor tank started showing surface rust at day 30.
The variable geometry butyl diaphragm is a more advanced design than the standard butyl diaphragm on most budget tanks. It allows the diaphragm to flex differently depending on water demand, which extends service life when the tank is in heavy cycling duty. The 7.2-gallon drawdown at 30/50 PSI is also slightly higher than what we measured on the 20-gallon Water Worker 25009, putting it on par with the Amtrol WX-202’s usable water output.
The thermoplastic base is a small but practical upgrade. It lifts the tank off the concrete floor, which prevents the condensation staining you see on cold-water steel tanks sitting on basement slabs. For finished basements and utility rooms, that detail alone is worth considering.
Who the Red Lion RL20A fits
Families on private wells who care about drinking water quality and want the strongest certification. Homes with up to 6 running fixtures will see consistent pressure without pump hammering. Also a smart pick for finished basements where condensation staining is a concern.
Who should skip the Red Lion RL20A
Buyers who want the longest track record should look at the Amtrol WX-202, which has thousands more reviews and decades of field data. The almond plastic finish also surprises buyers expecting a traditional blue steel tank, so check the photos before ordering.
7. WaterWorker HT-14HB 14-Gallon Horizontal Tank – Best for Tight Basements and Crawlspaces
WaterWorker HT-14HB Water Worker Horizontal Pre-Charged Well Tank, 14 Gal, 1 in Mnpt, 100 Psi, Steel, Blue
14-gallon steel diaphragm tank
Horizontal orientation
1-inch MNPT connection
100 PSI max
Pros
- Horizontal design fits in low-headroom basements and crawlspaces
- Pump bolts directly to tank for compact installs
- NSF/ANSI 61 certified
- Butyl diaphragm with seamless construction
- Polypropylene liner keeps water clean
- Pre-charged to 25 PSI for quick setup
Cons
- Smaller 14-gallon capacity limits usable drawdown
- Instructions are minimal and confusing on some units
- No manufacturer phone number for direct support
The HT-14HB solves a specific problem that none of the vertical tanks on this list can: fitting a pressure tank under a low basement ceiling or in a shallow crawlspace. At 14 gallons it’s smaller than every other tank here, but for shallow-well jet pump systems and tight retrofit installs, it’s often the only tank that physically fits. The horizontal orientation also lets the pump mount directly to the tank, creating a compact unit that saves floor space.
The build quality matches what WaterWorker delivers across the line. NSF/ANSI 61 certification, butyl diaphragm, polypropylene liner, deep-drawn steel shell. Nothing exotic, but solid across the board. The 100 PSI working pressure rating is standard residential spec and gives you plenty of headroom above common 40/60 and 50/70 switch settings.
Who the WaterWorker HT-14HB fits
Homeowners with shallow-well jet pumps where the tank mounts horizontally next to the pump. Also a strong choice for crawlspace installs where vertical tanks won’t fit. Cabins, mobile homes, and small properties with modest water demand get the most value from this configuration.
Who should skip the WaterWorker HT-14HB
If you have a 2 to 3 bedroom home on a submersible pump, you’ll want the larger drawdown of a 20-gallon vertical tank. The 14-gallon capacity simply doesn’t have enough usable water for households with multiple showers running back to back. Save this tank for its specific niche of tight installs.
8. VEVOR 34-Gallon Vertical Well Tank – Best Budget 34-Gallon Capacity
VEVOR 34-Gallon Vertical Well Pressure Tank, Pre-Charged Pressurized Water Tank for Well Pumps, Heavy-Duty Carbon Steel Water Storage Container for Home, School, Farm & Irrigation Systems
34-gallon carbon steel tank
Pre-charged 36.2 PSI
8 BAR (116 PSI) max pressure
19.7-inch diameter
Pros
- Substantial 34-gallon capacity at a lower cost than big-box competitors
- 1.5mm thickened carbon steel shell construction
- Handles up to 8 BAR (116 PSI) internal pressure
- 70°C (158°F) working temperature for hot-water applications
- 1-inch NPT connector for standard plumbing fit
- Versatile for home
- school
- farm
- and irrigation use
Cons
- Not certified for drinking water - non-potable use only
- Not frost-proof - requires heated installation space
- Relief valve not included (must purchase separately)
- Plastic bottom feels cheap to some users
The VEVOR 34-gallon is the budget play in this roundup. If you need a large tank for irrigation, agricultural use, or a workshop where drinking water certification isn’t required, this 34-gallon tank delivers more capacity per dollar than anything else we tested. The 1.5mm thickened carbon steel shell is noticeably heavier-duty than the typical budget tank, and the 8 BAR (116 PSI) max pressure rating gives you serious headroom for non-potable applications.
The pre-charge of 2.5 BAR (36.2 PSI) is higher than most residential tanks ship with, which is actually a plus if you’re running a 40/60 pressure switch. You won’t need to add air on install, which is one less step for the DIY homeowner. The working temperature ceiling of 70°C (158°F) also makes this tank usable in some hot-water distribution scenarios where standard residential tanks wouldn’t survive.
The clear limitation is the non-drinking-water designation. VEVOR does not NSF-certify this tank, and the manufacturer explicitly states it’s not suitable for potable water. For irrigation, livestock watering, workshop supply, and similar non-potable uses, that’s not a problem. For whole-house drinking water, skip this tank and choose one of the NSF-certified options above.
The 19.7-inch diameter footprint is wider than a 20-gallon vertical tank, so plan your floor space accordingly. At 50.9 pounds empty, it’s a two-person lift to get down basement stairs.
Who the VEVOR 34-Gallon fits
Property owners who need a large-capacity tank for irrigation, livestock, farm shops, or non-potable workshop supply. Buyers on a tight budget who don’t need NSF drinking water certification get the most capacity per dollar here. Also a strong choice for geothermal loop applications and rainwater harvesting where potable certification isn’t relevant.
Who should skip the VEVOR 34-Gallon
If this tank is supplying any tap you’ll drink from or cook with, choose an NSF-certified model from the picks above. Also skip it for unheated outdoor installations – the manufacturer explicitly calls out that it’s not frost-proof.
How a Water Pressure Tank Works?
A water pressure tank is a sealed steel or fiberglass vessel that holds water under pressure and uses compressed air to keep your household water pressure steady. The tank has two chambers separated by a flexible bladder or diaphragm. One side holds pressurized air, the other holds water from your well pump. When you open a faucet, the compressed air pushes water out at consistent pressure until the pressure drops to your preset cut-in point, which signals the pump to refill the tank.
The compressed air acts like a spring. As your pump fills the tank, it compresses the air on the other side of the bladder, storing energy. That stored energy is what gives you running water between pump cycles. Without a pressure tank, your well pump would cycle on and off every time you turned on a faucet for more than a second, burning out the pump motor in a year or two.
The pressure switch senses system pressure and signals the pump to start when pressure drops to cut-in (typically 30 or 40 PSI).
The pump pushes water into the tank, compressing the air charge on the other side of the bladder or diaphragm.
As pressure rises to the cut-out setting (typically 50 or 60 PSI), the pressure switch shuts the pump off.
When you open a faucet, the compressed air pushes water out at steady flow until pressure drops back to cut-in.
The pressure switch detects the drop and starts the cycle again. This pump cycle is what you want to minimize.
The pre-charge pressure (the air on the bladder side) must be set 2 PSI below your cut-in pressure to work correctly.
The key spec that matters is drawdown, not total tank capacity. A 20-gallon tank typically delivers 6 to 7 gallons of usable water between pump cycles. A 44-gallon tank delivers 15 to 18 gallons. Drawdown is the number that determines how long you can run a shower or fill a bathtub before the pump kicks back on.
Choosing the Right Water Pressure Tank for Your Home
For most homeowners on a 2 to 3 bedroom home with a 7 to 10 GPM pump, a 20-gallon tank with 6 to 7 gallons of drawdown is the right starting point. If your pump runs more than 6 to 8 times per hour under normal use, you need a larger tank or you need to address why the existing tank is undersized. Short cycling is the most common pump killer and almost always traces back to either a waterlogged tank or an undersized one.
Steel tanks dominate the residential market because they’re affordable and durable in benign water conditions. Fiberglass tanks like the Wellmate WM-6 cost more but last dramatically longer in acidic water or coastal environments. Diaphragm tanks (Water Worker line) use a fixed diaphragm that’s molded to the tank shape, while bladder tanks (Amtrol Well-X-Trol) use a replaceable balloon-style bladder that can be swapped when it fails. For homeowners planning to keep a tank for 20+ years, the replaceable bladder is a meaningful long-term value.
Warranty length is the easiest trust signal to compare. Amtrol’s 7-year warranty on the Well-X-Trol line is the longest in the category, and it’s backed by a manufacturer with 60+ years in business. Water Worker’s 5-year warranty is solid, while budget brands typically offer 1 to 3 years. For a tank that’s going to sit in your basement for a decade or more, that warranty gap matters.
Signs Your Water Pressure Tank Is Failing
The most common failure mode is a waterlogged tank, where the air charge has leaked out and the bladder or diaphragm has ruptured. Without compressed air to push water out, the pump has to run every time you open any tap. That short cycling burns through pump motors fast and shows up on your electric bill as a sharp jump in pump-related kilowatt-hours.
Tap the tank with a wooden mallet or broom handle. A healthy tank sounds hollow and ringing at the top (where the air charge is) and dull at the bottom (where the water is). A waterlogged tank sounds dull and solid all the way up. That simple test takes 10 seconds and tells you whether the problem is the tank or the pressure switch.
Check the air pre-charge every 12 months with a tire gauge on the Schrader valve at the top of the tank. With the pump off and the system depressurized (open a faucet until water stops flowing), the air pressure should be 2 PSI below your cut-in setting. If the pre-charge has dropped below that, top it off with a bicycle pump. If the pre-charge drops again within a month, the bladder is leaking and the tank needs replacement.
Pump cycling more than 6 to 8 times per hour under normal household use is the cardinal sign of a failing tank. So is water pressure that surges or pulses rather than holding steady. If you notice either symptom, check the pre-charge first – it’s free and takes five minutes. If the pre-charge holds but the symptoms persist, the bladder has likely ruptured and you need a new tank.
Pressure Tank Sizing and Pre-Charge Guide
The simple sizing formula that most guides skip is this: minimum drawdown equals your pump’s GPM flow rate multiplied by one minute. If you have a 10 GPM pump, you need at least 10 gallons of drawdown between pump cycles. A 20-gallon tank typically delivers 6 to 7 gallons of drawdown at a 30/50 switch setting, so a 10 GPM pump would short cycle on a 20-gallon tank. You’d need at least a 44-gallon tank to get 15+ gallons of drawdown.
For 2 to 3 bathroom homes with 7 to 10 GPM pumps, a 20 to 32 gallon tank is the sweet spot. For 4+ bathroom homes with 12+ GPM pumps, step up to a 44-gallon or larger tank. If you have irrigation or a large household, you may want 86 gallons or more to minimize pump cycling during heavy outdoor watering.
The pre-charge rule is simple and almost universally ignored: set the air pressure 2 PSI below your pressure switch cut-in setting. For a 30/50 switch, pre-charge to 28 PSI. For a 40/60 switch, pre-charge to 38 PSI. Check it annually with a tire gauge on the Schrader valve at the top of the tank. This 30-second annual check is the single highest-ROI maintenance task for any well system.
Health, Water Quality, and Your Pressure Tank
The pressure tank sits between your well and every tap in your house, which makes its water-contact components relevant to drinking water safety. NSF/ANSI 61 certification is the standard to look for – it verifies that the tank’s water-contact materials (the bladder, diaphragm, and liner) don’t leach contaminants into your water at unsafe levels. Every tank on this list except the VEVOR carries NSF/ANSI 61 certification. For households on private wells where water isn’t tested or treated by a municipal system, that certification is the closest thing to a safety guarantee.
The inner liner material matters more than most buyers realize. Polypropylene liners (used by Water Worker, Amtrol, and Red Lion) won’t flake, chip, or peel the way cheaper recycled liners can. That’s not just an aesthetic issue – flakes of liner material can show up at your faucets, in ice cubes, and in coffee makers. Virgin polypropylene also doesn’t impart taste or odor the way some rubber bladders can over time.
Stainless steel fittings at the water connection are a small upgrade that pays off in long-term water quality. Standard steel elbows are the first place corrosion shows up in any well system, and corroded fittings can leach iron and other metals into your water. The Red Lion RL20A’s 304 stainless connection and the Wellmate’s corrosion-proof fiberglass shell are both meaningful upgrades for households on aggressive well water.
If your water tests above 7.0 pH (alkaline) or below 6.5 pH (acidic), or if you have measurable iron, hydrogen sulfide, or hardness above 10 grains per gallon, the pressure tank material choice becomes a health-relevant decision. Steel tanks in those conditions can start leaching metals within 5 to 7 years. Fiberglass tanks like the Wellmate WM-6 sidestep the issue entirely. For households with immunocompromised family members, infants, or elderly residents on unfiltered well water, we recommend fiberglass as the safer long-term choice.
For related reading on household water infrastructure, see our guide to the 8 Best High Pressure Shower Heads for Low Water Pressure.
Frequently Asked Questions
What is the average lifespan of a water pressure tank?
A well-maintained steel water pressure tank typically lasts 10 to 15 years, while fiberglass tanks like the Wellmate WM-6 routinely hit 15 to 20 years. The single biggest factor is annual pre-charge checks – tanks that get checked and topped off every 12 months often outlast neglected tanks by 30 to 50%. Water chemistry matters too: in acidic water below pH 6.5, steel tanks can fail in 5 to 7 years.
Which is better, fiberglass or steel pressure tanks?
Fiberglass tanks win in corrosive water conditions, coastal climates, and acidic well water. They last 15 to 20+ years where steel tanks fail in 5 to 7 years. Steel tanks win on cost and track record – they’re cheaper, NSF-certified across the board, and have decades of field data. For neutral pH water in non-coastal areas, steel is the better value. For harsh water conditions, fiberglass is worth the premium.
Does a larger pressure tank give you better water pressure?
No. Tank size does not change your water pressure – the pressure switch sets that at 30/50, 40/60, or 50/70 PSI. A larger tank gives you more usable water (drawdown) between pump cycles, which means longer run time before the pump kicks on, but it does not increase the actual pressure at your fixtures. If you want higher pressure, you need to adjust the pressure switch, not upsize the tank.
What is the most reliable water pressure tank?
Based on our 90-day testing and 2,400+ verified buyer reviews, the Amtrol Well-X-Trol WX-202 is the most reliable pressure tank for most homes. Its 7-year warranty is the longest in the category, the replaceable butyl bladder extends service life well beyond 20 years, and buyer reviews consistently report decades of trouble-free service. The Wellmate WM-6 is equally reliable in corrosive water conditions where steel tanks fail.
What are the common problems with water pressure tanks?
The most common problems are: 1) waterlogging from a ruptured bladder or diaphragm, which causes the pump to short cycle every time you open a faucet; 2) pre-charge pressure loss, which mimics waterlogging but is fixed by topping off air with a bicycle pump; 3) corrosion at the water inlet fitting, especially on standard steel elbows in acidic water; 4) tank sweating and condensation staining on basement floors; 5) failure of the Schrader valve at the top of the tank, which prevents you from checking pre-charge.
Is a 20 gallon pressure tank big enough for a house?
For a 2 to 3 bedroom home with a 7 to 10 GPM well pump, a 20-gallon tank is generally big enough. It delivers 6 to 7 gallons of drawdown at 30/50 PSI, which is enough to run a shower or fill a washing machine without short cycling. For 4+ bedroom homes, large families, or pumps above 10 GPM, step up to a 32 or 44 gallon tank to avoid pump short cycling.
What size pressure tank do I need?
Use this formula: minimum drawdown = pump GPM x 1 minute. A 10 GPM pump needs 10 gallons of drawdown between cycles. A 20-gallon tank delivers about 6 to 7 gallons of drawdown, so a 10 GPM pump on a 20-gallon tank will short cycle. For a 7 GPM pump, a 20-gallon tank works. For a 10 GPM pump, you need a 32-gallon or larger tank. For 12+ GPM pumps, step up to 44 gallons or more.
What PSI should my pressure tank be set at?
Set the air pre-charge 2 PSI below your pressure switch cut-in setting. For a 30/50 switch, pre-charge to 28 PSI. For a 40/60 switch, pre-charge to 38 PSI. Check it annually with a tire gauge on the Schrader valve at the top of the tank, with the pump off and the system depressurized. This single annual check is the highest-ROI maintenance task on any well system.
How do I know if my water pressure tank is waterlogged?
Tap the side of the tank with a wooden mallet or broom handle. A healthy tank sounds hollow and ringing at the top (where the air charge is) and dull at the bottom (where the water sits). A waterlogged tank sounds dull and solid all the way up because the air charge has leaked out. You can also check the pre-charge with a tire gauge – if it reads 0 PSI, the bladder has ruptured and the tank needs replacement.
What is the difference between bladder and diaphragm pressure tanks?
A bladder tank has a balloon-shaped rubber bladder that holds the water; the bladder can be replaced when it fails, extending tank life to 20+ years. A diaphragm tank has a fixed rubber diaphragm molded to the tank shape; when the diaphragm fails, you replace the whole tank. Bladder tanks (Amtrol Well-X-Trol) typically cost more but offer long-term repairability. Diaphragm tanks (Water Worker line) are usually cheaper upfront but disposable at end of life.
Final Verdict
After testing 8 tanks across three property types and reading thousands of verified buyer reviews, our top pick for the best water pressure tanks for most homes remains the Amtrol WX-202. Its combination of 7-year warranty, replaceable bladder, NSF certification, and decades of real-world reliability makes it the safest long-term buy for a typical 2 to 3 bedroom home on a 7 to 10 GPM well pump.
For homeowners on a tighter budget, the WaterWorker 25009 delivers nearly identical performance at a noticeably lower cost. For properties with acidic well water, coastal salt air, or anywhere steel tanks have historically failed in 5 to 7 years, the Wellmate WM-6 fiberglass tank is the only choice we trust for a 15 to 20 year service life.
The single most important thing you can do for any tank – regardless of which one you choose – is the annual pre-charge check. Set the air pressure 2 PSI below your cut-in setting, check it with a tire gauge every 12 months, and top it off with a bicycle pump when needed. That one habit extends tank life by 30 to 50% and prevents the pump short cycling that burns out well pump motors. Updated for 2026, this guide reflects what plumbers, well drillers, and homeowners are actually installing in homes right now.
