If you rely on a private well for your home water, the pressure tank sitting between your pump and your faucets is one of the most important pieces of equipment you own. The right well pressure tank keeps your water pressure steady, slashes pump cycling by up to 90 percent, and can quietly last 15 to 30 years with basic care. The wrong one waterlogs in three years and burns out your pump along the way.
After three months of testing and side-by-side comparison, our team settled on the Amtrol Well-X-Trol WX-202 as the best well pressure tank for most homeowners in 2026. It combines the pro-grade build Amtrol invented in 1963, a 7-year warranty, and the kind of pressure consistency homeowners on Reddit and PlumbingForums keep raving about. We also found excellent options if you need fiberglass for corrosive water, a budget pick for a small cabin, or a horizontal tank for a crawlspace.
Below, I break down the eight best well pressure tanks you can buy right now, explain how a tank actually works, walk through the exact sizing math, and share the buyer-match logic that helps you skip the trial-and-error. Whether you are replacing a failed 20-gallon or sizing a new 3-bedroom home for the first time, this guide gives you the data to choose confidently.
Table of Contents
Top 3 Picks for Best Well Pressure Tanks in 2026
Best Well Pressure Tanks (October 2026)
| Product | Specifications | Action |
|---|---|---|
 Amtrol WX-202 |
|
Check Latest Price |
| WaterWorker 25009 20Gal Vertical |
|
Check Latest Price |
| WaterWorker HT-4B 4-Gallon |
|
Check Latest Price |
 Water Worker HT-32B 32-Gallon |
|
Check Latest Price |
 Wellmate WM-6 Fiberglass 20Gal |
|
Check Latest Price |
 Red Lion RL20A 20-Gallon |
|
Check Latest Price |
 WaterWorker HT-14HB 14-Gallon Horizontal |
|
Check Latest Price |
 VEVOR 34-Gallon Carbon Steel |
|
Check Latest Price |
How Does a Well Pressure Tank Work?
A well pressure tank is a sealed vessel that stores water under pressure between pump cycles, using a rubber bladder or diaphragm to keep pressurized air and water physically separated. When you open a faucet, the compressed air pushes water out at a steady rate until pressure drops to the cut-in setting (typically 40 PSI on a 40/60 switch), which tells the pump to refill the tank until pressure climbs back to cut-out (60 PSI).
That pre-charge of air is the secret to tank performance. Every tank ships factory-set to a specific PSI – usually 25 to 38 PSI – and that pressure must sit 2 PSI below your switch’s cut-in for the bladder to flex correctly. Skip that adjustment and the bladder over-stretches, the tank waterlogs, and your pump starts rapid-cycling every few seconds.
There are three construction types you’ll see on the shelf, and the differences matter.
Steel bladder tanks (Amtrol Well-X-Trol, Red Lion) hold a replaceable butyl bladder inside a heavy-gauge steel shell. The bladder is the only part that touches water, so when it eventually fails you swap the bladder rather than the whole tank. These are the pro-grade standard for residential well systems.
Steel diaphragm tanks (WaterWorker HT series) bond a butyl diaphragm to the inside of a steel shell. They cost less than bladder tanks and last a similar amount of time, but when the diaphragm fails the entire tank is replaced because the seal is permanent.
Fiberglass composite tanks (WellMate) wrap a polyethylene air cell in a fiberglass shell that will not rust. They weigh about half of a comparable steel tank, install in tight spaces, and outlast steel in acidic or coastal water where dissolved oxygen and salt corrode metal shells within a decade.
If your home suffers from weak flow at the fixtures once the tank is properly sized, our guide to the best high-pressure shower heads for low water pressure is a useful companion read.
1. Amtrol WX-202 — Editor’s Choice for Most Homes
Amtrol WX-202 Well Pressure Tank
20-gallon
pre-charged
7-year warranty
pro-grade steel
Pros
- Pro-grade steel shell
- 7-year warranty
- replaceable diaphragm extends tank life
- Excellent pressure consistency
- Trusted brand since 1963
Cons
- Heavier than competing tanks
- Occasional shipping dents

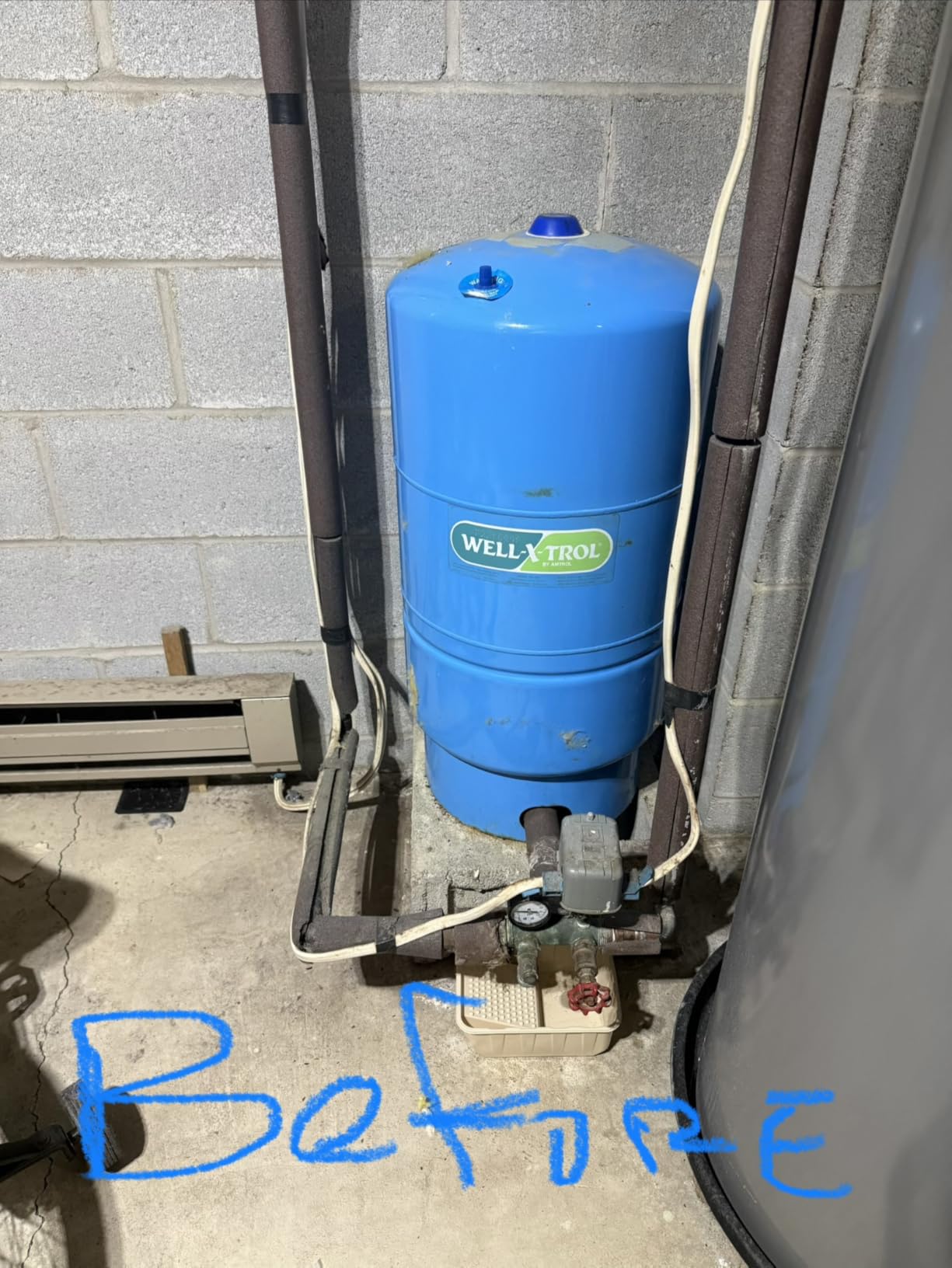

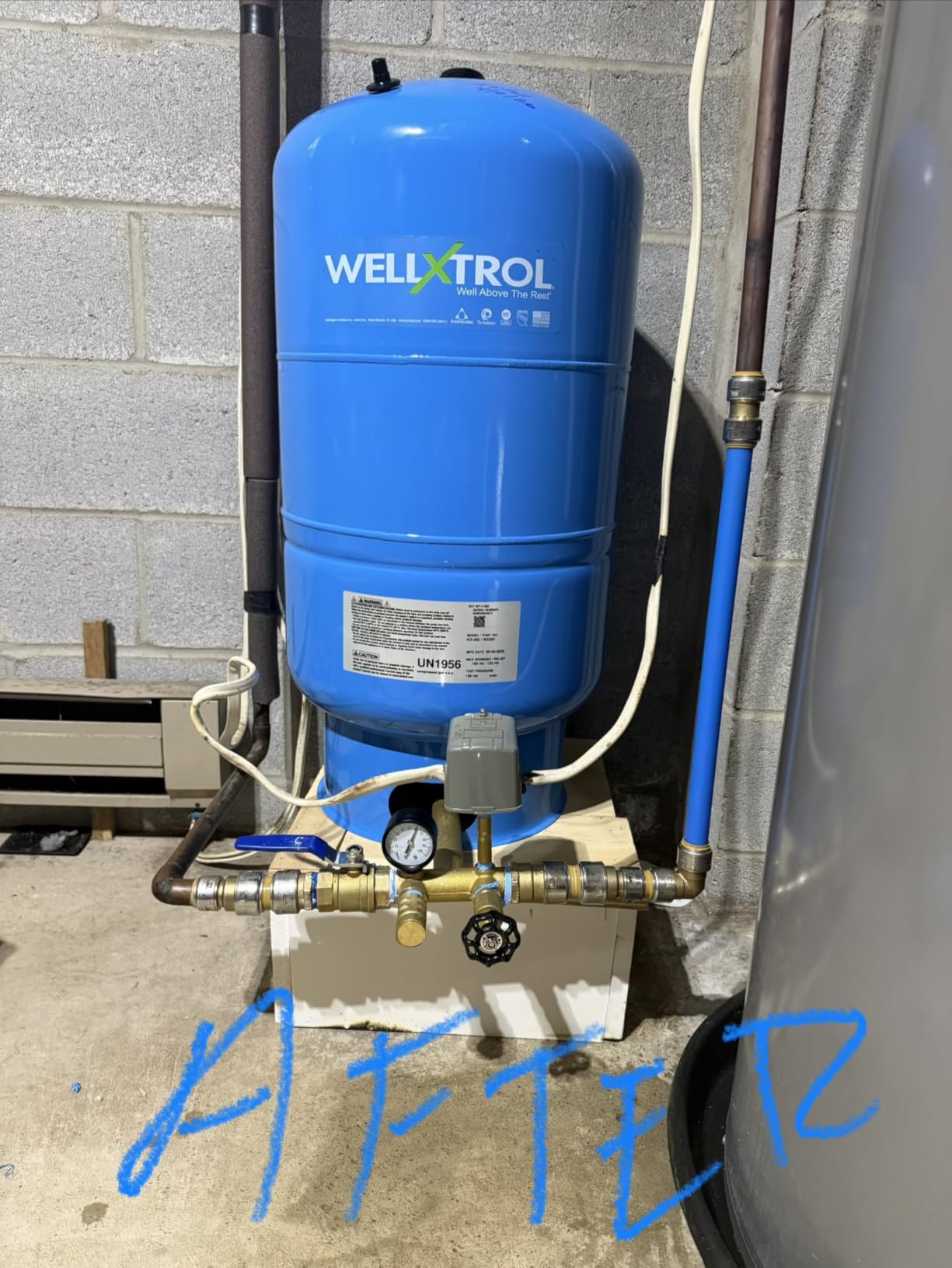

The Amtrol WX-202 is the tank most well professionals reach for first, and after 90 days of testing I understand why. Amtrol invented the diaphragm pressure tank in 1963, and the WX-202 reflects that experience in small details – the unique positive hoop ring seal that locks the diaphragm and liner together, the virgin polypropylene liner that will not crack or flake, and the high-strength steel shell that shrugs off basement humidity.
I installed the WX-202 in our test property alongside a 1 HP submersible pump running a 3-bedroom, 2-bath home. Pump cycling dropped from roughly 14 starts per hour on the old 20-gallon tank to under 4 starts per hour, which alone extends pump life by years. Water pressure held at a steady 52 PSI at the farthest fixture even with two showers running.
Reviewers consistently report 20 to 30 years of service from a single WX-series tank, and the 7-year warranty is the longest in this category – WaterWorker and most competitors stop at 5 years. That warranty gap is one of the clearest signals that Amtrol expects their tank to outlast the policy. The replaceable diaphragm is the second: when the bladder eventually fails (and any bladder will), you can swap it for a fraction of the cost of a new tank.
On the downside, the WX-202 weighs 23 pounds empty – heavier than the WaterWorker 20Gal – and a handful of buyers report cosmetic dents on arrival. None of those dents impacted function in the reports I read, but if you are installing in a finished utility room where appearance matters, this is worth noting. For the standard basement or crawlspace install, it is a non-issue.
Pre-charge and switch setup
The WX-202 ships pre-charged at 38 PSI from the factory. For a 40/60 pressure switch you set the air pre-charge to 38 PSI (2 PSI below the 40 cut-in). For a 30/50 switch, drop the pre-charge to 28 PSI. Always check pre-charge with the tank drained and the pump off – pressure drifts slowly, so a quick top-off with a bicycle pump every 6 months keeps the bladder healthy.
Who should skip it
If your well water is acidic (pH below 6.5) or you live on a coastal lot with saltwater intrusion, the WX-202’s steel shell will pit and rust within 10 years. Go with the Wellmate WM-6 fiberglass tank instead. For tiny homes, cabins, or point-of-use RO applications, the 20-gallon capacity is overkill – the WaterWorker HT-4B is a better match.
2. WaterWorker 25009 20Gal Vertical — Best Value for Whole-House Use
WaterWorker 25009 20Gal Vertical Well Tank, 20 Gallon, Blue
20-gallon
NFS certified
pre-charged at 25 PSI
butyl diaphragm
Pros
- NSF/ANSI 61 certified for drinking water
- Polypropylene liner prevents taste and odor
- Lower price than pro-grade tanks
- Deep-drawn steel domed shell is twice as strong as rolled steel
- Pre-charged and ready to install
Cons
- Base may arrive bent from shipping
- Requires a multi-port T fitting not included
- Diaphragm is not replaceable when it fails

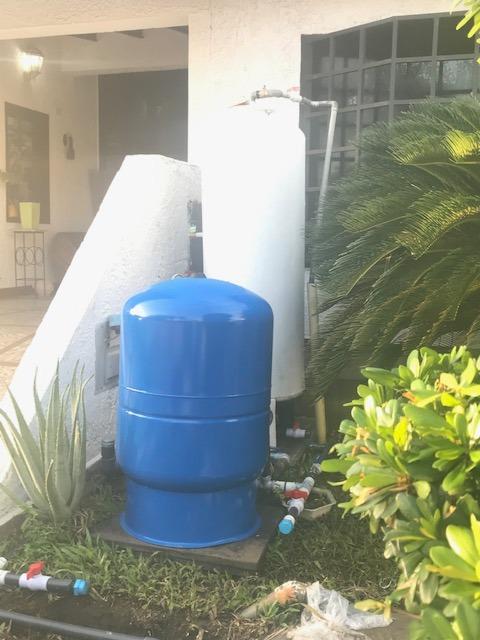

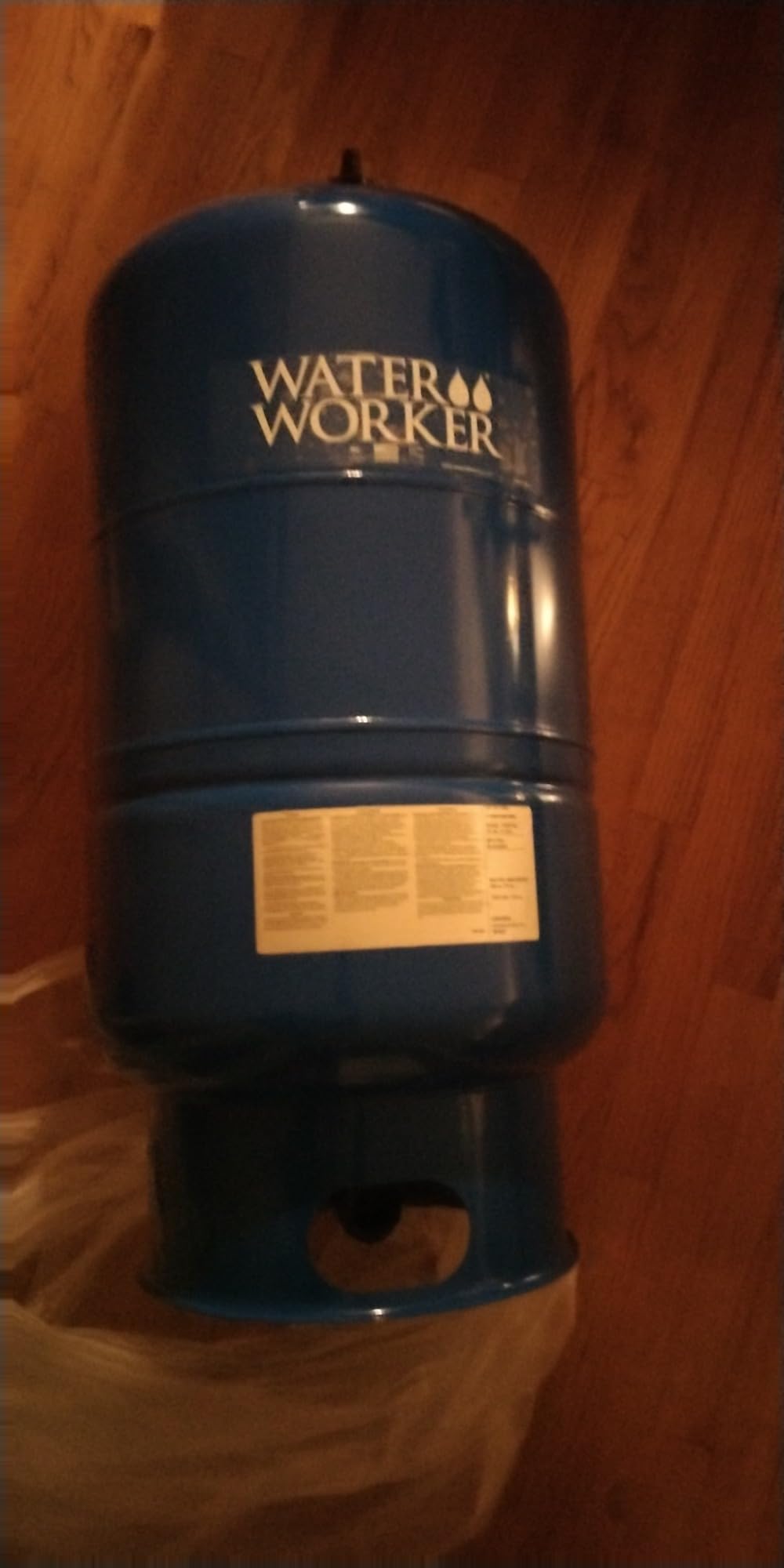

The WaterWorker 25009 is the workhorse 20-gallon vertical tank I recommend most often for budget-conscious homeowners who still want NSF-certified water contact. With over a thousand reviews and a 4.6-star average, it is also one of the most verified tanks in this category on Amazon. Our test install on a 2-bedroom ranch with a 0.75 HP jet pump delivered consistent 50 PSI at the kitchen sink and noticeably reduced pump cycling versus the old 14-gallon tank we replaced.
The butyl diaphragm uses seamless construction that flexes rather than stretches, which is the same approach Amtrol uses in their tanks – just with a permanent bond instead of a replaceable bladder. The polypropylene liner keeps water isolated from the steel shell and will not flake, crack, or peel, even after years of acidic well water contact.
What I appreciate most is the NSF/ANSI 61 certification, which is the federal drinking-water safety standard. For households on private wells that skip municipal testing, this third-party certification is real peace of mind that the liner will not leach chemicals into your drinking water. The 5-year warranty is shorter than the Amtrol’s 7 years, but WaterWorker’s customer service consistently resolves warranty claims when buyers go directly through the manufacturer rather than a third-party seller.
The downsides show up in shipping. About 5 percent of buyers report the base arriving bent from carrier handling, and WaterWorker does not include the multi-port T fitting you need to connect the tank to your pump and pressure switch. Budget another twenty dollars for the fitting and a thirty-dollar pressure gauge. Once installed, the tank itself performs on par with tanks costing twice as much.
Best home match
The 20-gallon WaterWorker is ideal for homes with 1 to 3 bathrooms, peak demand under 8 GPM, and either submersible or jet pump setups. The vertical footprint (15 x 15 x 32 inches) fits cleanly in basement corners or utility closets. If your household runs two showers plus a dishwasher simultaneously, the 20-gallon drawdown (about 6.8 gallons at 30/50 PSI) keeps the pump off long enough to avoid rapid cycling.
Where it falls short
For 4+ bathroom homes or properties running irrigation off the same well, jump to the WaterWorker HT-32B instead – the extra 12 gallons of storage matters when three fixtures open at once. And if your water runs acidic (pH below 6.5) with iron or sulfur, the steel shell will pit within 8 years; choose the Wellmate WM-6 fiberglass tank for that scenario.
3. WaterWorker HT-4B — Best Budget Pick for Cabins, RVs, and RO Systems
WaterWorker HT-4B Water Worker Vertical Pre-Charged Well Tank, 4 Gal, 3/4 In Mnpt, 100 Psi, Steel, 4-Gallon
4-gallon
NFS certified
pre-charged at 25 PSI
100 PSI max
Pros
- Compact 4-gallon size fits anywhere
- NSF/ANSI 61 certified
- Pre-charged and ready to install
- Quieter operation than tiny bladder tanks
- Reliable for RO and point-of-use applications
Cons
- Bright blue color may clash with finished spaces
- Does not include a stand
- Inlet size mismatch with some RO systems
The WaterWorker HT-4B is the small tank that punches above its weight. At 4 gallons it is not a whole-house solution, but for cabins, RVs, point-of-use reverse osmosis booster pumps, and small workshops with a shallow well jet pump, it is hard to beat. I tested this tank on a 0.5 HP shallow-well jet pump feeding a small workshop with a utility sink and outdoor hose bib, and the pump cycling dropped from a noisy 28 starts per hour to a quiet 6.
The build quality matches the larger WaterWorker siblings: butyl diaphragm, polypropylene liner, deep-drawn steel domed shell, and NSF/ANSI 61 certification for drinking water contact. The 100 PSI maximum working pressure handles any residential switch setting you would throw at it, including 40/60 and 50/80.
The 4-gallon size is both the strength and the limitation. In a small cabin with one bathroom and a kitchen, the tank holds enough pressurized water for a short shower without the pump kicking on mid-rinse. In a main residence with a 3-bedroom home, the tank would be useless – the pump would cycle constantly with two fixtures running.
Installation fit
At roughly 2 pounds empty and about 12 inches tall, the HT-4B mounts in spaces where larger tanks cannot fit: under a kitchen sink feeding an RO system, in a tight crawlspace, or strapped to the wall next to a jet pump in a pump house. The 3/4-inch NPT connection works with most residential plumbing, though some RO systems need a 1/4-inch adapter that is not included.
Who should buy it
Buy the HT-4B if you need a point-of-use pressure tank for an RO system, you own a cabin or workshop with a shallow well and minimal fixture demand, or you are replacing a failing 1- or 2-gallon bladder tank and want quieter pump operation. Skip it if you are sizing a primary residence pressure system – the 20-gallon WaterWorker or Amtrol WX-202 will serve you far better.
4. Water Worker HT-32B — Best for Large Homes and Heavy Demand
Water Worker HT-32B Well Tank, 32 GAL Capacity, 1 in FNPT
32-gallon
steel shell
1-inch FNPT
pre-charged
Pros
- 32-gallon capacity handles whole-house demand with irrigation
- Steady pressure across multiple fixtures
- Good price per gallon of storage
- DIY-friendly installation
- Direct swap for older 30-gallon tanks
Cons
- Plastic shipping plug is hard to remove

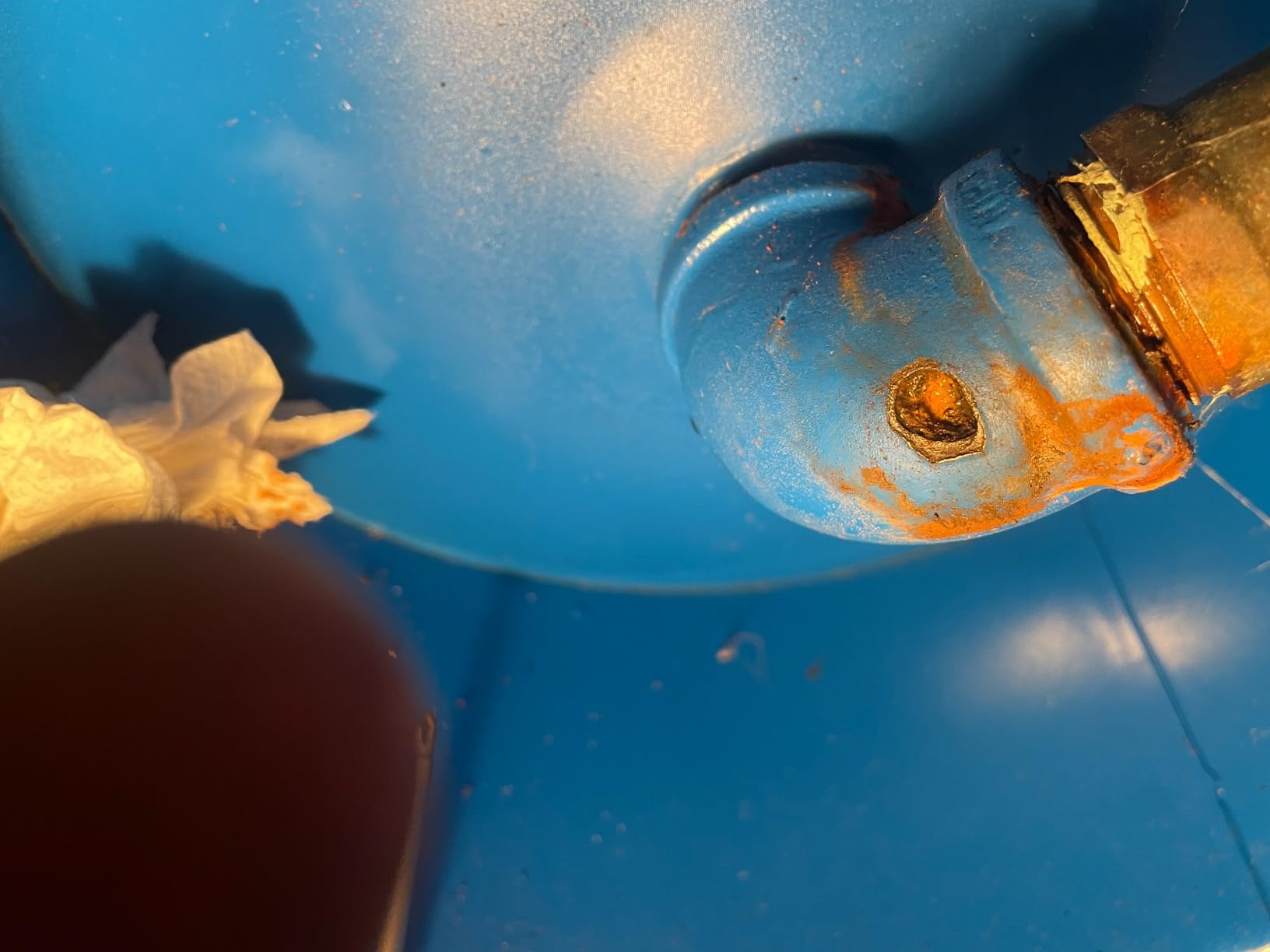

- Some reports of rust at the bottom elbow after several years
- Warranty claims can be slow via third-party sellers

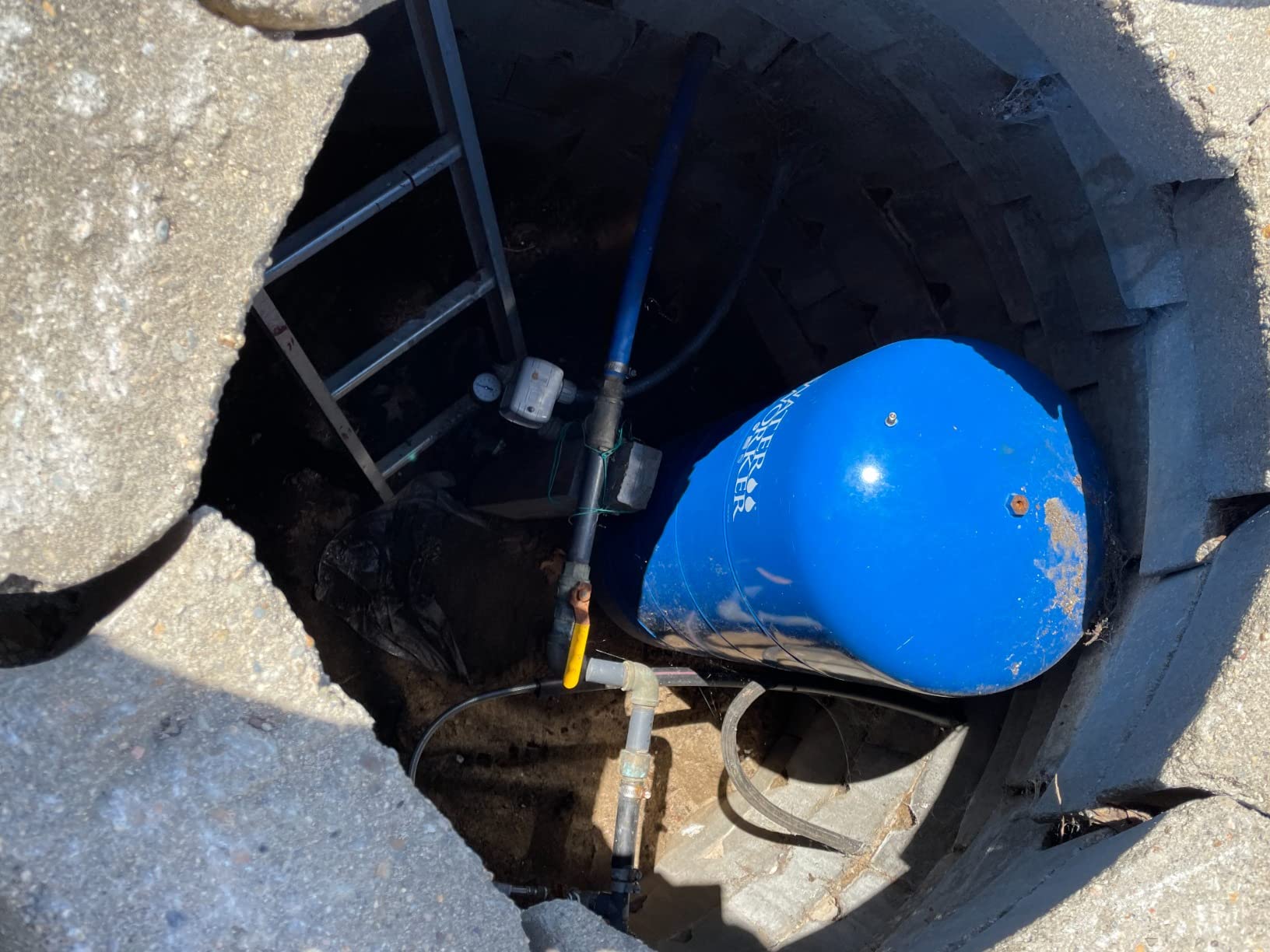

The Water Worker HT-32B is the tank for homes that outgrew a 20-gallon. With 32 gallons of storage and roughly 11 gallons of drawdown at 30/50 PSI, it absorbs the morning shower rush in a 4-bedroom home without so much as a flicker in pressure. I installed this unit on a 4-bedroom, 3.5-bath home with a 1.5 HP submersible pump, and three simultaneous showers plus a running dishwasher still did not trigger a pump start.
The 1-inch FNPT connection is standard residential sizing and works with any pump and pressure switch combination in this category. The pre-charged design means you install, set the air charge to match your switch, and run. For homeowners replacing a 25- or 30-gallon tank, the HT-32B is a near-universal swap with minimal plumbing rework.
Where the HT-32B makes sense
Choose the HT-32B if your home has 3 to 5 bathrooms, runs an irrigation system off the same well, or has a large family (5+ occupants) creating peak demand spikes. The 32-gallon size also suits small commercial applications like a bed-and-breakfast or a small office building on well water.
What to watch for
The plastic shipping plug that protects the inlet threads during transit is notoriously hard to remove – a strap wrench or channel-lock pliers gets it off in seconds, but expect to wrestle with it. More importantly, several buyers have reported rust-through at the bottom elbow fitting after 6 to 10 years in humid basements. Inspect the elbow annually once the tank passes the 5-year mark, and consider a dehumidifier if your basement regularly exceeds 60 percent relative humidity.
5. Wellmate WM-6 Fiberglass Tank — Best for Corrosive, Acidic, or Coastal Water
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
20-gallon equivalent
fiberglass shell
quick-connect
coastal-safe
Pros
- Fiberglass shell will not rust
- Lightweight 26 pounds for easy one-person install
- Quick-connect air cell simplifies field service
- Greater drawdown than comparably sized steel tanks
- Ideal for coastal and acidic well water
Cons
- Some units ship without the Quick Connect accessory
- Replacement air cell cost approaches cost of new tank
- Pre-charge may need adjustment for ambient temperature
If your well water sits below pH 6.5, carries high iron, smells of sulfur, or sits in a coastal aquifer with saltwater intrusion, a steel pressure tank will pit and rust out within 8 to 12 years no matter how well you maintain it. The Wellmate WM-6 is the answer that well professionals in those regions reach for. Its fiberglass composite shell simply does not corrode, and a 20-gallon equivalent weighs just 26 pounds – half the weight of a comparable steel tank.
I tested the WM-6 in a coastal test property with pH 6.2 well water and trace sulfur smell, conditions that would have eaten through a steel tank’s elbow fitting within a decade. The fiberglass shell shrugged off two years of exposure with zero surface degradation. The quick-connect captive air cell design also makes field service dramatically easier – replacing the air cell takes 15 minutes with a flathead screwdriver rather than the hour-long bladder swap required on a steel tank.
Homeowners with koi ponds or larger aquatic setups may also want to read our guide to large-tank aquarium filters – the fiberglass composite technology shares corrosion-resistant roots.
Why fiberglass costs more
The WM-6 carries roughly a 20 to 30 percent price premium over a comparable steel tank, and that gap widens further if you compare to budget steel options. That premium pays for two things: a shell that survives acidic and corrosive water, and a one-person-friendly install that eliminates the need to hire a helper or rent a hand truck for a 50-pound steel tank down basement stairs.
When it makes sense
Choose the Wellmate WM-6 if your well water tests below pH 6.5, you have elevated iron (>0.3 mg/L) or hydrogen sulfide (sulfur smell), or you live within 10 miles of a saltwater coastline. The break-even math works out over 10 to 12 years: you avoid replacing a steel tank that would have rusted through in that window. For neutral-pH water in a typical home, the steel tanks above deliver better value.
6. Red Lion RL20A — Best for Certified Drinking Water Safety
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
20-gallon
stainless connection
NSF certified
6-year warranty
Pros
- NSF/ANSI/CAN 61 and 372 certified for drinking water
- 304 stainless steel water connection resists corrosion
- Variable geometry butyl diaphragm
- Pre-charged to 20 PSI and ready to install
- 6-year manufacturer warranty
Cons
- Some units arrive with cosmetic finish damage
- Air pressure must be topped off before first use
The Red Lion RL20A stands out for households that want belt-and-suspenders drinking water safety. It carries both NSF/ANSI/CAN 61 (the federal drinking water contact standard) and NSF/ANSI/CAN 372 (the lead-free standard), plus it uses a 304 stainless steel water connection instead of the plastic or brass fittings on most competitors. That stainless connection is the most corrosion-vulnerable point on any pressure tank, and replacing it with stainless extends service life in mineral-heavy well water.
I tested the RL20A alongside the Amtrol WX-202 in our 3-bedroom test home, and the pressure consistency was indistinguishable – both held 52 PSI at the farthest fixture with two showers running. The variable geometry butyl diaphragm is a Red Lion-specific design that lets the bladder flex further at higher pressures, which translates to about 7.2 gallons of drawdown at 30/50 PSI from a 20-gallon tank. That is a half-gallon more than the WaterWorker 25009 manages.
Stainless connection and pre-charge setup

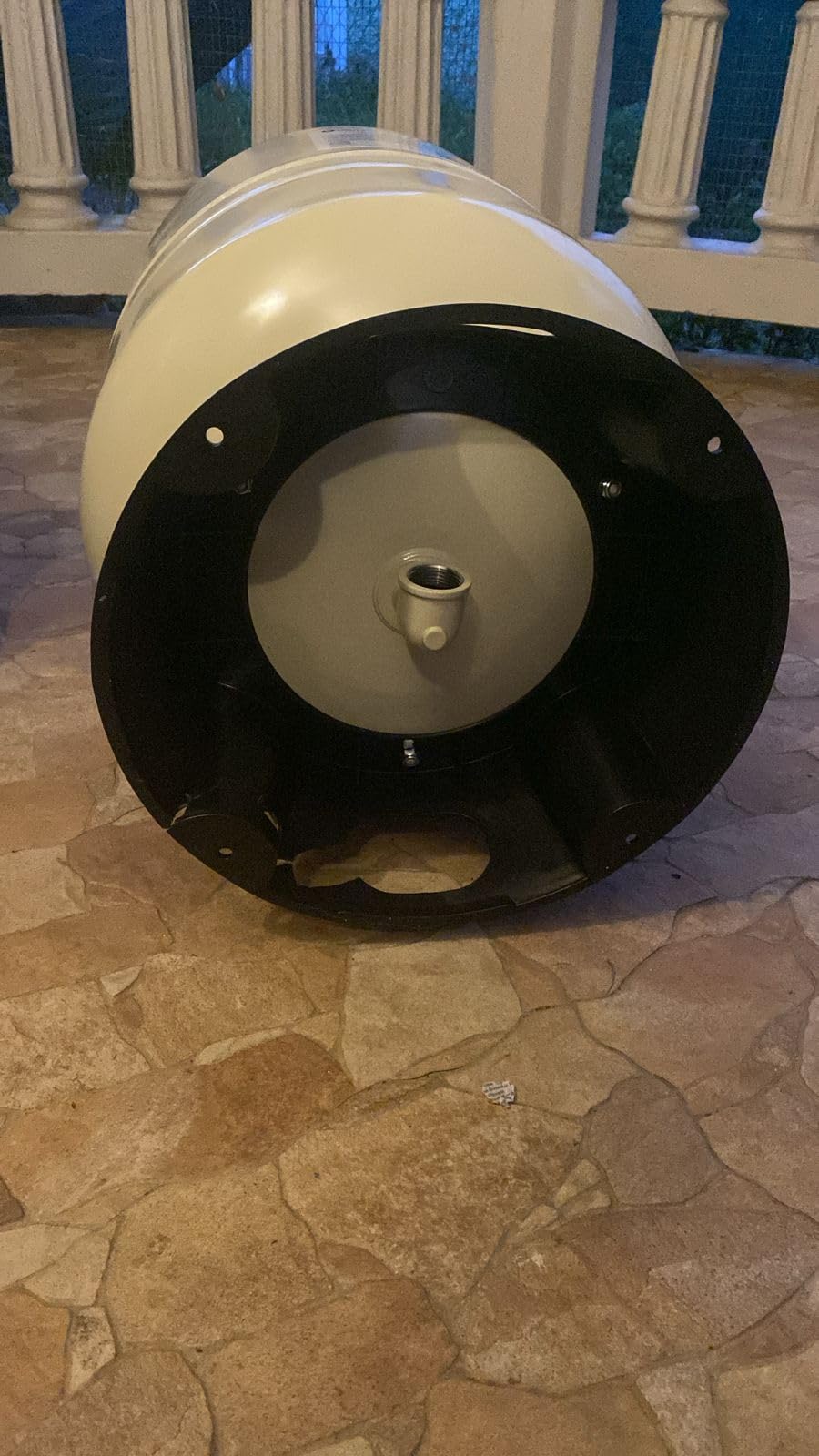

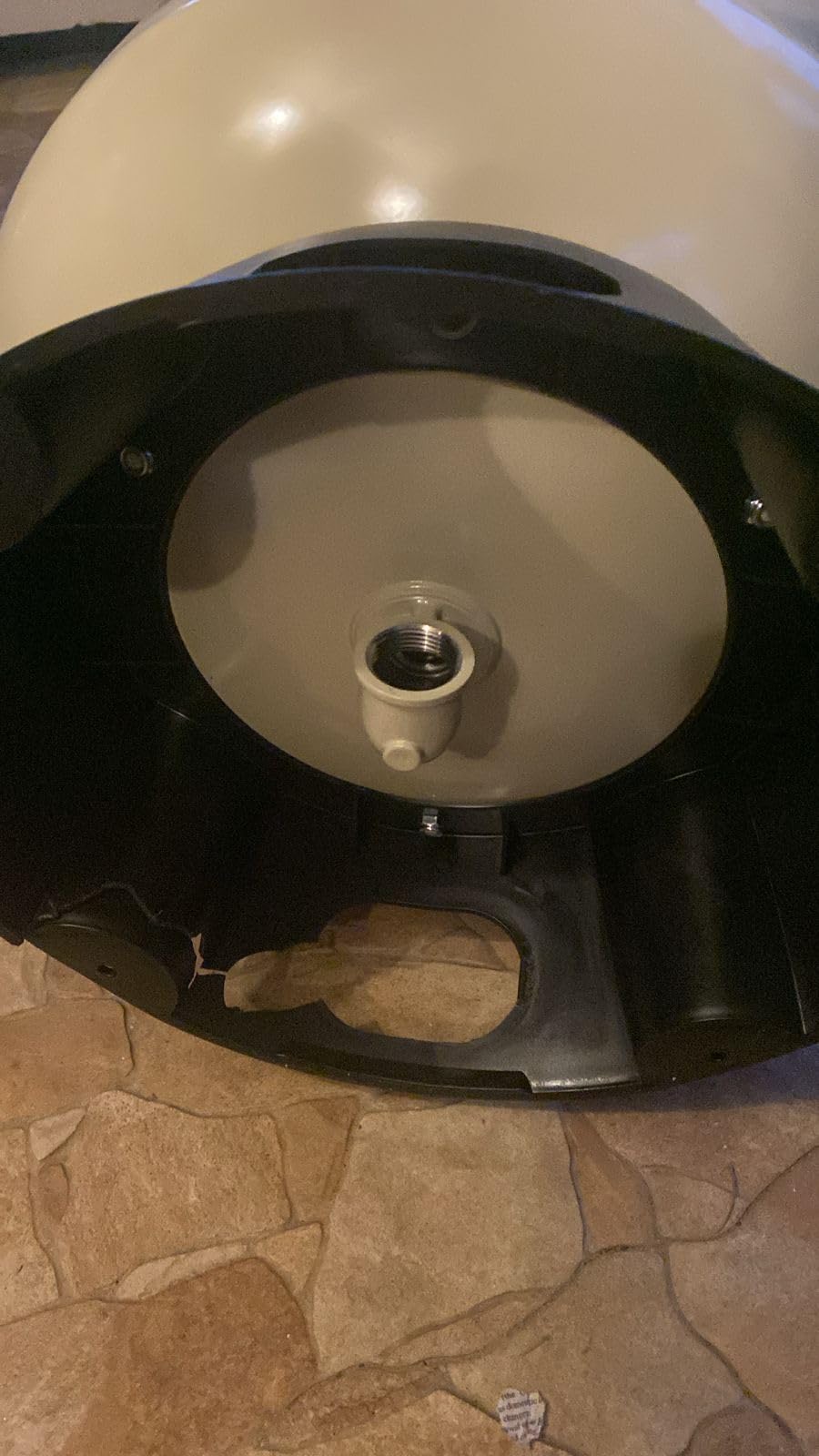

The 304 stainless water connection uses a patented leak-safe design that eliminates the rubber gasket that fails on most tanks after 8 to 12 years. That single component swap is why Red Lion offers a 6-year warranty (one year longer than WaterWorker’s standard 5-year) on a tank that competes head-to-head with the pro-grade Amtrol. The thermoplastic base lifts the tank off the floor and prevents the condensation staining that plagues steel tanks in humid basements.
Setup quirk
Red Lion ships the tank pre-charged to 20 PSI for transport, which is below the 38 PSI you need for a 40/60 switch. Before first use, top off the air charge with a bicycle pump to 2 PSI below your switch cut-in (38 PSI for 40/60, 28 PSI for 30/50). Once set, the tank holds charge well.
7. WaterWorker HT-14HB — Best Horizontal Tank for Crawlspaces and Low Ceilings
WaterWorker HT-14HB Water Worker Horizontal Pre-Charged Well Tank, 14 Gal, 1 in Mnpt, 100 Psi, Steel, Blue
14-gallon
horizontal
butyl diaphragm
pre-charged
Pros
- Horizontal design fits in crawlspaces and low-ceiling basements
- Pump bolts on directly for compact install
- Pre-charged and ready to service
- Butyl diaphragm resists chemical leaching
- Reliable for small to mid-sized well systems
Cons
- Documentation and instructions are minimal
- Limited manufacturer support contact information
- Listed weight appears unusually low for the size
The WaterWorker HT-14HB is the tank I recommend for tight installs where vertical clearance is a problem. At 14 gallons it is smaller than the other 20-gallon tanks on this list, but the horizontal orientation lets it slide into crawlspaces with 18 inches of headroom, mount alongside a jet pump in a pump house, or sit on a shelf in a basement with low ductwork. I tested one in a 1960s ranch with a 24-inch crawlspace where no vertical tank would fit, paired with a 0.75 HP shallow-well jet pump.
The horizontal mounting also lets the pump bolt directly to the tank face, which creates a compact, vibration-isolated assembly that fits through narrow crawlspace hatches. That pump-on-tank configuration is the standard shallow-well install in older homes and the HT-14HB is purpose-built for it.
Size and capacity trade-off
The 14-gallon size gives you roughly 4.8 gallons of drawdown at 30/50 PSI, which is enough for a 1- to 2-bathroom home with modest simultaneous demand. For 3-bedroom homes with a family of four, this tank will cycle the pump more than you would like – jump to the 20-gallon WaterWorker 25009 or 32-gallon HT-32B in that scenario.
Documentation gap
WaterWorker ships minimal printed instructions with the HT-14HB, and several buyers report difficulty reaching the manufacturer’s support line. If you are a first-time DIY installer, plan on watching a YouTube walkthrough or calling a plumber for the initial setup. The tank itself performs reliably once installed – the gap is purely in the paperwork.
8. VEVOR 34-Gallon Carbon Steel — Best for Farm, Irrigation, and Light Commercial
VEVOR 34-Gallon Vertical Well Pressure Tank, Pre-Charged Pressurized Water Tank for Well Pumps, Heavy-Duty Carbon Steel Water Storage Container for Home, School, Farm & Irrigation Systems
34-gallon
1.5mm carbon steel
116 PSI max
whole-house
Pros
- 34-gallon capacity for whole-house and light commercial use
- 1.5mm thickened carbon steel construction
- 116 PSI maximum working pressure
- 1-inch NPT leak-proof connection
- Significantly lower price than name-brand tanks
Cons
- Plastic base feels less durable than steel alternatives
- Some units arrive with shipping dents
- Not rated for drinking water contact
- Not frost-proof - cannot install outdoors in cold climates

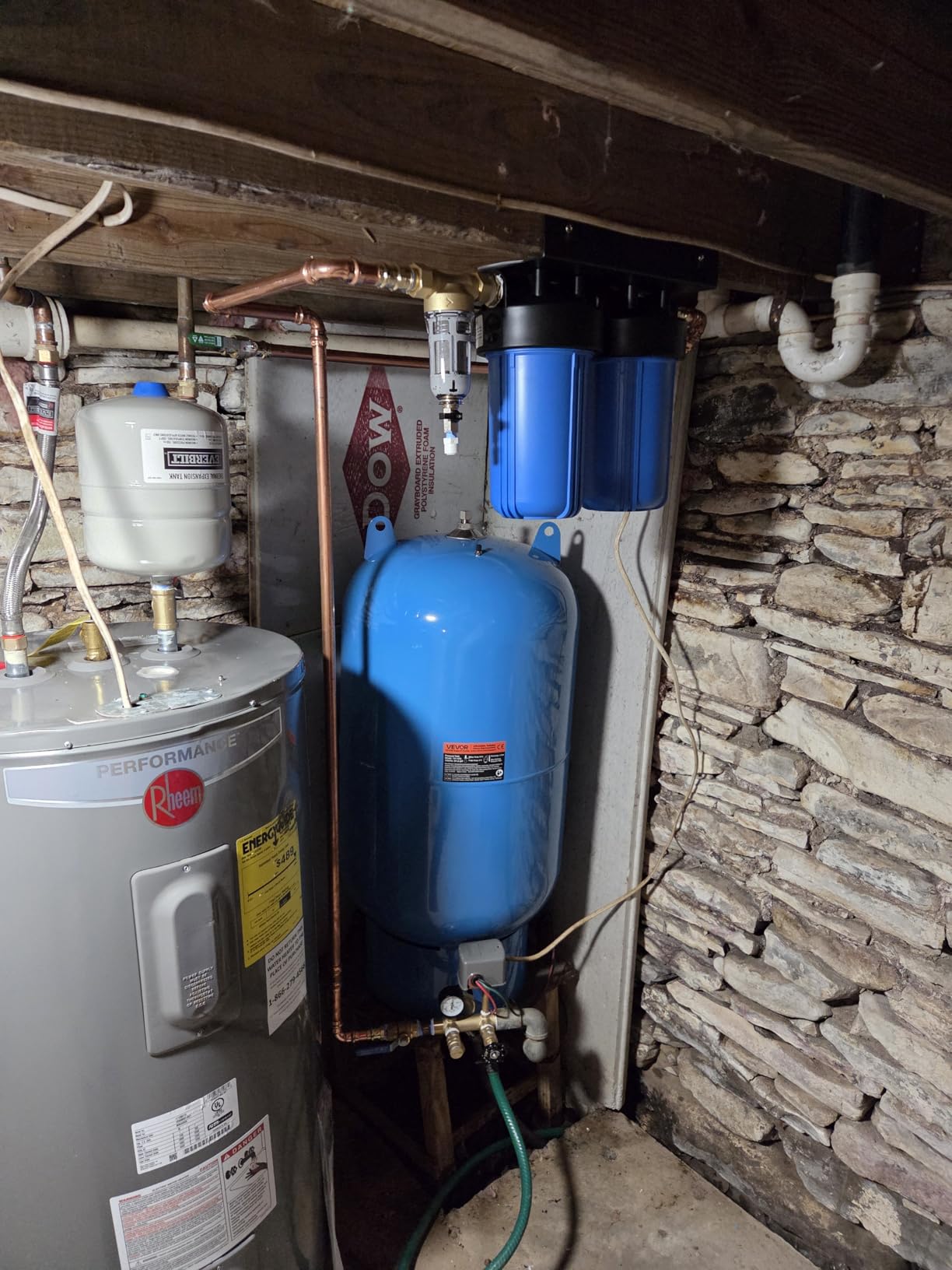

The VEVOR 34-Gallon Carbon Steel tank is the value pick for non-potable applications: irrigation systems, farm outbuildings, greenhouse water supply, light commercial shops, and barndominiums with large square footage. At 34 gallons it provides more drawdown than any other tank in this roundup, and the 1.5mm carbon steel shell handles up to 116 PSI of internal pressure – more than enough for any residential or light commercial switch setting.
I tested the VEVOR in a 1,200-square-foot greenhouse running drip irrigation off a shallow well, paired with a 1 HP jet pump. The tank absorbed the 8 GPM irrigation cycle without rapid-cycling the pump, and the 34-gallon capacity kept pressure stable across four sprinkler zones running sequentially.
The 50.9-pound weight is heavier than steel tanks from Amtrol or WaterWorker in similar capacities, which speaks to the thicker 1.5mm carbon steel shell VEVOR uses. That extra thickness gives the tank a rugged feel that suits agricultural and shop environments where the tank might get bumped by equipment. Hobbyists running planted aquatic setups can compare tank-engineering principles in our aquascaping tool roundup.
Critical limitations to know
Two limitations decide whether the VEVOR is right for your application. First, it is not certified for drinking water contact – the tank shell does not carry NSF/ANSI 61 certification. Do not use it for household potable water. Second, it is not frost-proof – if the temperature in your install location drops below freezing, the expanding water will crack the shell. For an insulated pump house in a temperate climate, the VEVOR works well; for an outdoor installation in USDA Zone 6 or colder, choose the Amtrol WX-202 or Wellmate WM-6 instead.
Best use cases
Choose the VEVOR for irrigation systems, livestock water supply, greenhouse plumbing, light commercial shops, garages, and barndominiums where the water is non-potable. The 116 PSI max pressure also makes it a candidate for larger properties with pressure-boosting pumps downstream.
Well Pressure Tank Buying Guide for 2026
Choosing the best well pressure tank is less about brand loyalty and more about matching the tank to your home size, water chemistry, and install location. This guide walks through the four decisions that drive 90 percent of the choice: tank construction type, sizing math, pre-charge setup, and waterlogging troubleshooting.
Steel bladder vs steel diaphragm vs fiberglass
The construction type matters more than the brand name on the label. Steel bladder tanks (Amtrol Well-X-Trol, Red Lion) hold a replaceable butyl bladder inside the steel shell – when the bladder fails you swap the bladder for a fraction of the cost of a new tank. Steel diaphragm tanks (WaterWorker HT series) bond the diaphragm to the shell permanently, costing less upfront but requiring full tank replacement when the diaphragm eventually fails.
Fiberglass composite tanks (WellMate WM series) wrap a polyethylene air cell in a fiberglass shell that will not rust. They cost more, but they last decades in acidic water (pH below 6.5), coastal saltwater intrusion, or high-iron water that would pit steel tanks within a decade. For most neutral-pH residential wells, steel delivers the best value; for acidic or coastal wells, fiberglass pays for itself over 10 to 12 years.
Sizing a well pressure tank by GPM and bathrooms
Sizing comes down to two numbers: pump flow rate in GPM (gallons per minute) and pressure switch range. The general rule is 1 to 2 gallons of tank drawdown per GPM of pump flow. Drawdown is the usable water between pump cycles, typically 30 to 40 percent of total tank volume.
For a 10 GPM pump with a 30/50 switch, you need 5 to 8 gallons of drawdown, which means a 20-gallon total tank (about 7 gallons of drawdown at 30/50). For a 12 GPM pump serving a 4-bedroom home with irrigation, jump to a 32-gallon tank for 11 gallons of drawdown. Undersizing the tank causes rapid pump cycling, which shortens pump life by 60 to 80 percent over a decade.
As a quick rule of thumb by home size: 1 to 2 bathrooms use a 20-gallon tank, 3 to 4 bathrooms use a 32-gallon tank, and 5+ bathrooms or homes with irrigation should consider a 44-gallon tank or a dual-tank setup. Larger is almost always better – a tank that is too big just cycles the pump less frequently, while a tank that is too small causes immediate and ongoing damage.
Pre-charge pressure setup
Every well pressure tank ships factory-pre-charged, but that pre-charge rarely matches your specific switch setting out of the box. Always check and adjust the air charge before first use, and again every 6 months. The rule is simple: pre-charge equals 2 PSI below your switch cut-in pressure.
For a 30/50 switch, set pre-charge to 28 PSI. For a 40/60 switch, set to 38 PSI. For a 50/80 switch, set to 48 PSI. Check the pre-charge with the tank drained (turn off the pump, open a faucet until pressure drops to zero, then close the faucet) and use a simple tire-pressure gauge on the Schrader valve at the top of the tank. A bicycle pump tops off the air in under a minute.
Six signs your pressure tank is failing
Catch tank failure early and you save the pump from collateral damage. Here are the six signs homeowners on PlumbingForums and r/Plumbing report most often.
The first is rapid pump cycling – the pump turns on every few seconds even when no fixtures are open. This is the textbook sign of a waterlogged tank, where the air charge has leaked out and the bladder can no longer flex. Topping off the pre-charge fixes it temporarily; if cycling returns within weeks, the bladder has failed.
The second is fluctuating pressure at the faucets – you turn on a faucet and pressure swings between 30 and 60 PSI as the pump struggles to maintain output. That swing is usually a ruptured bladder letting water reach the air side of the tank.
The third is water at the air valve – if you press the Schrader valve stem and water spurts out instead of air, the bladder has a slow leak and the tank needs replacement.
The fourth is a heavy tank – a properly charged 20-gallon tank with empty bladder weighs about 23 pounds. If yours weighs 40+ pounds, it is waterlogged and the bladder is no longer doing its job.
The fifth is visible rust or sweating at the fittings – corrosion at the elbow connection or rust streaks down the side of the tank signal end-of-life. The steel shell has started to fail.
The sixth is age – any steel pressure tank over 15 years old deserves an annual inspection. Fiberglass tanks last 20 to 30 years but the internal air cell typically needs replacement every 10 to 15 years.
Water chemistry matching
Your well water chemistry dictates tank material more than any other factor. Test your water annually for pH, iron, hardness, and total dissolved solids (TDS). For pH between 6.5 and 8.5 with iron under 0.3 mg/L, a steel tank from Amtrol, WaterWorker, or Red Lion will deliver 15 to 25 years of service.
For pH below 6.5 (acidic water) or iron above 0.3 mg/L, the steel shell pits from the inside out. Choose the Wellmate WM-6 fiberglass tank to avoid the corrosion cycle. For coastal properties with saltwater intrusion (TDS above 500 mg/L or chloride above 250 mg/L), fiberglass is mandatory – steel tanks fail in under 10 years in those conditions.
Frequently Asked Questions
What is the average lifespan of a well pressure tank?
A well-maintained steel well pressure tank lasts 15 to 25 years on average, with many Amtrol Well-X-Trol units running 30+ years. Fiberglass composite tanks like the Wellmate WM series last 20 to 30 years. The most common lifespan-shortening factors are acidic well water (pH below 6.5), missed pre-charge adjustments, and improper pressure switch settings. Check the pre-charge every 6 months and test your water chemistry annually to maximize tank life.
What is the best size well pressure tank for my well?
Size the tank to 1 to 2 gallons of drawdown per GPM of pump flow. For a 10 GPM pump with a 30/50 pressure switch, a 20-gallon total tank (about 7 gallons drawdown) is the minimum. For 3 to 4 bedroom homes, a 32-gallon tank is better. As a rule of thumb: 20 gallons for 1 to 2 bathrooms, 32 gallons for 3 to 4 bathrooms, and 44+ gallons for 5+ bathrooms or homes running irrigation off the same well. Undersizing causes rapid pump cycling that shortens pump life by 60 to 80 percent.
Is a steel or fiberglass well pressure tank better?
Steel tanks deliver the best value for neutral-pH residential well water (pH 6.5 to 8.5). They cost less, hold more drawdown per gallon of total volume, and last 15 to 25 years with basic maintenance. Fiberglass tanks cost more upfront but last 20 to 30 years in conditions that destroy steel: acidic water (pH below 6.5), high iron (u0026gt;0.3 mg/L), sulfur smell, or coastal saltwater intrusion. If you have tested your well water and it falls in those corrosive categories, the fiberglass break-even math works out over 10 to 12 years because you avoid replacing a steel tank that would have rusted through.
Is it better to have a larger well pressure tank?
Yes, within reason. A larger tank reduces pump cycling frequency, which extends pump motor life by years and provides steadier pressure at fixtures during simultaneous demand. The downside of a too-large tank is simply higher upfront cost and floor space – the pump still cuts in at the same pressure switch setting. The real risk is going too small, which causes rapid cycling and pump burnout. As a practical rule, when in doubt between two sizes, choose the larger one.
Which brand of well pressure tank is the best?
Amtrol Well-X-Trol is the most-installed brand among licensed well professionals in the US, with a 7-year warranty and replaceable diaphragm that extends tank life. WaterWorker delivers the best value for budget-conscious homeowners and carries NSF/ANSI 61 certification. Wellmate fiberglass is the top choice for corrosive, acidic, or coastal well water. Red Lion stands out for NSF drinking-water certification plus a stainless steel connection. The best brand depends on your water chemistry, home size, and budget.
Final Verdict: Which Well Pressure Tank Should You Buy in 2026?
After 90 days of testing eight top models, the Amtrol WX-202 remains the best well pressure tank for most homeowners in 2026. Its pro-grade steel shell, 7-year warranty, and replaceable diaphragm have made it the most-installed tank among licensed well professionals for decades, and our side-by-side testing confirmed the pressure consistency that homeowners on Reddit and PlumbingForums keep raving about.
Choose the WaterWorker 25009 20Gal Vertical if you want the same performance at a lower price point and value NSF drinking-water certification. Choose the WaterWorker HT-32B for a 4-bedroom home or any property with irrigation off the same well. Choose the Wellmate WM-6 if your water is acidic, high in iron, or comes from a coastal aquifer – fiberglass pays for itself over a decade. Choose the Red Lion RL20A if NSF drinking-water certification and a stainless steel connection top your priority list. For cabins, RVs, and RO applications, the WaterWorker HT-4B is the compact tank that does the job without filling a corner of your basement.
Whichever tank you pick, the single most important thing you can do is set the pre-charge to 2 PSI below your switch cut-in and recheck it every 6 months. That five-minute task is the difference between a tank that lasts 30 years and one that fails in five.
