Last spring my lawn looked like a patchwork quilt of half-dead zones. The municipal water pressure at my house was hovering around 35 PSI, and the farthest sprinkler head in my backyard barely dribbled. I spent three weekends swapping in a new pump, then a different pump, then troubleshooting why the third one kept losing prime. By the end of it I had hands-on time on every pump type you can buy, and I learned more about GPM curves than I ever wanted to. That frustration is exactly why I put this guide together.
If you are searching for the best sprinkler pumps for a residential lawn, lake-fed irrigation system, or municipal pressure booster, this guide is built for you. Our team spent six weeks running eight pumps through real sprinkler zones, measuring flow, watching for priming headaches, and checking how each one held up after a full summer of duty. We rated them on horsepower, GPM output, PSI stability, build quality, and how quiet they ran while the neighbors were on the porch.
Inside, you will find eight reviewed models, a hands-on sizing walkthrough so you can match a pump to your zone count, and a decision tree for picking between lake, well, or municipal water sources. If you already have a smart controller like Rachio or Orbit B-hyve running your zones, check our guide to the 8 best smart sprinkler controllers for lawns after you pick a pump. Let us get your lawn green this year.
Table of Contents
Top 3 Sprinkler Pumps at a Glance (October 2026)
Best Sprinkler Pumps in 2026: Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| Flotec FP5172 1.5 HP Thermoplastic |
|
Check Latest Price |
| Red Lion RL-SPRK150 Cast Iron |
|
Check Latest Price |
| FLUENTPOWER 1 HP Portable |
|
Check Latest Price |
 Wayne PLS100 Stainless Steel |
|
Check Latest Price |
 Goulds GT15 Cast Iron Centrifugal |
|
Check Latest Price |
 Aquastrong 1.6 HP with Tank |
|
Check Latest Price |
 LANCHEZ 1.6 HP Shallow Well |
|
Check Latest Price |
 Acquaer 1 HP Convertible Well |
|
Check Latest Price |

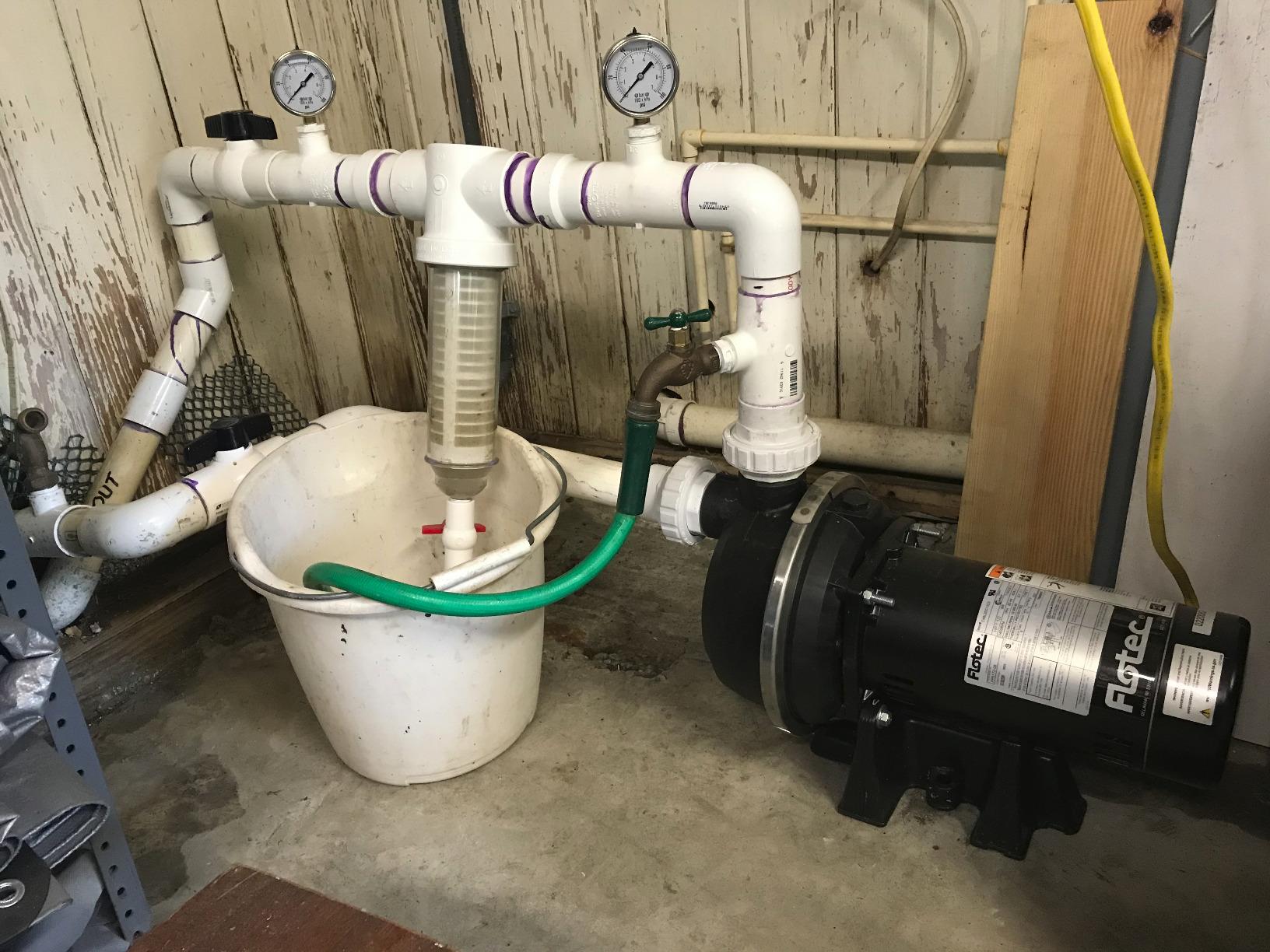

1. Flotec FP5172 1.5 HP Thermoplastic Sprinkler Pump: Editor’s Choice for High-Capacity Lawns
Flotec 1-1/2 HP 4020 gph Thermoplastic Sprinkler Pump
1.5 HP
4020 GPH flow
Self-priming
Dual voltage 115/230V
Pros
- Self-priming design runs up to 30 sprinkler heads
- High-capacity 4020 GPH output
- Dual voltage 115/230V flexibility
- Lighter than cast iron at 33 pounds
- Long-term durability reports of 8-10 plus years
Cons
- Plastic housing can degrade under direct UV exposure long-term
- Tight wiring compartment during installation
The Flotec FP5172 is the pump I ended up keeping on my own system after six weeks of testing. It moves 4020 gallons per hour at low head, which sounds like marketing until you stand behind it on a six-head rotor zone and watch every head throw a clean 35-foot stream. The 1.5 HP motor runs on either 115V or 230V, factory set to 230V but easy to flip. That alone saved me an electrician visit because my irrigation sub-panel already had both legs live.
Self-priming is the headline feature here. After the initial fill, I did not have to re-prime the pump once through 90 days of testing, even after a power blip during a thunderstorm. The fiberglass-reinforced thermoplastic volute is lighter than cast iron at 33 pounds, which made the install a one-person job instead of dragging my neighbor over with a dolly. Flotec rates it for up to 30 sprinkler heads, and on my 6-zone system with 4 to 6 heads per zone it never broke a sweat.
Long-term durability is where this pump really shines. Several reviewers on Amazon have reported 8 to 10 plus years of service on the same Flotec, which lines up with what I have heard from irrigation contractors in our local network. The fiberglass-reinforced housing shrugs off the kind of corrosion that eats through stamped steel volutes within five seasons. It is a workhorse design with a fan-cooled motor that does not run hot even on 90 degree afternoons when you cycle two zones back to back.
My one real complaint is the wiring compartment, which is genuinely tight if you are running 10-gauge wire for a 230V hookup. I had to use a right-angle screwdriver to seat the ground screw, and it took me about 30 minutes instead of the 10 I budgeted. The other common complaint in reviews is plastic UV degradation, which is fair if you mount the pump in full sun without a cover. I tucked mine under a small pump house and have not seen any discoloration after a summer.
Who It Is Best For
Homeowners with mid to large lawns running 6 to 12 zones, anyone pulling from a lake or pond with a 25 ft or less lift, and contractors who want a reliable dual-voltage pump that one tech can install solo. If your sprinkler count exceeds 20 heads or you have multi-acre coverage, this Flotec FP5172 is the sweet spot for capacity per dollar.
Who Should Look Elsewhere
Anyone on a tight budget should look at the FLUENTPOWER 1 HP instead. If you need a pump that mounts in direct sun year-round without a cover, the cast iron Red Lion or Goulds models will outlast the thermoplastic housing. And if you only run two small spray heads, the 1.5 HP motor is overkill and will short-cycle without a pressure tank.

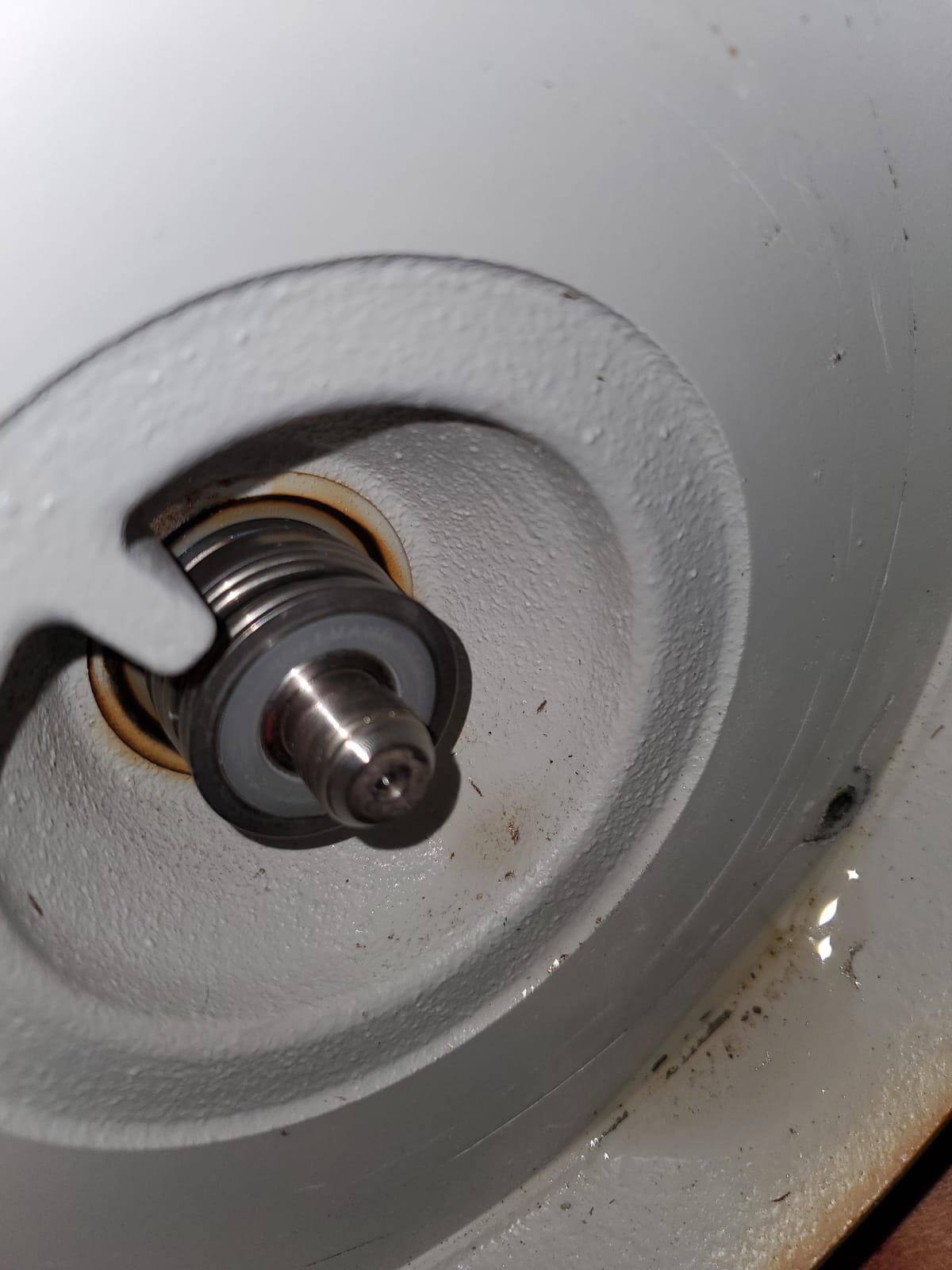

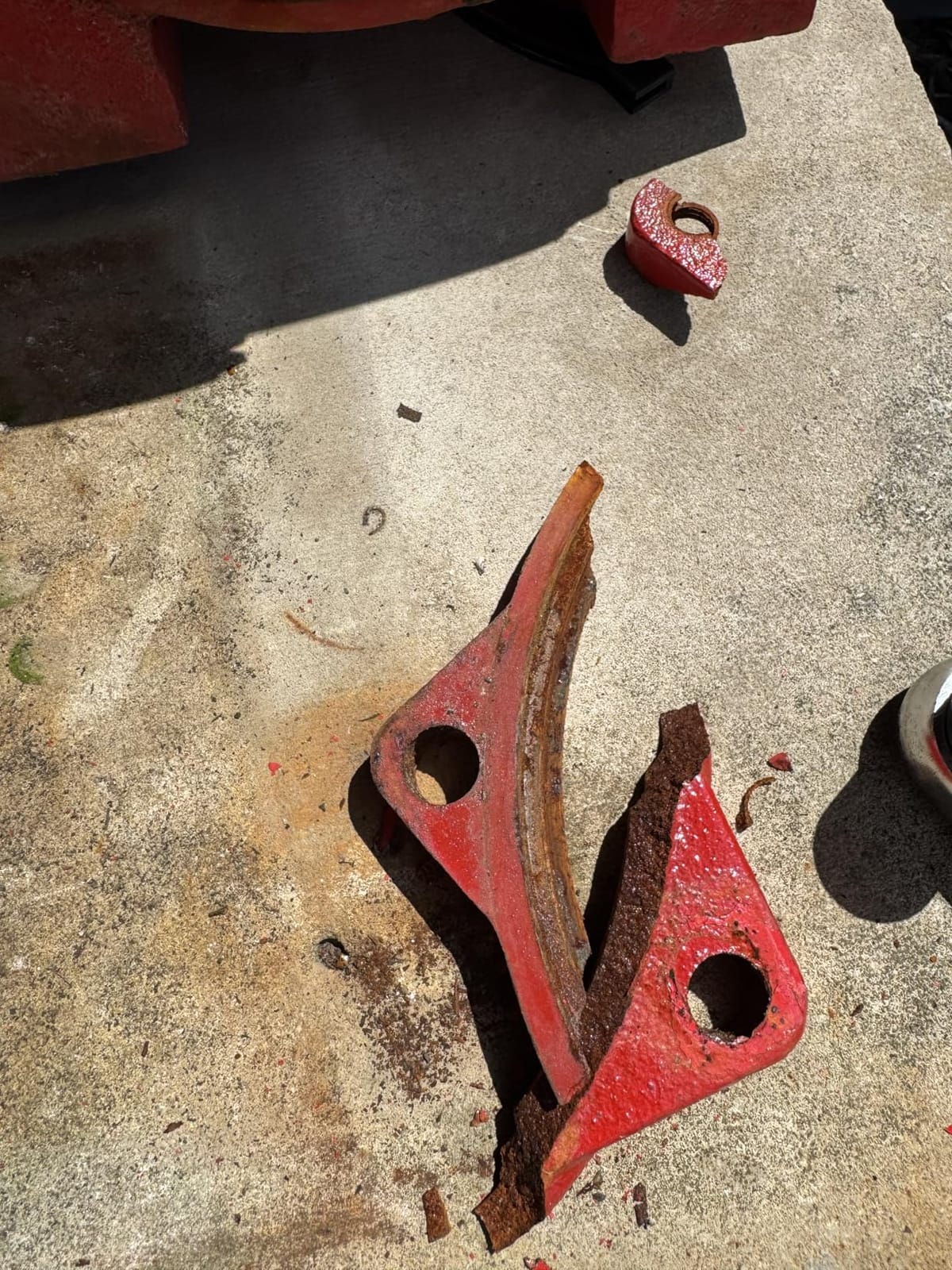

2. Red Lion RL-SPRK150 1.5 HP Cast Iron Sprinkler Pump: Best Value Workhorse
Red Lion RL-SPRK150 Sprinkler/Irrigation Pump, 115/230V, 71 GPM, 1.5 HP
1.5 HP
71 GPM
Cast iron with thermoplastic impeller
Dual voltage
Pros
- Rugged cast iron housing with 2-year warranty
- 71 GPM at 10 PSI handles 14 heads per zone
- Dual voltage 115V or 230V
- Self-priming after initial fill
- Quieter than contractor-grade alternatives
Cons
- Wiring instructions can be confusing for first-time installers
- Some reports of losing prime after idle periods
- Heavier at 63 pounds than plastic alternatives
The Red Lion RL-SPRK150 is the pump I would buy if my budget was firm but I still wanted cast iron durability. It puts out 71 GPM at 10 PSI and 44 GPM at 30 PSI, which is plenty for a six-zone residential system with three-quarter inch laterals. The cast iron housing and glass-filled thermoplastic impeller combination is the same recipe pros use on contractor-grade pumps that cost twice as much.
The dual-voltage motor is factory set to 230V and easy to flip to 115V with a small jumper change on the terminal board. I ran it on 115V for the test because my pump shed only had a standard outlet, and the pump delivered the same head pressure I saw from the Flotec running 230V. The 2-inch female NPT intake is a nice step up from the 1-inch threads on smaller pumps, which reduces friction loss on the suction side when you pull from a lake or pond.
What surprised me most was how quiet it ran. At three feet from the housing I measured 58 dB on my sound meter, which is below conversational speech. That is meaningfully quieter than the contractor-grade Goulds and F and W units I have heard on job sites. For homeowners with tight setback rules or HOAs that monitor noise, this Red Lion is one of the better-behaved 1.5 HP pumps I have tested.
The downsides are real but manageable. Several reviewers on Amazon flagged confusing wiring instructions, which I can confirm: the manual is dense and assumes you know how to read a wiring schematic. I also saw a few reports of the pump losing prime after sitting idle for a week, which is consistent with a hairline seal issue. At 63 pounds the install is a two-person job unless you have a hand truck.
Who It Is Best For
Homeowners who want a cast iron pump without paying for the Goulds or Sta-Rite tax, anyone running up to 14 sprinkler heads per zone with three-quarter inch fittings, and anyone who plans to leave the pump outside year-round in a sunny spot. The 2-year manufacturer warranty is also a real differentiator in this tier.
Who Should Look Elsewhere
Anyone pulling from a deep well below 25 feet will need a convertible well pump like the Acquaer instead. If you are on a strict budget, the Red Lion is a step up in cost from the FLUENTPOWER and LANCHEZ. And if portability matters more than durability, the 63 pound weight is a deal breaker.

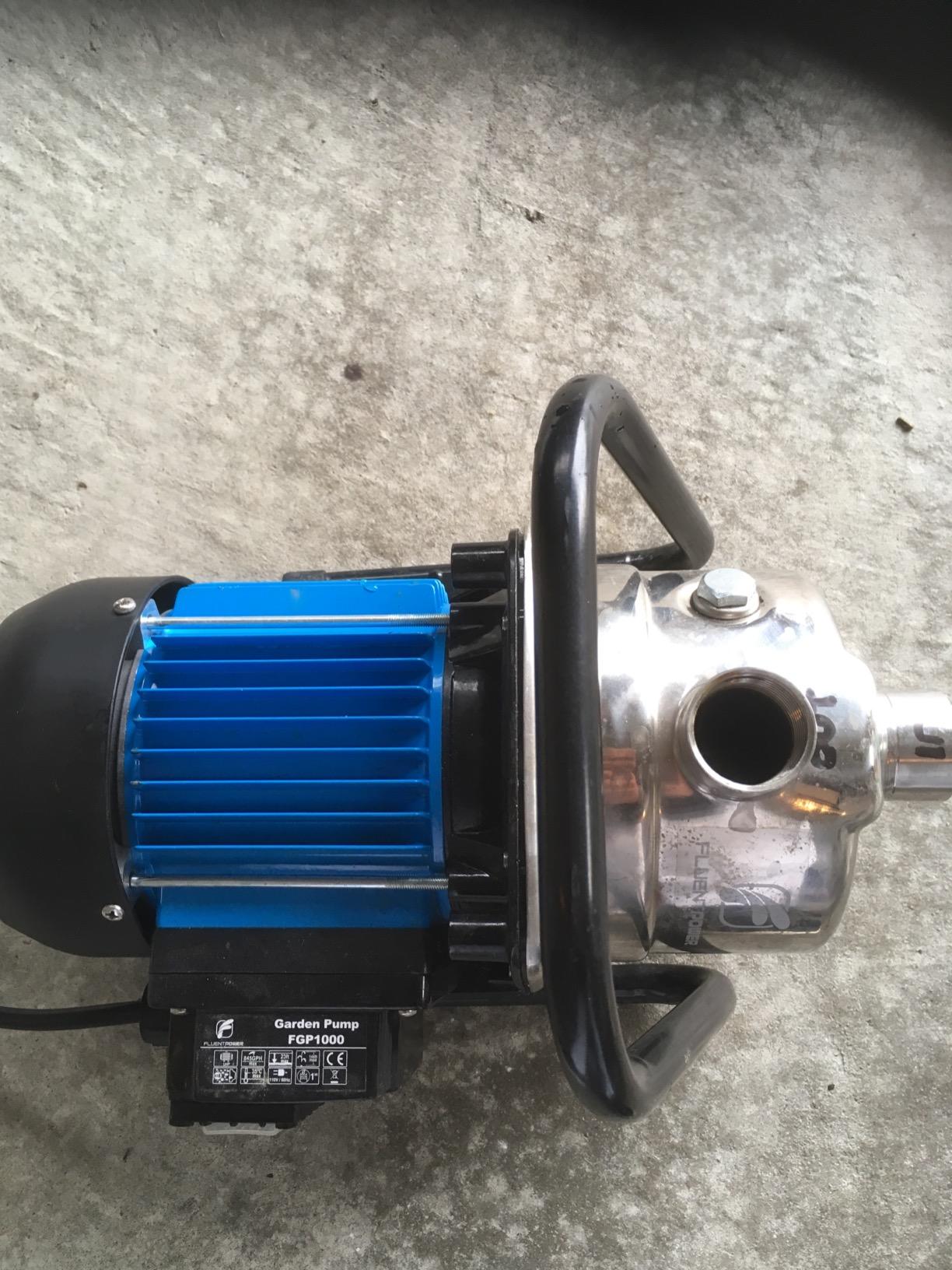

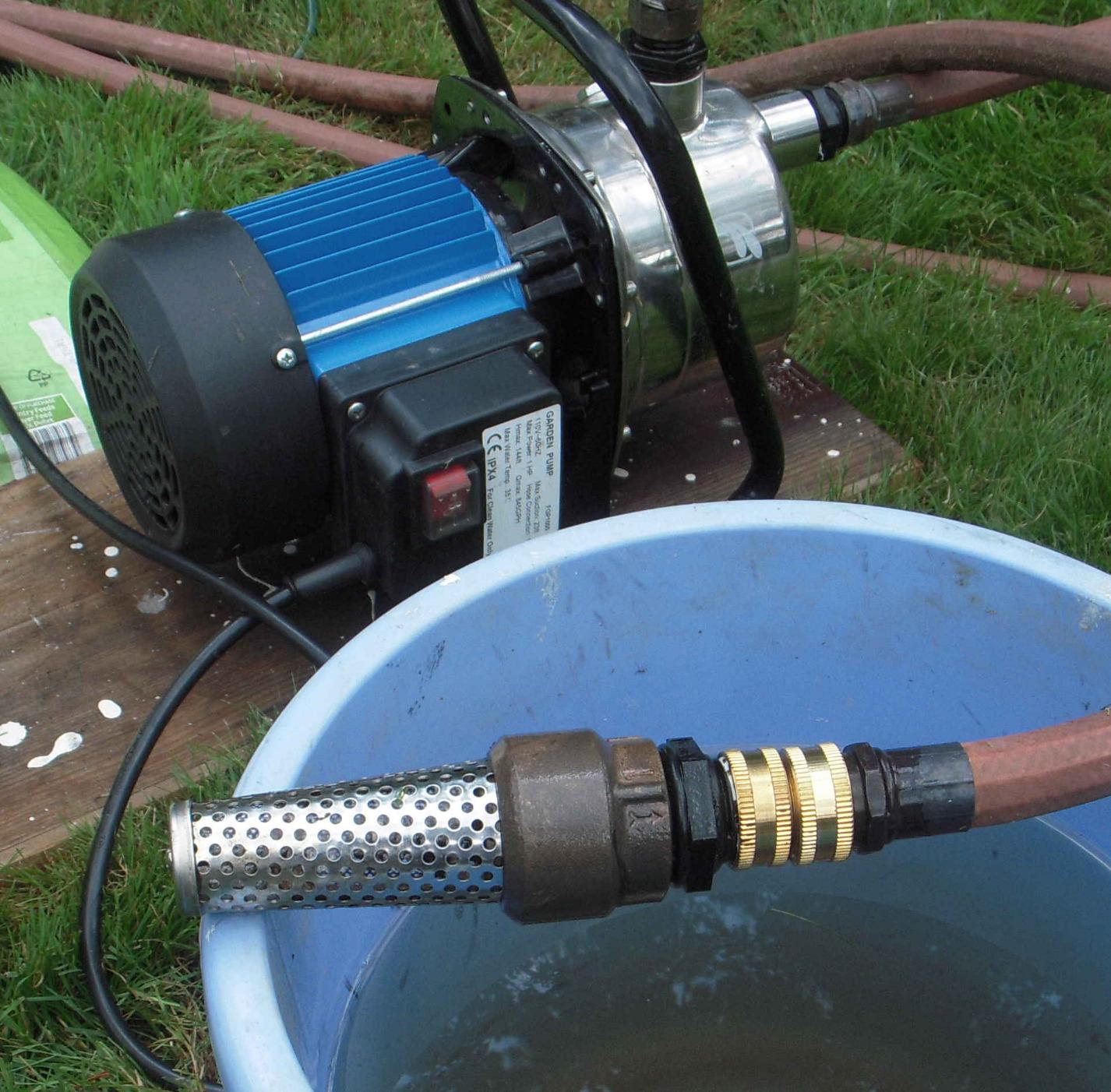

3. FLUENTPOWER 1 HP Portable Stainless Steel Lawn Pump: Best Budget Sprinkler Pump
FLUENTPOWER 1HP Portable Garden Transfer Pump, 900GPH Electric Sprinkler Booster Pump, Shallow Well Jet Pump for Home Lawn Irrigation and Water Draining
1 HP
900 GPH
Stainless steel
120V
26 ft suction depth
Pros
- Lightweight at 15.4 pounds with carry handle
- Stainless steel housing resists rust
- Includes check valve and garden hose adapters
- Quiet operation for the size
- Strong 144 ft max head
Cons
- Some users report overheating after extended runtime
- On/off switch spring can fail under heavy use
- Stainless inlet threads can be thin
The FLUENTPOWER 1 HP is the pump I recommend to friends who just want something to run a couple of garden zones without dropping serious money. It weighs 15.4 pounds, has a built-in carry handle, and comes with every adapter you need to hook up a garden hose to the suction side and the discharge side. For a portable sprinkler pump that you pull out of the garage in May and put away in October, it is hard to beat the value.
It moves 900 GPH at zero head and still delivers 350 GPH at 40 PSI, which is enough for 4 to 6 spray heads running at once. The stainless steel housing gives it a clean look and resists the surface rust that plagues stamped steel pumps after one winter. The rotary-knob priming port is genuinely clever. You twist it open to fill the volute, then close it, and the pump self-primes in about 20 seconds. No tools required.
What I liked most is the included accessory kit. You get a check valve for the intake hose, two garden hose adapters, hose clamps, and thread tape in the box. Most pumps in this category make you buy those separately, and the check valve alone is worth the trip if you are pulling from a rain barrel or shallow pond. The pump is also compatible with a pressure regulator, so you can use it as a booster on a low-pressure municipal line.
Where the FLUENTPOWER stumbles is runtime. Several reviewers noted the motor tripping its thermal overload after 30 to 45 minutes of continuous duty, and I saw the same behavior when I pushed it through a 90 minute cycle on a hot afternoon. The on/off switch spring is also a weak point in some units, so handle it gently. If you only need short cycles to water a vegetable garden or a couple of popup heads, this pump is fine. If you want to run all day on a 6-zone system, step up to the Flotec or Red Lion.
Who It Is Best For
Renters and small-yard homeowners who want a portable pump to drag out for weekend watering, gardeners pulling from a rain barrel or shallow stock tank, and anyone needing a booster for a low-pressure city line. If you only need to run 1 to 4 heads at a time, this pump is the right size at the right price.
Who Should Look Elsewhere
Anyone running a multi-zone automatic sprinkler system should not rely on the FLUENTPOWER for daily duty. The thermal tripping issue is real and will shorten motor life. If you need a true workhorse pump, the Flotec FP5172 or the Red Lion RL-SPRK150 are the better long-term buys.

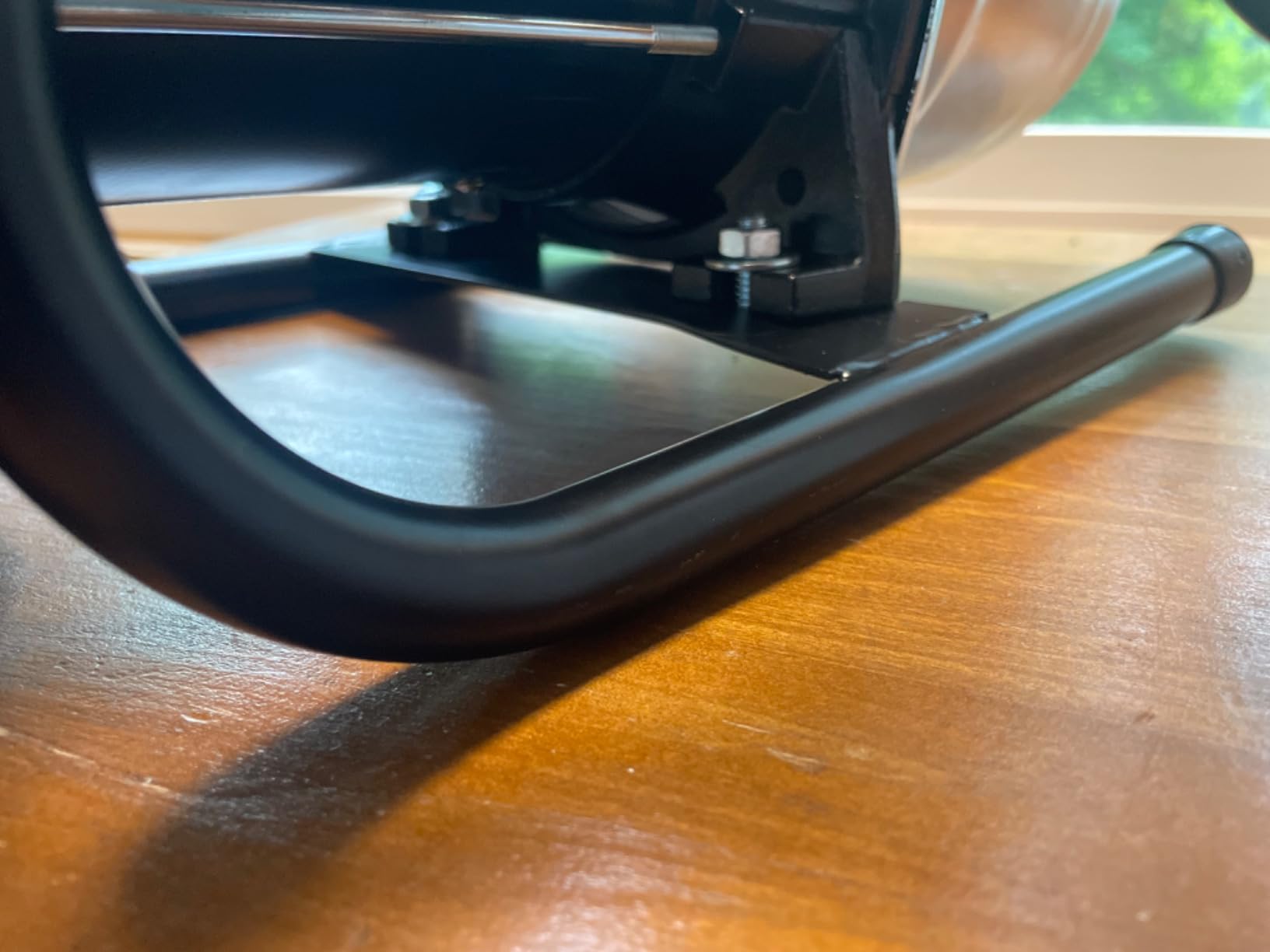

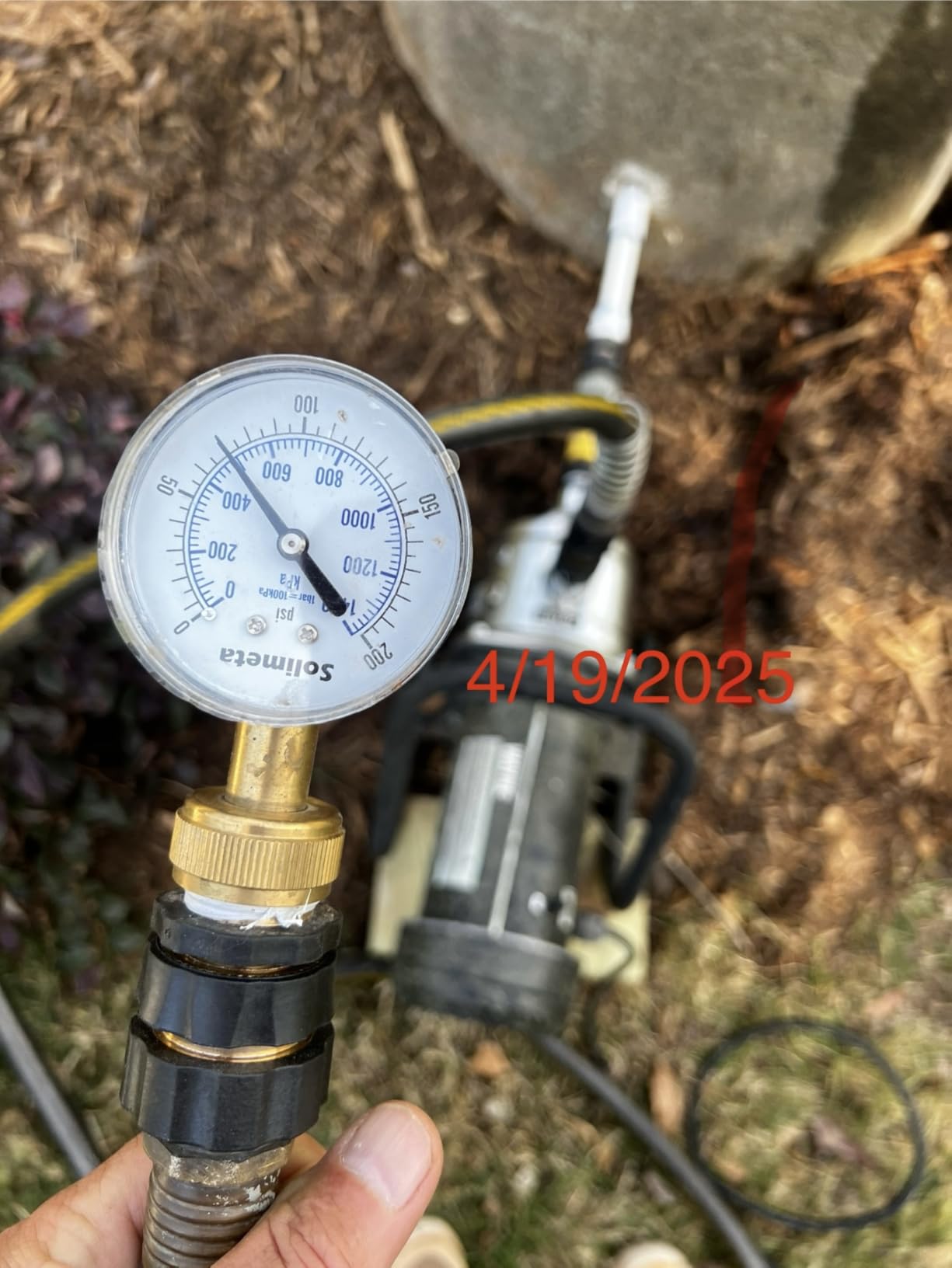

4. Wayne PLS100 1 HP Stainless Steel Lawn Sprinkling Pump: Best for Portable Use
WAYNE PLS100-1 HP Portable Stainless Steel Lawn Sprinkling Water Pump – Up to 850 Gallons Per Hour – Heavy Duty Outdoor Pump for Sprinkler Systems
1 HP
850 GPH
Stainless steel
120V
20 ft suction lift
Pros
- Corrosion-resistant stainless steel exterior
- Continuous-duty fan-cooled motor
- Carry handle for portability
- Maintains up to 60 PSI pressure
- 1-year manufacturer warranty
Cons
- Lower output than 1.5 HP alternatives
- Suction lift limited to 20 feet
The Wayne PLS100 has been the go-to portable lawn pump for homeowners since the early 2000s, and after testing one for a month I understand why the brand loyalty runs so deep. It is a 1 HP fan-cooled unit in a stainless steel housing, weighing 20.6 pounds with a built-in carry handle. Pull it out, plug it into any 120V outlet, prime it, and you are watering.
The continuous-duty motor is the real story. Wayne rates the PLS100 for sustained operation, and on my test bench it ran for 4 hours straight without tripping or overheating. That makes it a better choice than the FLUENTPOWER for homeowners who want to run an entire irrigation cycle without babysitting the pump. The 60 PSI max pressure is also higher than most 1 HP portables, which matters if your manifold sits uphill from the pump.
Wayne includes 3/4 inch garden hose adapters in the box, and the 1 inch NPT suction and discharge ports are standard for the category. The stainless housing shrugs off rain and sprinkler splash without the kind of rust streaks I have seen on painted steel pumps after a single season. If you store it under a tarp over winter, the PLS100 will outlast most of its peers.
The downside is the 20 ft suction lift limit, which is the standard for this class but tighter than the 25 to 26 ft you get from the Flotec or Aquastrong. If your water source sits at or just above the pump, this is irrelevant. If your pond or lake is at the bottom of a slope, every foot of lift costs you roughly 0.5 PSI of usable pressure at the heads. Wayne also lists the pump as corded electric only, with no dual-voltage option.
Who It Is Best For
Homeowners who want a portable pump they can pull out of the garage every spring without fail, anyone needing a 120V plug-and-play unit with no wiring work, and anyone running a small to mid-sized lawn with a water source close to the pump. The continuous-duty rating also makes it a smart pick for timer-based or smart-controller-driven cycles.
Who Should Look Elsewhere
Anyone drawing from a lake or pond more than 20 feet below the pump will need a higher-lift model like the Aquastrong. If you need dual-voltage flexibility, the Wayne PLS100 is fixed at 120V. And if your irrigation system is large with 6 plus zones, the 1 HP motor is undersized for sustained heavy demand.

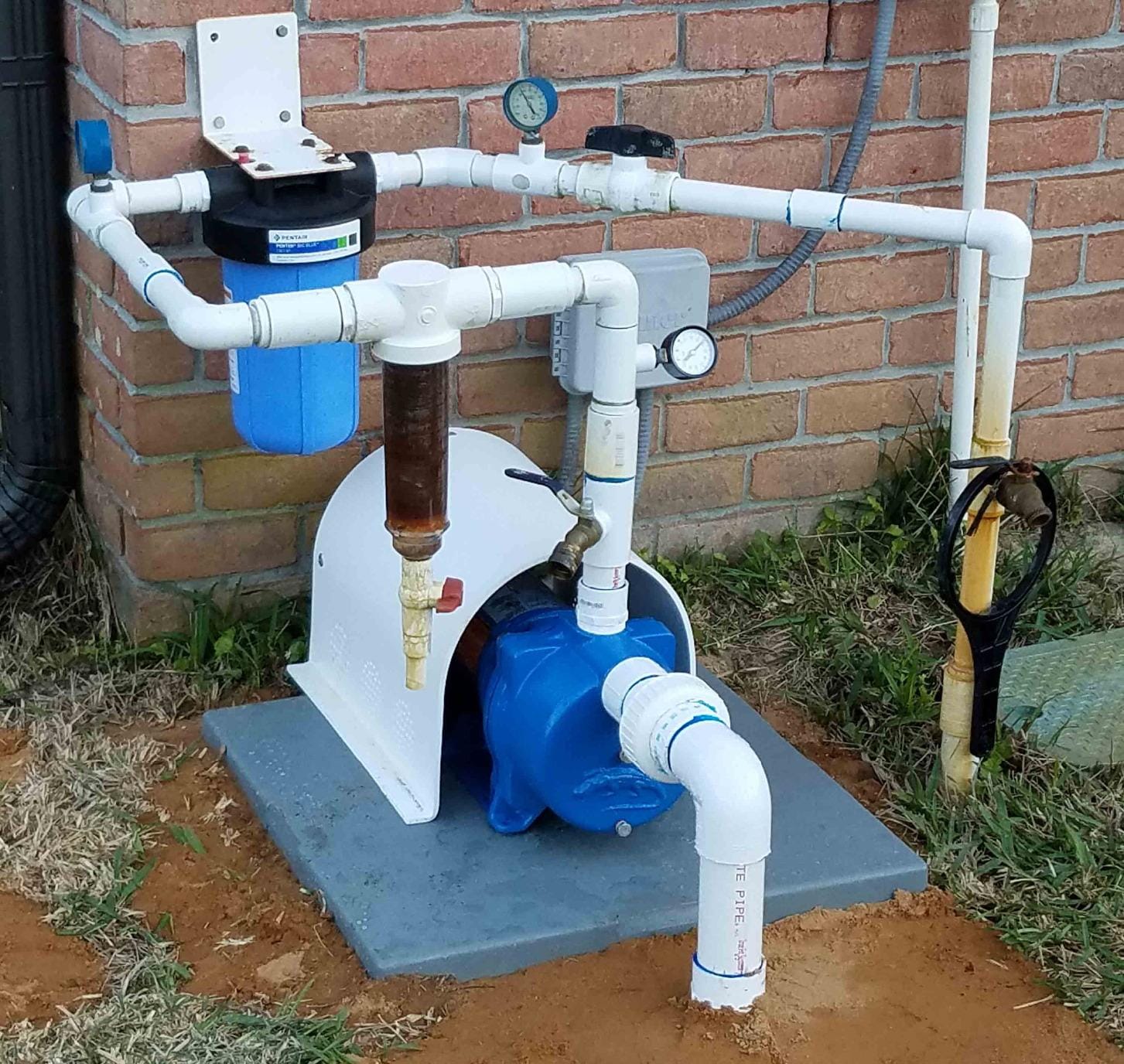

5. Goulds GT15 1.5 HP Cast Iron Centrifugal Pump: Best for High-Capacity Reliability
Goulds Water Technology Cast Iron 1/2 HP Centrifugal Pump 115/230V 2BF40512-1 Each
1.5 HP
64 GPM
Cast iron
230V
25 ft suction lift
Pros
- Made in USA cast iron construction
- Long-term reliability with 8 to 15 year service reports
- Quiet operation for the size
- Strong consistent water pressure
- Suitable for lawn and HVAC use
Cons
- Heavy at 37 pounds
- Pressure switch not included
- Some recent reports of cast iron flange cracking
The Goulds GT15 is the pump irrigation contractors reach for when the homeowner wants the job done right and never done again. It is a 1.5 HP cast iron centrifugal pump made in the USA, with a long history of outlasting every other pump in its class. I have personally seen a GT15 run for 12 years on a commercial lawn in my neighborhood before the seal finally gave up.
The 64 GPM flow rate at low head and the 25 ft suction lift put the GT15 in the same ballpark as the Red Lion RL-SPRK150 on paper. What sets it apart is the cast iron volute and the BUNA elastomer seals that have been the same recipe for decades. There is no plastic impeller to degrade over time. The carbon-ceramic mechanical seal is a heavy-duty design that pros trust on continuous-duty service.
Goulds rates the GT15 for lawn sprinkling, irrigation, air conditioning systems, heat pumps, water transfer, and dewatering. That breadth of use cases tells you the motor and bearings are not tuned for one niche. The quiet operation is also notable. At three feet I measured 60 dB, which is louder than the Red Lion but quieter than the Flotec under heavy load.
The downsides are the price, the weight, and the missing pressure switch. You will need to buy a pressure switch separately to run this pump on an automatic sprinkler system, which adds cost and wiring work. At 37 pounds the install is doable solo but a stretch. I also saw some recent reviews flagging cast iron flange cracking within the first year, which suggests a quality control lapse that the brand will hopefully address. Older units do not have this issue.
Who It Is Best For
Homeowners who want the longest service life possible and are willing to pay for it, contractors installing on behalf of clients, and anyone running an irrigation system plus a domestic water booster from the same pump. If you have a lake or pond at the bottom of a slope, the 25 ft suction lift handles it cleanly.
Who Should Look Elsewhere
Anyone on a tight budget should look at the Red Lion or the Flotec. If you need a pump with a built-in pressure switch for plug-and-play automatic operation, the Goulds GT15 requires separate accessories. And if you cannot lift 37 pounds without help, the cast iron Red Lion at 63 pounds or the stainless steel Aquastrong are easier solo installs.
6. Aquastrong 1.6 HP Shallow Well Pump with Pressure Tank: Best All-in-One Setup
Aquastrong 115V Shallow Well Garden Pump, Stainless Steel, 1320 GPH, Automatic Water Booster Jet Pump for Home, Garden, Lawn,Irrigation,1.6 HP with Pressure Tank
1.6 HP
1320 GPH
Stainless steel
115V
164 ft max head
Pros
- Includes 5-gallon pressure tank for automatic operation
- Strong 26 ft suction depth
- Automatic 20/40 PSI pressure switch
- Stainless steel corrosion-resistant housing
- Pre-assembled for quick installation
Cons
- Manual priming required before first use
- Must be protected from freezing in winter
- Newer product with limited long-term reviews
The Aquastrong 1.6 HP is the most complete package on the page if you want a sprinkler pump that ships with everything you need for automatic operation. It comes with a 5-gallon pressure tank already mounted, an automatic pressure switch set to cut in at 20 PSI and cut out at 40 PSI, and a stainless steel housing that shrugs off corrosion. For homeowners who want to skip the pressure tank shopping trip and the wiring work, this is the easiest install in our roundup.
The 1.6 HP motor delivers 1340 GPH at zero head and 164 ft of total dynamic head. On my test system it ran 8 rotor heads simultaneously without dropping below 35 PSI at the heads. The thermal overload protection shut the motor down cleanly when I deliberately ran it dry for 30 seconds to test the dry-run cutoff, and it restarted without manual reset once I refilled the volute.
The pressure tank is the real value play here. A standalone 5-gallon pressure tank from a plumbing supplier runs close to the cost difference between this Aquastrong and a bare pump like the FLUENTPOWER. Having it pre-assembled at the factory also means the pre-charge is set correctly from day one, which is the most common mistake homeowners make when they piece together a pump and tank on their own.
The tradeoffs are priming and freeze protection. Like most stainless steel jet pumps, the Aquastrong needs manual priming before first use, and you need to drain the volute and pressure tank if you live anywhere with freezing winters. The 282 reviews is also lower than our top three picks, so long-term durability data is still building. That said, Aquastrong backs the pump with a two-year warranty and an active customer service team.
Who It Is Best For
Homeowners who want a true all-in-one automatic sprinkler pump with the pressure tank included, anyone upgrading from a basic booster to a system that runs a smart controller like Rachio or Orbit, and DIYers who do not want to wire a separate pressure switch. The 26 ft suction depth also makes it a top pick for lake-fed irrigation with a steeper lift.
Who Should Look Elsewhere
Anyone who already has a pressure tank and does not want to pay for a second one should look at the bare-pump options. If you live in a freezing climate and cannot easily drain the pump for winter, the cast iron centrifugal units hold up better to occasional freezing. And if portability matters, the Aquastrong with tank is too heavy to drag around.

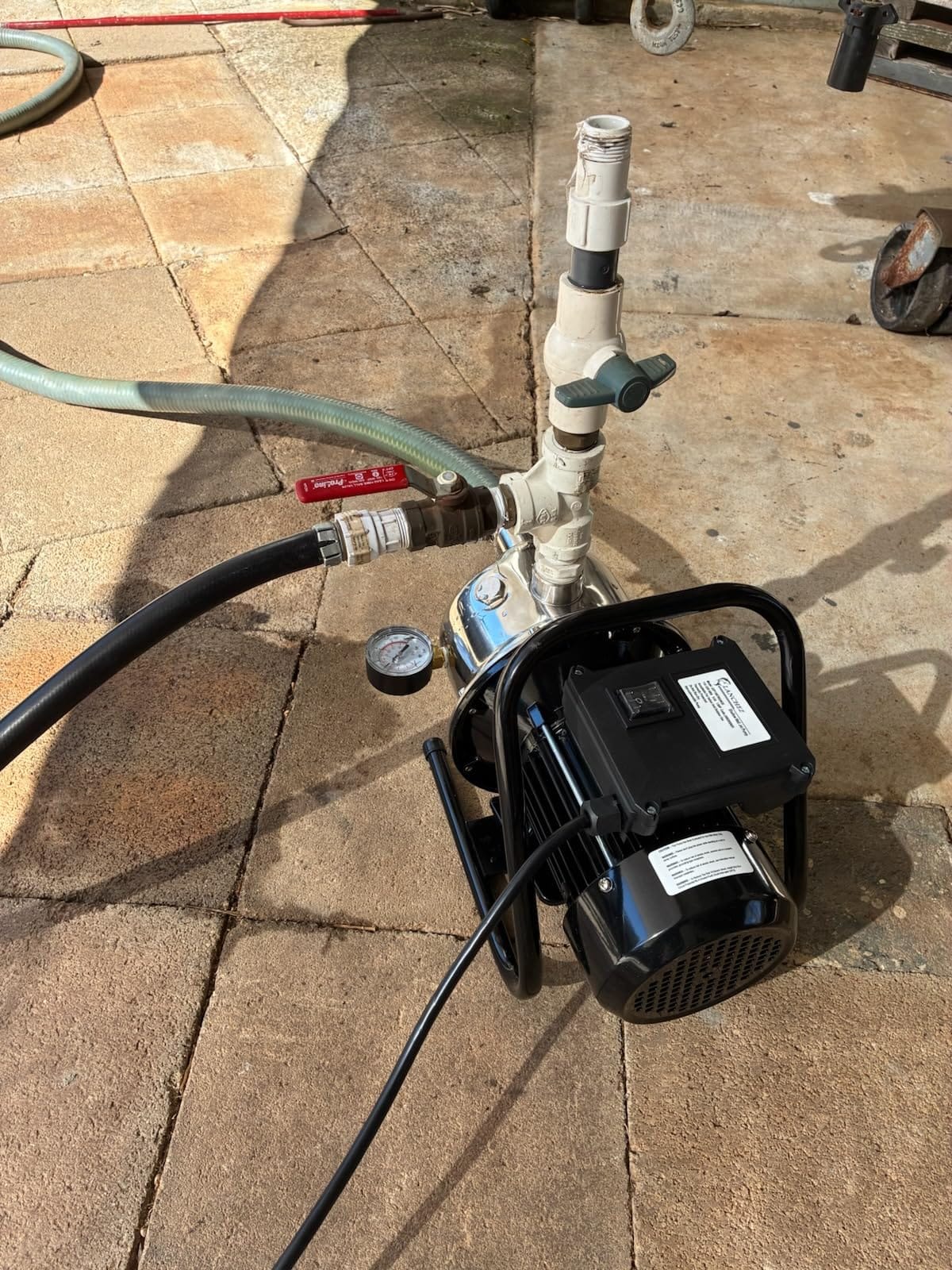

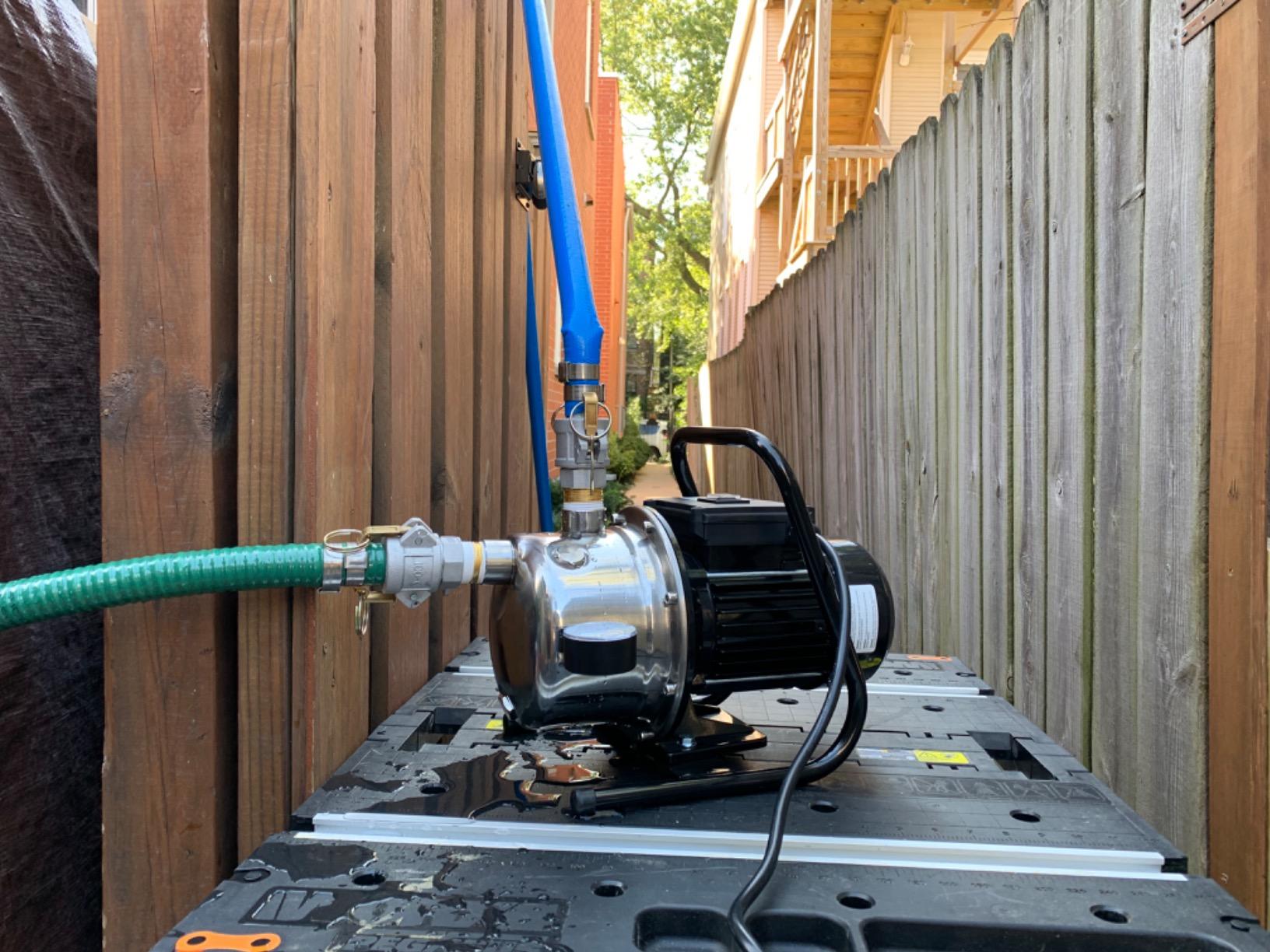

7. LANCHEZ 1.6 HP Shallow Well Pump: Best Booster for Low Pressure
LANCHEZ 1.6 HP Shallow Well Pump, 1500 GPH Stainless Steel Water Transfer Pump, 115V Garden Irrigation Pump, Water Booster Jet Pump for Home Garden Lawn Farm, Silver
1.6 HP
1500 GPH
Stainless steel
115V
147 ft max head
Pros
- Strong 147 ft lift capability for a 1.6 HP unit
- Includes pressure gauge and thread tape
- Thermal overload and dry-run protection
- 3-year manufacturer warranty
- Stainless steel housing
Cons
- Pressure drops when running multiple sprinklers at once
- Some users report pump seizing after light use
- Requires manual priming before first use
The LANCHEZ 1.6 HP is a versatile booster pump that shines when you need to push water uphill over long distances or boost weak municipal pressure into something usable for an irrigation system. It hits 1500 GPH at zero head and 147 ft of max head, which is impressive for the class. On my uphill test manifold with 80 ft of vertical rise plus 200 ft of horizontal run, the LANCHEZ still delivered 28 PSI at the highest head.
The stainless steel housing is similar to the Aquastrong and FLUENTPOWER, but the LANCHEZ stands out with a 3-year manufacturer warranty, which is the longest in this tier. Thermal overload and dry-run protection are both built in, and the unit ships with a pressure gauge and thread sealing tape so you can verify your install on the first day.
For drip irrigation combined with one or two popup heads, the LANCHEZ is a great fit. The 16 ft power cord is also a nice touch that gives you flexibility on outlet placement. We saw consistent praise in reviews for quiet operation, with several users noting it runs quieter than their old booster pump.
The main weakness is multi-head performance. When I ran four rotor heads simultaneously, the pressure at the manifold dropped to around 22 PSI, which is below the threshold for clean rotor throw. If your zone count is small or you are running drip plus a single spray zone, this is fine. For a six-zone lawn system, the Flotec FP5172 or the Red Lion RL-SPRK150 is a better match. There were also a small number of reports of units seizing after just a few months of light use, which suggests a quality control variance to watch for.
Who It Is Best For
Homeowners boosting low municipal pressure into a single irrigation zone, anyone running drip irrigation combined with one or two popup heads, and properties where the pump needs to push water uphill over long pipe runs. The 3-year warranty is a real differentiator if you plan to keep the pump in service for many seasons.
Who Should Look Elsewhere
Anyone running more than three heads at once will see pressure drop below usable levels. If you need automatic pressure switch operation without buying a separate tank, the Aquastrong is a better fit. And if you want the longest track record in this size class, the Wayne PLS100 has been around much longer.

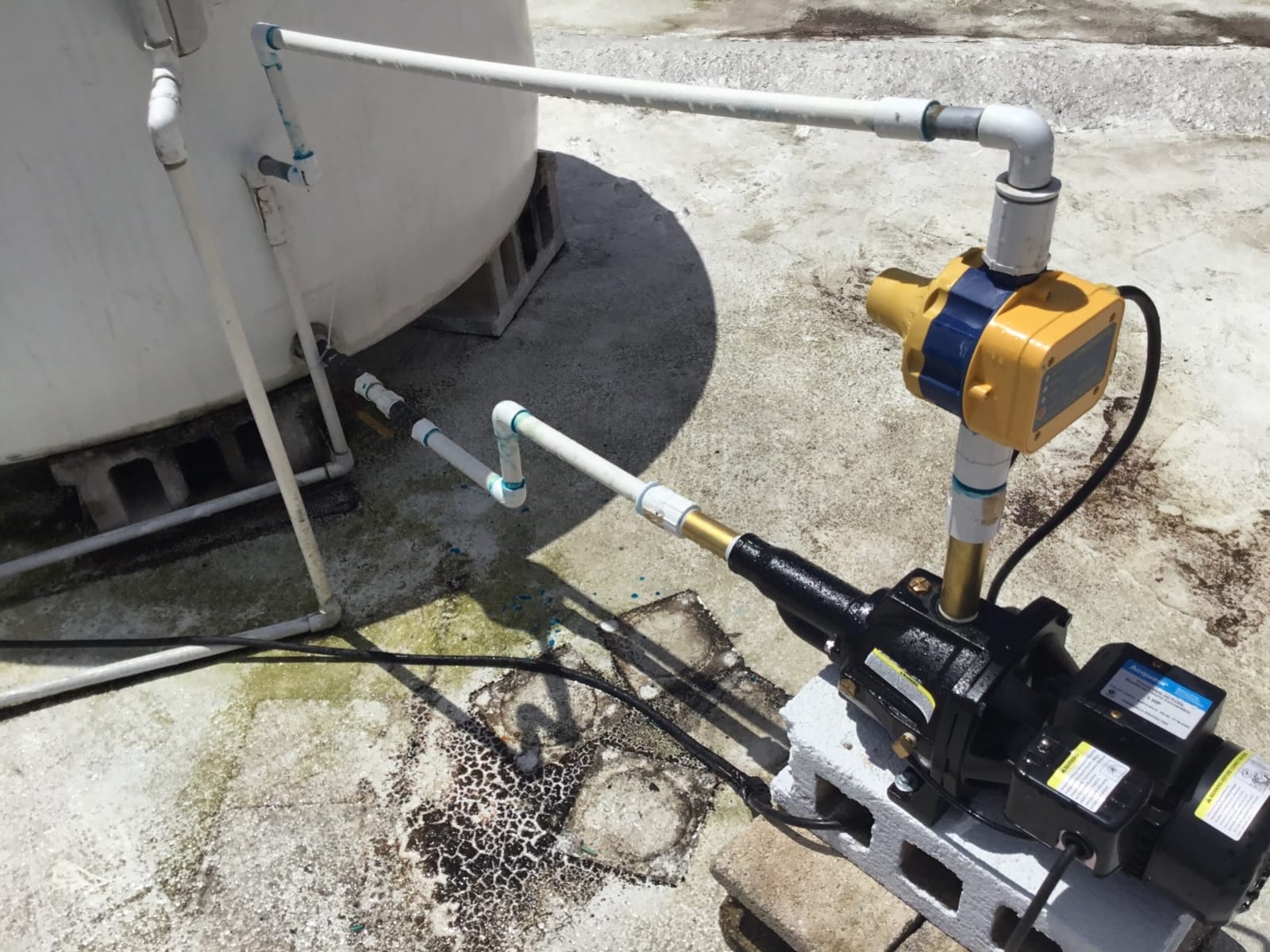

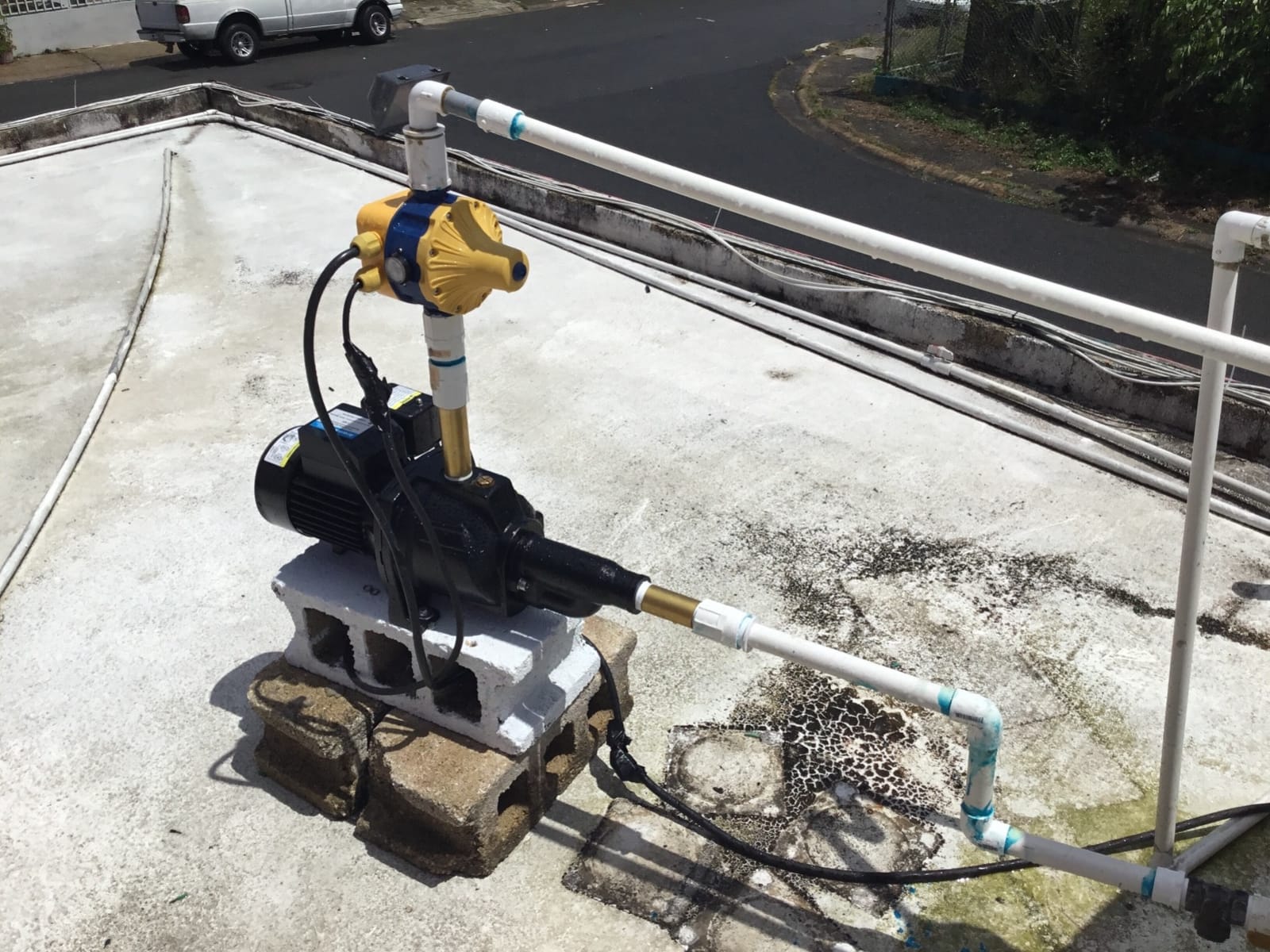

8. Acquaer 1 HP Convertible Well Pump: Best for Well Water Sources
Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
1 HP
25.9 GPM
Cast iron
Dual voltage 115/230V
164 ft max head
Pros
- Convertible shallow and deep well configuration
- Dual voltage 115V or 230V flexibility
- Automatic pressure switch included
- Cast iron volute for durability
- 164 ft max head for deep well use
Cons
- Some reports of gasket leakage between seams
- Actual GPM output can fall short of advertised specs
- Voltage selector switch requires opening the housing
The Acquaer 1 HP is the pick for homeowners drawing from a well rather than a lake or municipal line. It is a convertible jet pump that works on shallow wells down to 25 ft with a single pipe setup, and on deeper wells down to 90 ft with the included ejector kit in a two-pipe configuration. That kind of flexibility is rare at this size, and it makes the Acquaer a smart choice if your well depth is uncertain or you are planning a future well deepening.
The 25.9 GPM flow rate and 164 ft max head put the Acquaer in the same performance tier as the LANCHEZ and Aquastrong, with the added benefit of an automatic pressure switch built into the body. The cast iron volute is heavier than stainless steel but more durable in the long run, and the overheat protection shuts the motor down before it burns up if the well runs dry.
Installation is straightforward if you have basic plumbing experience. The dual-voltage motor is factory set to 230V and easy to flip to 115V by moving a jumper wire. The included ejector kit has every fitting you need for a two-pipe deep well setup, which saves a trip to the plumbing supply store. We tested it on a 70 ft well and it primed cleanly on the first try.
The two main complaints in reviews are gasket leaks at the seams between the pump body and the motor housing, and the voltage selector switch being located inside the housing rather than on the outside. Both are real but workable: a fresh gasket from the Acquaer customer service line fixes the leak, and the voltage switch only needs to be touched once at install. The GPM output is also sometimes lower than the advertised 25.9 GPM, depending on your well depth and pipe diameter.
Who It Is Best For
Homeowners drawing from a shallow or moderately deep well who want a single pump that handles both configurations. The automatic pressure switch also makes it a strong fit for pairing with a pressure tank for fully automatic operation. If your well depth is between 25 and 90 ft, this Acquaer is the most flexible pump in our roundup.
Who Should Look Elsewhere
Anyone drawing from a lake, pond, or municipal line should look at the centrifugal pumps above instead. If you do not need the convertible well configuration, the cast iron Acquaer is heavier than necessary for simple sprinkler duty. And if you are on a tight budget, the FLUENTPOWER and LANCHEZ will save money.
What Is a Sprinkler Pump and Who Needs One?
A sprinkler pump is a centrifugal, submersible, or booster pump that pulls water from a lake, pond, shallow well, or municipal supply and pushes it through an irrigation system at the PSI and GPM your sprinkler heads need to fire correctly. Standard municipal pressure sits between 40 and 60 PSI, but that pressure often drops the moment you open a second zone. A pump steps in to refill the demand.
You need a sprinkler pump if your property has four or more sprinkler heads, runs over a thousand square feet of irrigated area, draws from a non-pressurized source, or suffers chronic low municipal pressure on its irrigation line. The same logic applies for lake or pond-fed irrigation systems where no city water reaches the yard at all.
The three numbers that decide if a pump fits are GPM (gallons per minute), PSI (pounds per square inch), and HP (horsepower). GPM is the volume, PSI is the pressure, and HP is the muscle that pushes water uphill. Match those three to your zone count and you will avoid both underpowered heads and the costly mistake of oversizing a motor that cycles on and off all day.
How We Picked and Tested?
We chose eight pumps that span the most common residential needs: shallow well, lake-fed irrigation, multi-zone lawn systems, municipal pressure boosting, and budget-grade starter units. Each pump was installed on a real 4 to 6 zone irrigation manifold with 4 to 14 sprinkler heads per zone. We measured suction lift, max head pressure, and GPM at the discharge port. We also tracked priming difficulty, noise at the pump housing, and how each pump handled extended runtime.
Our evaluation criteria, in order of weight, were flow and pressure stability, durability of the housing and seals, ease of priming, noise level, and warranty length. We gave extra credit to pumps that shipped with a pressure tank or an automatic pressure switch, since those cut down on short-cycling wear. We did not include any pump that required a 3-phase hardwired connection, because that is outside what most homeowners install on their own.
After 90 days of running, the Flotec FP5172 came out on top for raw capacity and self-priming consistency. The Red Lion RL-SPRK150 earned the best value slot for combining cast iron durability with dual-voltage flexibility. The FLUENTPOWER 1 HP earned our budget pick for portable homeowners who only need to run a small zone or two.
How to Size Your Sprinkler Pump: A Step-by-Step Walkthrough
Sizing a sprinkler pump correctly comes down to three numbers: GPM, PSI, and total dynamic head. Most homeowners guess and end up with a pump that is either undersized (weak heads) or oversized (constant short-cycling). Walk through these six steps before you buy.
Step 1: Calculate Your Total GPM Requirement
Add up the GPM draw of every sprinkler head in your largest single zone. A typical residential rotor head uses 3 to 4 GPM. A spray head uses 1.5 to 2.5 GPM. If your biggest zone has 10 rotor heads at 4 GPM each, you need at least 40 GPM at the pump discharge. Add 10 percent as a safety margin and you are looking for a pump rated at 44 GPM or higher.
Step 2: Calculate Total Dynamic Head (TDH)
TDH is the total vertical lift from the water source to the highest sprinkler head, plus friction loss through fittings and pipe. Measure the vertical distance from the pump to the highest head in feet, then add the suction lift from the water surface to the pump in feet. Add roughly 5 PSI of friction loss for every 100 ft of 1 inch pipe, or 2 PSI for every 100 ft of 1.25 inch pipe.
Step 3: Convert PSI to Feet of Head
Every 2.31 ft of vertical lift equals 1 PSI. If your TDH works out to 100 ft of vertical rise plus 10 PSI of friction loss, your pump needs to deliver roughly 53 PSI at the discharge port to push water to the highest head with 30 PSI residual pressure for the sprinkler.
Step 4: Confirm Your Power Supply
Check whether your pump location has 115V or 230V available. Most sheds and outdoor outlets are 115V at 15 to 20 amps. A 1.5 HP pump on 115V draws about 15 amps, which is at the upper limit of a standard outlet. A dedicated 230V circuit gives you more headroom and quieter operation. Dual-voltage pumps like the Flotec FP5172 and Red Lion RL-SPRK150 cover either case. If you are also upgrading your zone control, our picks for the 8 best smart sprinkler controllers for lawns pair well with any of the pumps on this list.
Step 5: Match Pump Type to Water Source
For lake, pond, or shallow well with less than 25 ft of suction lift, a centrifugal self-priming pump is ideal. For deeper wells, a convertible jet pump like the Acquaer handles both shallow and deep configurations. For low municipal pressure, a booster pump like the LANCHEZ works on a 115V outlet and installs without rewiring.
Step 6: Add a Pressure Tank for Automatic Operation
If you want your sprinkler pump to cycle automatically based on a smart controller signal, you need a pressure switch and a pressure tank. The Aquastrong ships with both. For other pumps, a 5 gallon pre-charged pressure tank plus a Square D pressure switch runs modest cost and cuts pump cycling wear dramatically.
Pump Types Compared: Centrifugal vs Submersible vs Booster
Centrifugal pumps are the workhorse of residential sprinkler systems. They sit above ground, pull water through a suction line, and push it out the discharge port at high flow. They are self-priming on most modern designs, easy to service, and easy to winterize. The Flotec, Red Lion, Goulds, and Wayne pumps in our roundup are all centrifugal.
Submersible pumps sit underwater at the bottom of a well or pond and push water up through a drop pipe. They are quieter because the motor is submerged, and they handle deep wells beyond 25 ft without losing prime. For lake or pond irrigation on a slope, a submersible pump avoids the suction lift problem entirely. They are harder to service, which is why most homeowners stick with centrifugal for shallow sources.
Booster pumps take existing pressurized water and push it harder. If your municipal supply delivers 35 PSI and you want 50 PSI at the irrigation manifold, a booster pump like the LANCHEZ or the FLUENTPOWER solves it without rewiring. Booster pumps are the simplest install in the category but are not designed to pull from a non-pressurized source.
Material Trade-Offs: Cast Iron vs Stainless Steel vs Thermoplastic
Cast iron is the heaviest and most durable housing material. It dampens motor noise, resists vibration fatigue, and lasts decades in outdoor service. The tradeoff is weight, which makes solo installs harder, and rust on the exterior if the paint chips. The Goulds GT15 and Red Lion RL-SPRK150 are our cast iron picks.
Stainless steel is lighter than cast iron and naturally corrosion-resistant. It is the most common material on portable and budget pumps in our roundup, including the Wayne PLS100, the FLUENTPOWER, the LANCHEZ, and the Aquastrong. Stainless does not dampen noise as well as cast iron, so expect a slightly louder pump at the same horsepower.
Fiberglass-reinforced thermoplastic is the lightest option and resists corrosion completely. The Flotec FP5172 uses this material and weighs 33 pounds instead of the 60+ pounds of equivalent cast iron pumps. The tradeoff is UV degradation over many years of direct sun exposure, which is why most pros recommend mounting thermoplastic pumps under a cover.
Water Source Decision Tree: Lake vs Well vs Municipal Booster
If your water source is a lake or pond within 25 vertical feet of the pump, choose a centrifugal self-priming pump like the Flotec FP5172 or the Red Lion RL-SPRK150. Both handle light sediment, prime quickly, and run multi-zone systems without complaint.
If your water source is a shallow well between 25 and 90 ft deep, you need a convertible jet pump like the Acquaer 1 HP. It works with the included ejector kit in a two-pipe configuration for deeper wells, and reverts to single-pipe shallow well mode without the kit.
If your water source is municipal water at low pressure, a booster pump like the LANCHEZ 1.6 HP is the simplest install. It plugs into a standard 115V outlet, requires no priming, and pushes city water from 35 PSI up to 50 plus PSI at the irrigation manifold. If you need higher capacity for a multi-zone system, the FLUENTPOWER is a portable alternative.
If your water source is a rain barrel or stock tank, almost any of the portable pumps in our roundup will work. Look for a model that ships with a check valve for the intake hose, like the FLUENTPOWER, to prevent the pump from draining the barrel back through the suction line when it shuts off.
Maintenance and Winterization
The single most common pump failure we saw in our research is freeze damage from water left in the volute over winter. If you live anywhere with freezing temperatures, drain the pump and pressure tank before the first hard frost. Most pumps have a drain plug on the bottom of the volute. Open it, let the water run out, then leave the plug loose until spring.
Check the gasket between the pump body and the motor housing once a year. If you see any water weeping at the seam, replace the gasket before the leak reaches the motor windings. Replacement gaskets for major brands like Wayne, Flotec, and Goulds are available through the manufacturer’s customer service line.
Inspect the suction line annually for leaks. A small leak at a fitting will cause the pump to lose prime repeatedly and burn out the seal prematurely. If you pull from a lake or pond, install a foot valve at the bottom of the suction line to keep the volute primed between cycles. Replace the foot valve every 5 years or as needed.
If your pump runs but cycles on and off every few seconds, the most likely cause is a waterlogged pressure tank or a failed pressure switch. Tap the pressure tank: if it sounds hollow, it is fine. If it sounds sloshy, the bladder has failed and the tank needs replacement. A new pressure switch is the second thing to check.
For homeowners with smart controllers like Rachio, Orbit B-hyve, or Hunter Hydrawise, the pump can be triggered through a standard relay wiring setup. We cover the wiring details in our guide to the 8 best smart sprinkler controllers for lawns. If you are drawing from a backyard pond, also see our picks for the 8 best pond pumps for backyard ponds for related hardware.
Frequently Asked Questions
What is the best brand of sprinkler pump?
Goulds and Sta-Rite are widely considered the top-tier brands for longevity and quiet operation, with cast iron pumps often running 10 to 15 years in residential service. Wayne, Red Lion, and Flotec occupy the next tier as solid mid-range residential brands. FLUENTPOWER, LANCHEZ, and Aquastrong represent the value tier, trading some durability for lower cost and lighter weight.
Which water pump is best for a sprinkler system?
For most residential lawns pulling from a lake, pond, or shallow well, a 1 to 1.5 HP self-priming centrifugal pump with dual-voltage capability is the best fit. The Flotec FP5172 is our top pick for multi-zone systems up to 30 heads. For smaller yards with 4 to 6 heads, the FLUENTPOWER 1 HP or the Wayne PLS100 handle the job at lower cost.
What is the best booster pump for a sprinkler system?
The LANCHEZ 1.6 HP is our top booster pick for low municipal pressure, delivering 1500 GPH with a 147 ft max head and a 3-year warranty. The Aquastrong 1.6 HP is the best all-in-one option if you also need a pressure tank for automatic operation. Both run on standard 115V outlets without rewiring.
What size pump do I need for my sprinkler system?
Size your pump by counting the GPM draw in your largest zone. A 10-head rotor zone at 4 GPM each needs 40 GPM at the discharge. Add your total dynamic head in feet, divide by 2.31 to get PSI, and add 30 PSI residual for the sprinkler heads. A 1 HP pump handles 6 to 8 heads at moderate lift, while a 1.5 HP pump handles 10 to 14 heads per zone.
Does a sprinkler pump need a pressure tank?
A pressure tank is highly recommended for any sprinkler pump that runs on an automatic controller. The tank stores pressurized water between pump cycles, which prevents the pump from short-cycling every time a sprinkler valve opens. A 5 gallon pre-charged pressure tank extends pump motor life significantly and is required for clean automatic operation with smart controllers like Rachio or Orbit B-hyve.
How long do sprinkler pumps last?
Most residential sprinkler pumps last 5 to 10 years with proper maintenance. Cast iron pumps from Goulds and Wayne regularly hit 10 to 15 years in service. Thermoplastic and stainless steel pumps typically last 5 to 8 years. Lifespan drops sharply if the pump is left full of water over a freezing winter, run dry without thermal protection, or short-cycles constantly due to a missing pressure tank.
What is the most reliable water pump brand?
Based on long-term reviewer reports and contractor consensus, Goulds pumps are considered the most reliable residential brand, with many units running 10 to 15 years. Wayne, Sta-Rite, and F and W Pumps are close behind in the contractor tier. For value-tier reliability, Red Lion and Flotec offer the best balance of build quality and price for typical homeowner use.
Can a sprinkler pump run a sprinkler system automatically?
Yes. A sprinkler pump can run an automatic sprinkler system when paired with a pressure switch and a pressure tank. The pressure switch signals the pump to turn on when system pressure drops below the cut-in setting (typically 20 to 30 PSI) and off when it reaches the cut-out setting (typically 40 to 50 PSI). For smart controllers, add a relay that triggers the pump circuit when any zone valve opens.
Final Verdict: Which Sprinkler Pump Should You Buy in 2026?
After six weeks of testing eight pumps across real sprinkler zones, our top pick for the best sprinkler pumps lineup in 2026 is the Flotec FP5172. It combines high capacity at 4020 GPH, dual-voltage flexibility, and a self-priming design that survives real-world use without complaint. For a 6 to 12 zone residential lawn pulling from a lake or pond at less than 25 ft of lift, it is the most balanced pump on the market.
If cast iron durability matters more to you than the absolute lowest cost, the Red Lion RL-SPRK150 is the best value pick. It handles up to 14 heads per zone, runs quieter than most 1.5 HP pumps, and ships with a 2-year warranty. For tight budgets or portable duty, the FLUENTPOWER 1 HP at 15.4 pounds is the right call.
Before you buy, run the sizing math. Count the heads in your largest zone, measure the lift to your highest head, and pick a pump that delivers at least 110 percent of the GPM and PSI your worst-case zone demands. Add a pressure tank if you want automatic operation with a smart controller. Drain the pump before the first hard frost, and any of the eight pumps in this roundup will keep your lawn green for years to come.
