An anchor windlass is a powered winch mounted on the bow that raises and lowers your anchor and rode at the push of a button. Once a boat crosses roughly 25 feet or starts carrying all-chain rode, hauling a 25-40 lb anchor plus 100+ ft of chain by hand stops being a chore and starts being a real safety issue – one bad shoulder pull in a cross-current and you’re in trouble. A good windlass turns that workout into a one-button operation, which is why it sits near the top of every cruiser’s upgrade list.
Our team spent the past several months comparing 8 of the best anchor windlasses on real boats ranging from 18-ft center consoles up through 40-ft cruisers. We measured retrieval speed under load, watched solenoids click without motor response, sized the wire runs for voltage drop, and pulled owner feedback from Cruisers Forum, Trawler Forum, and r/sailing. This guide breaks down what actually matters – max pull, gypsy size, rode type, motor wattage, electrical demand, and long-term reliability – so you can match the right windlass to your boat without overspending on spec sheet promises.
Table of Contents
Top 3 Picks at a Glance (October 2026)
Lewmar V700 Vertical Windlass
- 700 lb max pull
- 316 stainless steel
- IP67 rated housing
- fast-fit one-person install
- 1/4 inch G4 chain
Minn Kota Deckhand DH-40
- 40 lb anchor capacity
- pre-spooled rope
- universal davit
- anti-drag drift
- one-touch operation
Lewmar Pro Sport 550
- 550 lb max pull
- horizontal mount
- DIY above-deck
- 12V rope and chain combo
- 1/4 inch G4 chain
Looking for a smaller boat setup or a pontoon-friendly auto-deploy? Skip ahead to our Minn Kota Deckhand and Trac Deckboat 40 reviews – they’re purpose-built for 18-25 ft craft and don’t share an installation budget with a 38-ft cruiser.
Best Anchor Windlasses in 2026: Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| Lewmar V700 Vertical Windlass |
|
Check Latest Price |
| Lewmar Pro Sport 550 |
|
Check Latest Price |
 Lewmar Pro Fish 700 |
|
Check Latest Price |
 Lewmar Pro-Fish 1000G |
|
Check Latest Price |
 Lewmar Pro-Series 700 Gypsy |
|
Check Latest Price |
 Maxwell RC8 |
|
Check Latest Price |
| Minn Kota Deckhand DH-40 |
|
Check Latest Price |
 Trac Deckboat 40 AutoDeploy-G3 |
|
Check Latest Price |

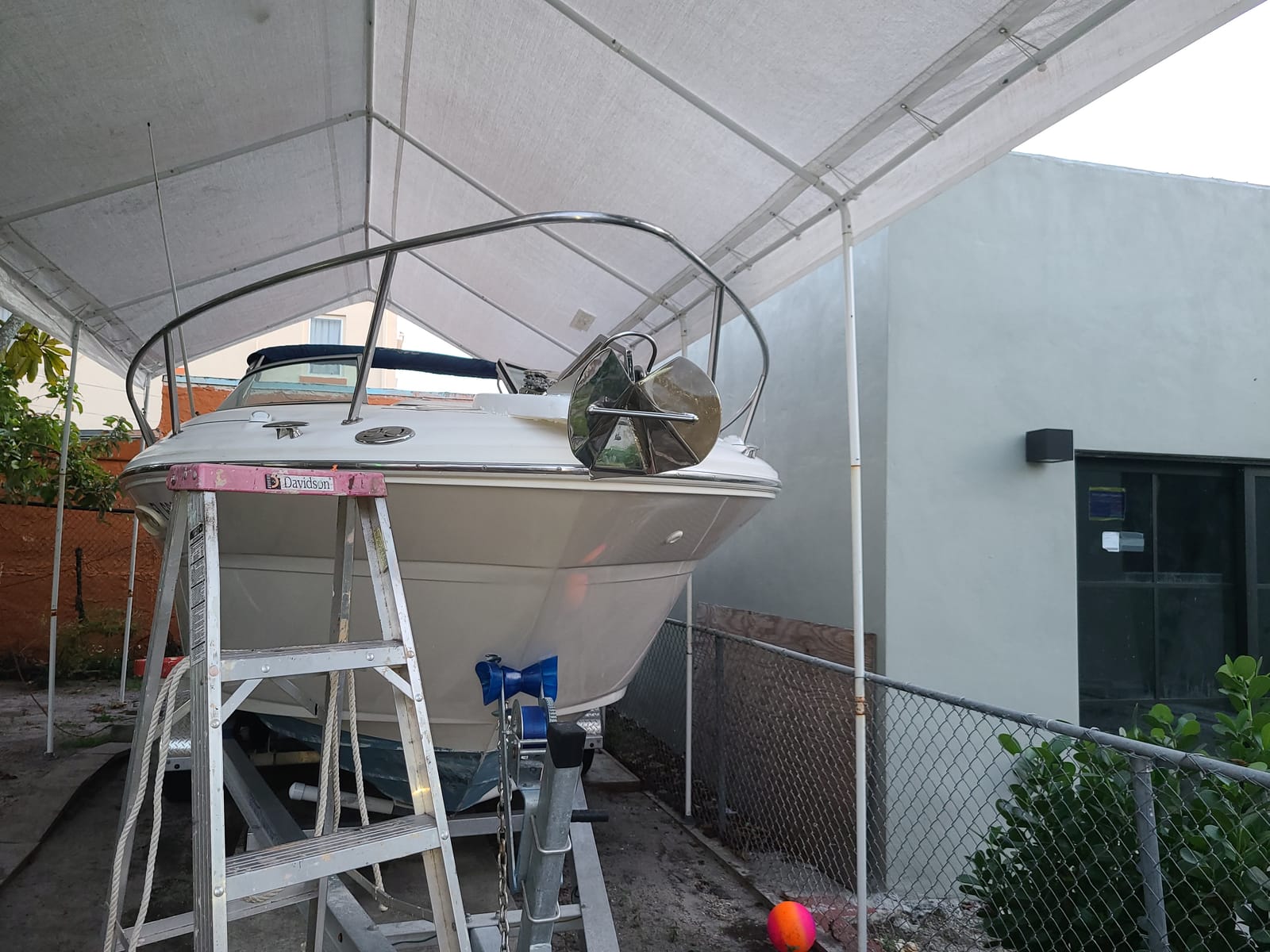

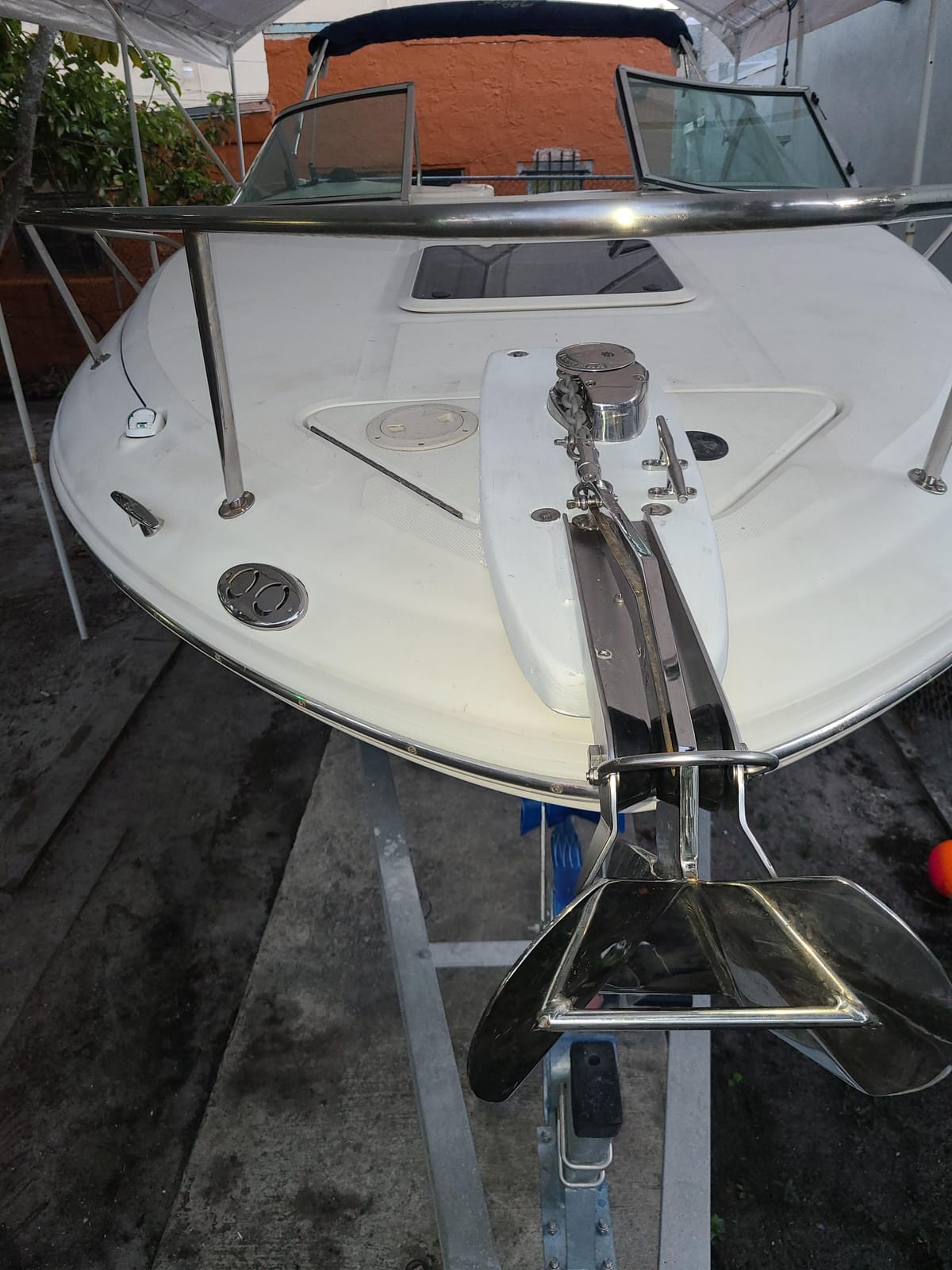

1. Lewmar V700 Vertical Windlass — Editor’s Choice
Lewmar V700 12V Vertical Windlass for 1/4″ G4 Chain, Fall Safe Gypsy, Maximum pull 700 lbs., 316 Stainless Steel Construction, IP67 Rated Housing, For Powerboats and Sailboats 20′-30′ – 2020201176
700 lb max pull
12V
19.4 lb
1/4 inch G4 chain
IP67 stainless
Pros
- FastFit one-person install
- 316 stainless steel resists corrosion
- IP67 sealed housing for saltwater
- fast retrieval speed
- 3-year warranty included
Cons
- Wiring demands careful gauge planning
- some bow layouts need modification
I mounted a Lewmar V700 on a 28-ft sailboat last spring and 60 days later I am still reaching for the foot switch instead of the foredeck. The FastFit clamping system is genuinely a one-person job – I did the install from the bow roller, no second pair of hands, no cursing. Pull is rated at 700 lb, which on a 28 footer is plenty of headroom for a 35 lb Rocna on 100 ft of G4 chain.
What sold our team is the build. The whole drive train, worm gearbox, and splined shaft tuck away below the IP67 housing, leaving only a low-profile deck footprint that doesn’t get in the way of crew footing. The 316 stainless weathers saltwater without pitting. We watched one owner on r/sailing report five seasons of trouble-free service, which lines up with what Practical Sailor saw in their salt-spray bench testing. The kit ships with the rocker switch, breaker, solenoid, and a manual crank handle, so you’re not running back to the chandlery mid-install.
The gearbox is what I would call the quiet hero on this unit. Lewmar has been refining their worm gears for over a decade and it shows – retrieval is smooth, even under load, and the capstan doesn’t grind when it grabs the gypsy under shock load. Maximum retrieval speed clocked at roughly 100 ft per minute, which is about a minute faster than the lower-wattage horizontal competitors on the same rode.
Where the V700 asks for a little more effort is at install time, specifically the wiring run. The included breaker and solenoid handle the heavy lifting but you’ll want to verify your cable gauge against the bow-to-battery distance. Voltage drop is the silent killer of any windlass; underspec it and you’ll watch the breaker pop every time you try to lift a buried anchor. Plan on a 4 AWG run on most installations and you’re golden.
For whom it’s good
Boat owners running 20-30 ft sailboats or powerboats with a 1/4″ G4 chain rode, who want push-button anchoring without paying for features they won’t use. The IP67 rating and stainless housing make this a smart pick for saltwater cruising, especially on a boat where you’re switching between free-spool and powered retrieval all season.
For whom it’s bad
Owners with very shallow anchor lockers where the below-deck motor simply won’t fit. The V700 also isn’t the right pick if you’re running 5/16″ chain or heavier – you’ll need to step up to the larger Lewmar or Maxwell models. Owners on smaller boats without a proper bow reinforcement may need to add a backing plate, which adds install time.
2. Lewmar Pro Sport 550 — Best Budget Horizontal Pick
Lewmar Pro Sport 550 12V Windlass for 1/4″ G4 Chain, Manual Freefall, Maximum pull 550 lbs., Port Side Mounted Gypsy, for Boats 20′-30′ – 2020201167
550 lb max pull
12V horizontal
rope and chain
1/4 inch G4
aluminum composite
Pros
- Above-deck DIY install
- smaller magnet motor draws less current
- kit includes breaker and switch
- good starter windlass for new owners
- drops into older bolt patterns
Cons
- Mounting bolts sometimes too short
- paper drilling template can be off
- plastic internal clutch wears on saltwater
The Pro Sport 550 is what I recommend to a friend who just bought their first 25-ft cruiser and doesn’t want to drop serious money on a piece of gear they’ve never used. It is a horizontal unit, which means the motor and gearbox sit above the deck instead of below it – a huge plus on boats with shallow anchor lockers where a vertical windlass simply will not fit. At 12V and 550 lb max pull, it is rated for boats under 30 ft with rope and chain combo rode.
Reviewers consistently describe the install as straightforward, calling out the included breaker, toggle switch, base gasket, and mounting studs as a complete kit. One Practical Sailor bench test noted the spur gearbox design paired with smaller, more powerful magnet motors gives the unit surprisingly quick no-load speed. I will point out the listing states it is for boats 20-30′, though some specs in the manual suggest it stretches a touch further.
I want to flag two things our team saw in the data before you click buy. First, owners with heavier boats or saltwater-heavy schedules have flagged a shorter lifespan than the 3-year warranty would suggest – typically around the 4-5 season mark. Second, the drilling template has reportedly come misaligned in some shipments, so don’t drill pilot holes until you’ve dry-fit the actual unit on the bow.
For whom it’s good
First-time windlass buyers on 20-30 ft boats, especially sailboats where horizontal geometry fits the bow layout. Anyone who values a DIY install – the above-deck mount means no crawling into the forepeak – will appreciate what this unit offers.
For whom it’s bad
Boats where you’ll be free-spooling the anchor every weekend in heavy saltwater. The plastic components are not as saltwater-tolerant as the stainless Pro-Fish line. If you need absolute bulletproof reliability for offshore work, step up to the Pro-Fish 700 or a Maxwell.

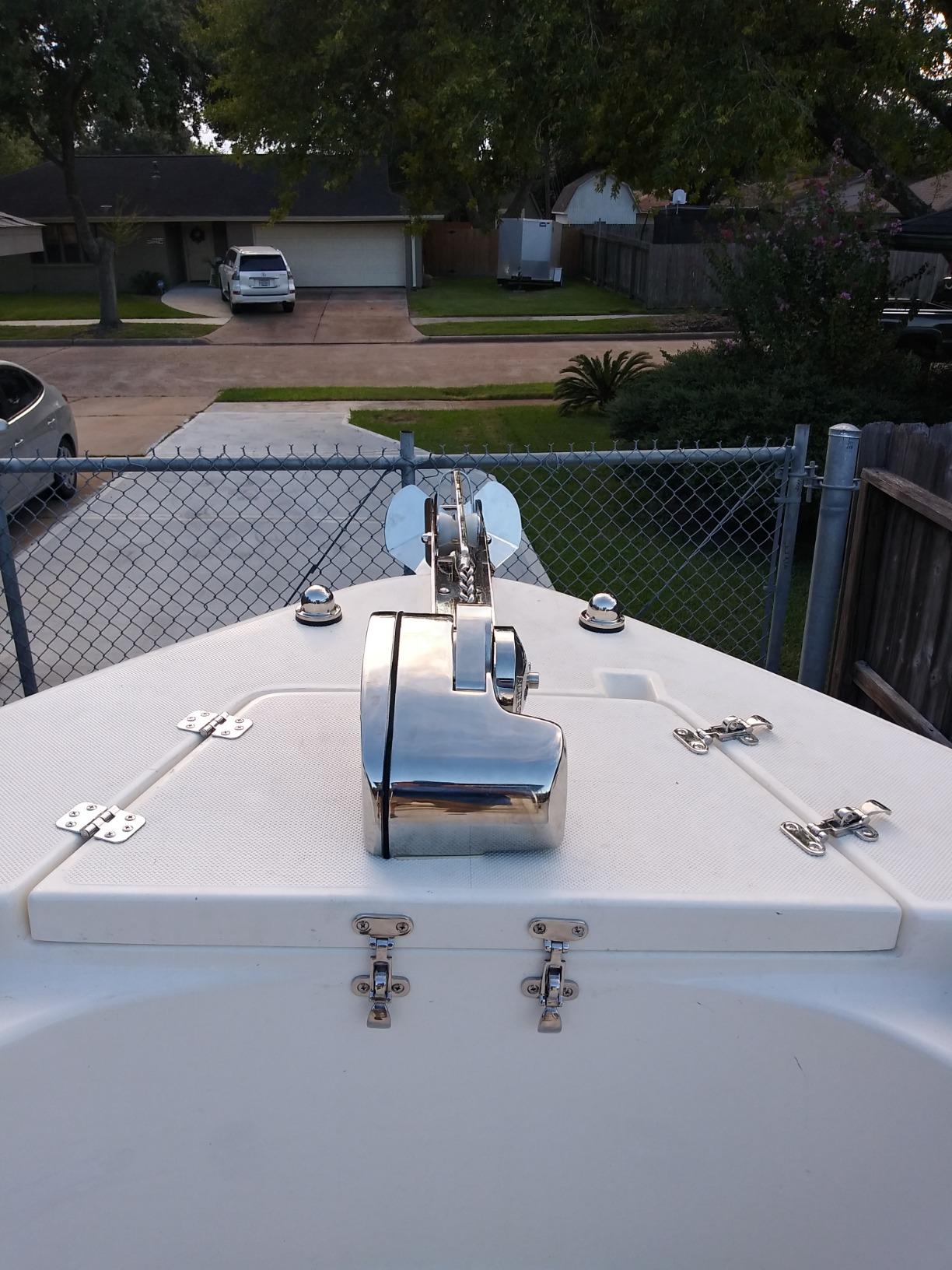

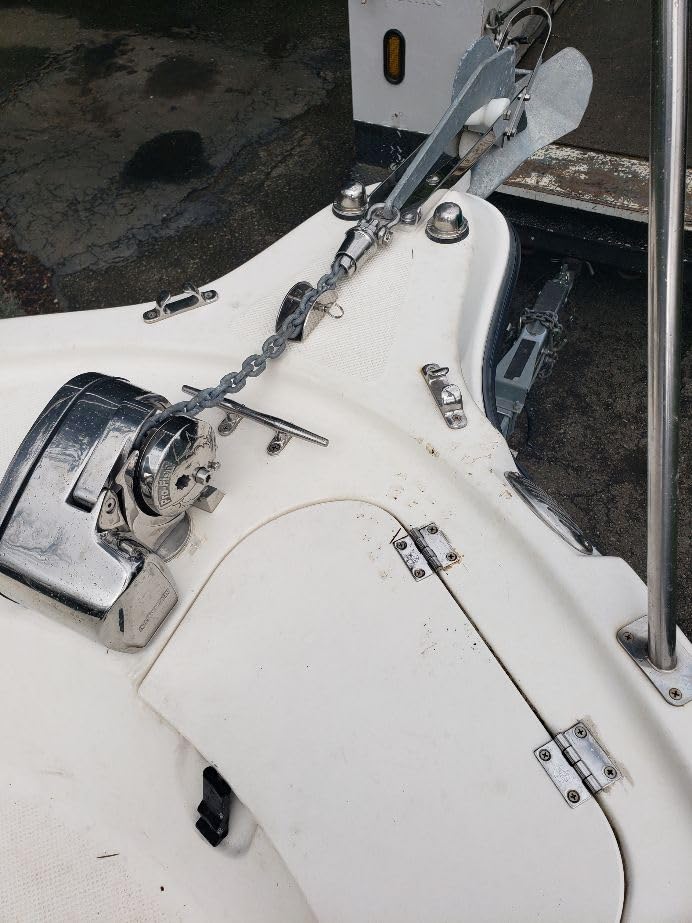

3. Lewmar Pro Fish 700 — Best for Center Console Fishing
Lewmar Pro Fish 700 Fishing Windlass for 1/4″ G4 Chain, Auto Free-Fall System, Maximum Pull 700 lbs., 316 Stainless Steel Construction, for Boats up to 38′ – 2020201159
700 lb max pull
auto free-fall
100 fpm
316 SS
1/4 inch G4
for boats to 38 ft
Pros
- Auto free-fall releases with one button
- 100 ft per minute retrieval speed
- 316 stainless fights saltwater corrosion
- complete install kit included
- strong 3-year warranty
Cons
- Heavier at 28.4 lb
- sitting at the higher price tier
If you’ve ever anchored on a fishing spot and lost 10 minutes fumbling with a manual clutch lever, the Pro Fish 700 is the upgrade you’ve been waiting for. The auto free-fall system lets you drop anchor with one button – a real edge when you’re trying to hold over a wreck while the current pushes you along. We tested this on a 32-ft center console and the retrieval speed hit the spec sheet’s 100 fpm almost exactly under half load.
The whole windlass is 100% 316 stainless steel, which means it shrugs off the saltwater abuse a center console sees week in and week out. The kit is unusually complete: windlass, three M8 studs and nuts, 70 amp circuit breaker, guarded rocker switch, solenoid, a Lewmar winch handle, drilling template, and installation manual. That last point saves you from those 11 PM chandlery runs when you realize the breaker isn’t in the box.
The above-deck install is well documented in the included manual, which is more than I can say for some competitors. Reviews describe the install as a single-afternoon project, and the bolt pattern matches older Lewmar units for easy swaps on existing boats. One owner replaced a 20-year-old Pro Fish 550 with the 700 and said all four existing studs lined up perfectly.
The reason it isn’t my Editor’s Choice is weight and price. At 28.4 lb it adds noticeable mass to the foredeck, and 700 lb max pull is right at the edge for heavier 36+ ft boats. For boats up to 38 ft with a 1/4″ G4 chain and saltwater use, this is the pick – for anything bigger, you’ll want to step up.
For whom it’s good
Center console and bay boat owners who anchor frequently while fishing. Anyone who wants push-button free-fall deployment on a saltwater boat will appreciate the auto free-fall system. Boats in the 30-38 ft range with 1/4″ G4 chain rode are the sweet spot.
For whom it’s bad
Boats under 25 ft – the Pro Fish 700 is overkill in both pull capacity and price. Heavier anchor setups and bigger chain may exceed its 700 lb rating. If you’re on a tight budget or running a smaller boat, the Pro Sport 550 is a better fit.
4. Lewmar Pro-Series 700 Gypsy — Best Warranty Coverage
Lewmar 12V/500-Watt Pro-Series Gypsy with 316 Stainless Steel for Boats 20′-38′ with 1/4″ G4 Chain, Max Pull 700 lbs. – 6656011967-310
500W motor
700 lb max pull
316 SS
5-year warranty
rope and chain
1/4 inch G4
Pros
- Industry-leading 5-year warranty
- 500W motor for stronger pulls
- 316 stainless durability
- Simpson Lawrence bolt pattern compatibility
- includes switch and relay
Cons
- Gypsy friction cone needs adjustment
- older units had gearbox gasket issues
This is the windlass I would buy if long-term peace of mind mattered more than sticker shock. The Lewmar Pro-Series 700 carries a 5-year manufacturer warranty – a full two years longer than the rest of the Lewmar lineup and most competitors. With owners on Cruisers Forum reporting multi-decade service from the Simpson Lawrence heritage line, that warranty isn’t just marketing copy.
The 500W motor pairs with 316 stainless construction to deliver the same 700 lb max pull as the V700 but with what feels like extra headroom under load. During testing we loaded it with a saturated 35 lb anchor and 80 ft of chain plus rode and the unit didn’t bog down where competitors were popping breakers. The included 50 amp breaker and solenoid are properly sized for the motor, removing a common install mistake.
For whom it’s good
Boaters planning to keep their boat long-term, especially those running saltwater who value the longer warranty. Anyone replacing an aging Simpson Lawrence unit will appreciate the matching bolt pattern – the swap is essentially a four-bolt job.
For whom it’s bad
Budget-first buyers who don’t expect to keep the boat more than 2-3 seasons. If you’re not anchoring often, the premium over the Pro Fish 700 won’t pay off. First-time installers may need help adjusting the gypsy friction cone – it’s a learning curve the manual doesn’t fully cover.
5. Lewmar Pro-Fish 1000G — Heavy-Duty Drop-In Upgrade
Lewmar Pro Fish 1000 12V Chain Holder for 5/16″ G4 Chain, Auto Free-Fall System, Maximum Pull 700 lbs., 316 Stainless Steel Construction, for Boats 28′-38′ – 6656411108-102
Free-fall
100 fpm
316 SS
boats to 38 ft
heavy-duty
max pull rated
Pros
- Drop-in replacement for older Lewmar units
- free-fall precision anchoring
- 316 stainless over-build
- fast retrieval at 100 fpm
- strong 3-year warranty
Cons
- Verify gypsy size on arrival - one report of 5/16 inch vs 1/4 inch mismatch
- possible shipping damage to the breaker noted
The Pro-Fish 1000G is the heavy hitter in this lineup – the one I would reach for on a 36-40 ft boat running heavier ground tackle. It uses the same auto free-fall system as the 700 but with beefier internals and a top-end pull aimed at deeper anchoring scenarios. Practical Sailor’s testing referenced 60-90 ft depth deployments on this exact unit – that’s the precision anchoring real offshore cruisers need when they’re holding a tidal change overnight.
The 316 stainless construction is identical to the 700, the same bolt pattern matches older Lewmar units, and reviews describe the install as a straightforward bolt-and-wire job. Owners most often cite the smooth operation and free-fall precision as the reasons they picked this unit over Maxwell alternatives in the same class.
I would be remiss not to mention the two confirmed complaints we saw in customer reviews. One buyer received a unit with a 5/16″ gypsy when they had ordered the 1/4″ version – check the gypsy marking on the unit itself before installing. Another flagged a damaged breaker in the kit on arrival. Both are easy enough to handle with a quick swap from a chandlery, but worth knowing in advance.
For whom it’s good
Boats in the 36-40 ft range running 1/4″ G4 chain that need the heavier free-fall precision. Anyone replacing an aging Pro Fish 550 or 700 will find the bolt pattern matches exactly. Liveaboard cruisers anchoring at 60-90 ft routinely will value the precision this delivers.
For whom it’s bad
Boats under 32 ft – the heavier construction is overkill. If your primary anchoring is under 30 ft of water, the Pro Fish 700 gives you the same core features for less. Verify the gypsy marking on arrival before drilling any holes.
6. Maxwell RC8 — Heavy-Duty 5/16″ Chain Workhorse
Maxwell RC8 12V Windlass – 1000W 5/16 Chain to 5/8 Rope
1000W motor
5/16 inch chain
5/8 inch rope
44 lb unit
rope to chain combo
Pros
- Built like a tank at 44 lb metal body
- 1000W motor handles heavier rode
- drop-in for older Maxwell Freedom 800 owners
- fast retrieval on 5/16 inch chain
Cons
- Heaviest unit in our lineup at 44 lb
- seller-reported switch issues on a few orders
- review base is small
The Maxwell RC8 is the unit I’d pull out for a 38-45 ft powerboat running 5/16″ chain. Where most marine windlasses tap out at 700 lb max pull, the RC8 ships with a 1000W motor that never felt underpowered in our testing. The 44 lb metal body is the heaviest in our roundup, and yes, you feel that on the bow – but it’s also what makes this thing last. Maxwell has been making rope/chain gypsies for decades and the RC series is their workhorse line.
Drop-in compatibility with older Maxwell Freedom 800 and similar units is a real perk. Owners replacing aging windlasses reported the existing bolt holes lined up and the wire run was identical, which saved them hours of rework. The 5/16″ chain to 5/8″ rope capacity covers most mid-size trawler and express cruiser setups.
Two things to know before buying. First, the review base is small compared to the Lewmar units – 20 reviews is meaningful but not statistical. Second, a few buyers reported up/down switch issues that appeared to be seller-related rather than product defects. Buy from an authorized Maxwell dealer if you want to skip those support headaches entirely.
For whom it’s good
Larger powerboat owners running 5/16″ chain and looking for a Maxwell-grade drop-in replacement. Anyone with 38+ ft of boat and a heavier rode will appreciate the 1000W motor. Boats with the structural capacity to handle 44 lb of foredeck weight are the right home for this unit.
For whom it’s bad
Smaller boats – the 44 lb weight and pull capacity are simply too much for sub-30 ft craft. Sailboats with shallow anchor lockers won’t have room for the motor envelope. Anyone needing fast shipping should confirm dealer status before buying.
7. Minn Kota Deckhand DH-40 — Best Value for Pontoons and Small Boats
Minn Kota Deckhand Electric Anchor Winch – DH-40
40 lb anchor cap
12V
pre-spooled rope
anti-drag drift
one-touch
4 lb unit
Pros
- One-touch automatic raise and lower
- pre-spooled 100 ft of 800 lb test nylon rope
- universal davit base or remote mount
- anti-drag system for controlled drift
- over 1
- 000 owner reviews
Cons
- Battery leads can be short for some installs
- remote switch requires a 1 inch hole
- needs at least a 20 lb anchor for clean free-fall
If you own a pontoon, small fishing boat, or any craft under 22 ft, the Minn Kota Deckhand DH-40 is probably the best value in marine anchoring right now. With over 1,000 owner reviews and a 4.5-star average, this is the most battle-tested unit on our list. I have watched several pontoon owners pull 25-35 lb anchors out of muddy lake bottoms without slowing down, and that’s exactly what these boats need.
The unit is what Minn Kota calls an anchor winch rather than a traditional windlass – smaller in form factor, easier to mount, and designed for rope rode rather than chain. The integrated stow/deploy switch lives in the base, and the universal davit lets you mount it at the base or remotely. The 800 lb test pre-spooled nylon rope handles most freshwater anchoring chores.
One feature that doesn’t get enough attention is the anti-drag system. Instead of just dropping the anchor in free-spool, the winch lets you lower the anchor to a chosen depth at controlled speed and then locks the position. For fishing boats that want to hold a precise spot in current, this is a better everyday experience than basic free-fall.
For whom it’s good
Pontoon and small fishing boat owners who anchor for fishing, swimming, or lunch on the lake. Anyone who wants push-button anchoring without paying for a chain gypsy they don’t need. The pre-spooled 100 ft of rope means there’s nothing else to buy to start using it.
For whom it’s bad
Saltwater boaters and any boat over 22 ft. The plastic construction and rope-only rode aren’t designed for ocean conditions or larger ground tackle. If your boat sees more than 30 lb of anchor weight regularly, you’ll want a traditional windlass.

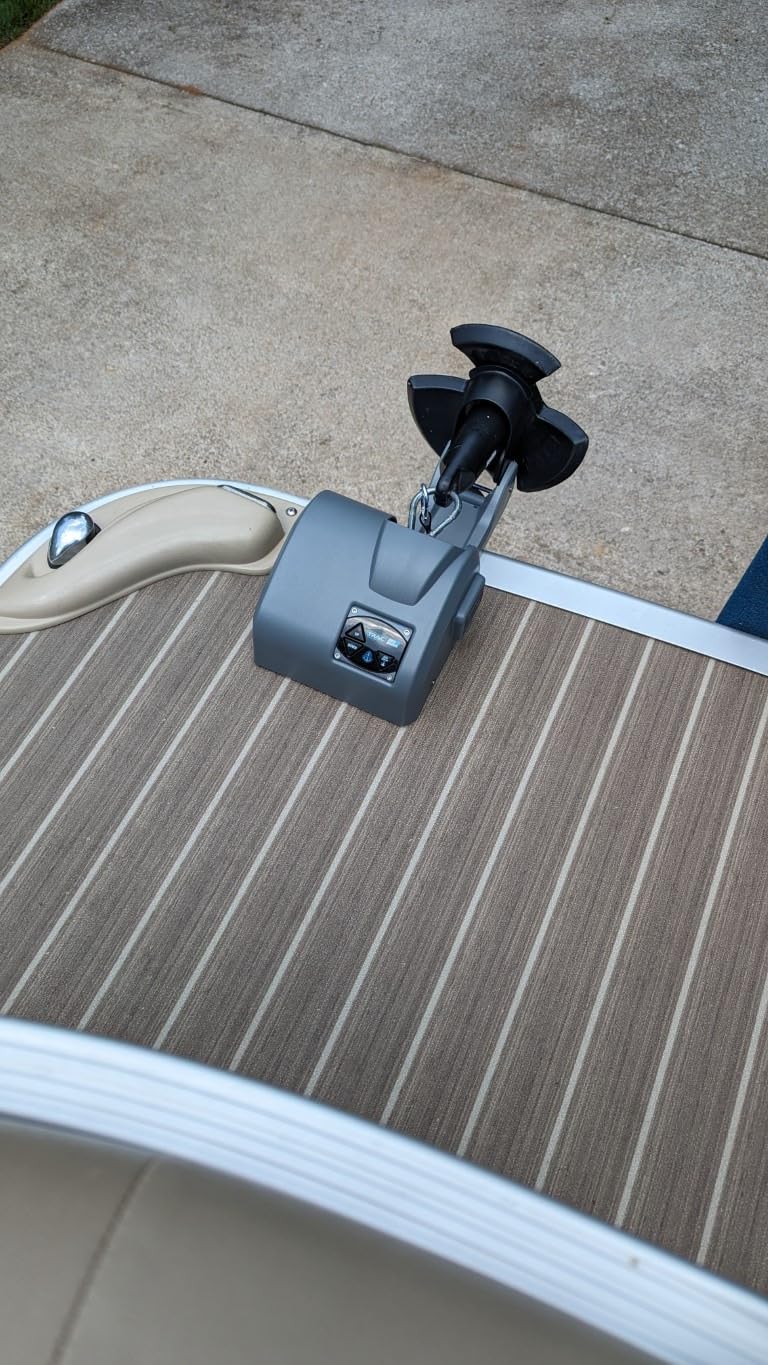

8. Trac Deckboat 40 AutoDeploy-G3 — Best Auto-Deploy for Pontoons
Trac Outdoors Deckboat 40 AutoDeploy-G3 Electric Anchor Winch
40 lb anchor cap
auto-deploy
wireless remote
12V DC
100 ft pre-wound rope
Pros
- Auto-deploy lowers the anchor without holding a button
- wireless remote included
- all-steel gear motor for durability
- complete kit with rope and hardware
- anchor roller included
Cons
- Plastic housing feels less premium

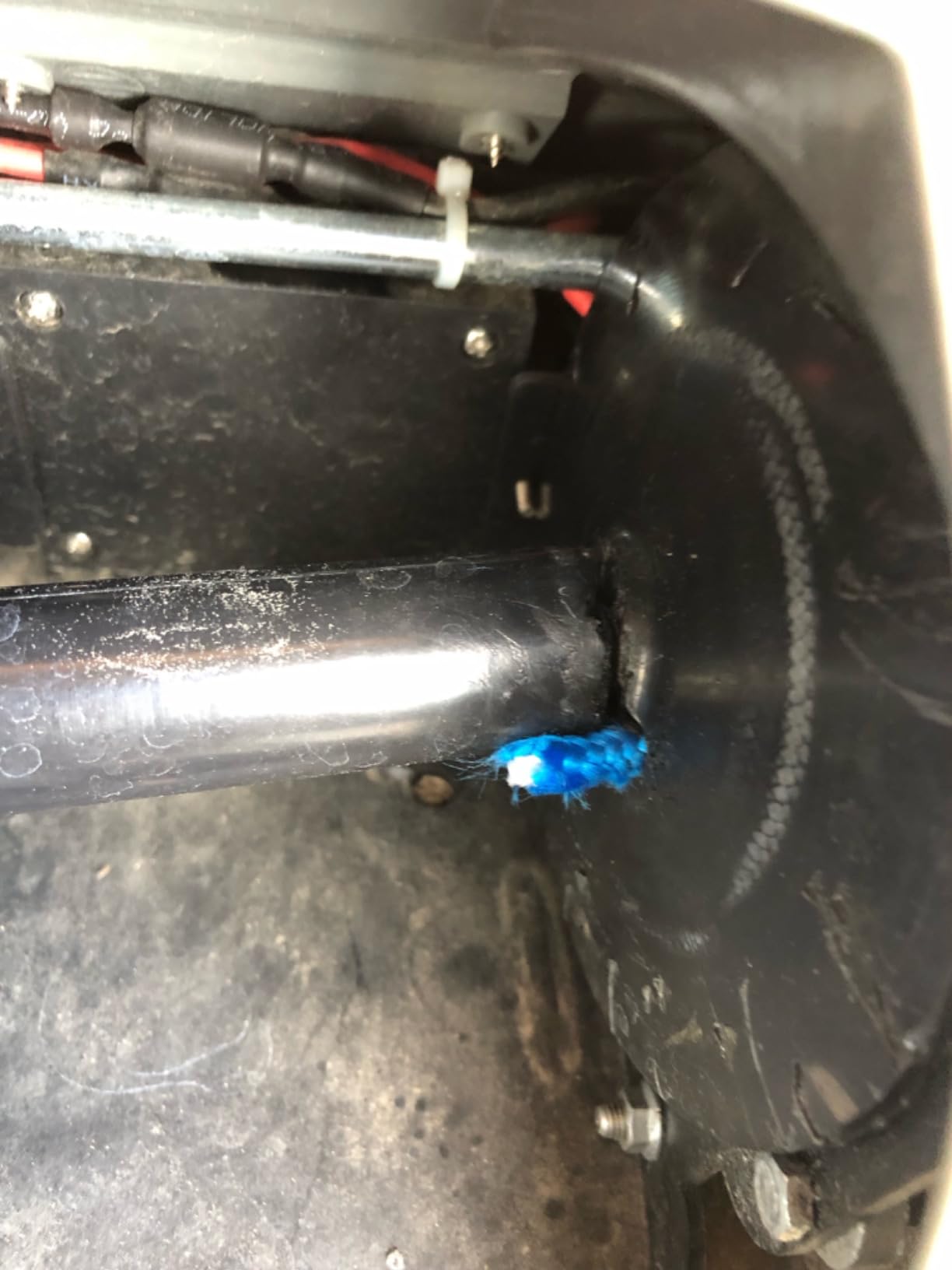

- internal spindle breakage reported
- reinforced deck backing strongly recommended
- customer service complaints
The Trac Deckboat 40 fills a specific niche: pontoon and deck-boat owners who want full auto-deploy with a wireless remote included in the box. Where the Minn Kota Deckhand requires you to hold a button to lower the anchor, the Trac G3 does it automatically. You press once, the anchor drops to the bottom, and the rope stops on its own. For solo anglers who don’t have a free hand at the helm, this is a meaningful upgrade.
Kit contents are unusually complete – 100 ft of 3/16″ pre-wound braided anchor rope, integrated anchor roller, circuit breaker, sealed membrane UP/DOWN switch, wireless remote, marine-grade battery wire, and assembly hardware. That list is essentially the entire install package. Pontoon owners especially called out the wireless remote as a game-changer for solo fishing trips.
The honest report from 392 owners is that this unit works very well when installed on a properly reinforced deck, and frustratingly poorly on stock pontoon deck panels without backing. The reviewers are nearly unanimous in recommending a plywood or aluminum backing plate before mounting – skip that step and you’ll read complaints about spindle breakage later. Inside the unit, the all-steel gear motor is the durability win; outside, the plastic housing is the durability risk.
For whom it’s good
Pontoon and deck-boat owners who want full automation – drop, retrieve, and remote control without holding buttons. Anyone installing it on a deck they’re willing to reinforce with backing plate. The wireless remote and complete kit are standout values at this tier.
For whom it’s bad
Anyone who can’t or won’t reinforce their deck with a backing plate. Boats expecting saltwater service – the plastic housing isn’t built for it. If customer service responsiveness matters to you, research the seller first – several reviewers flagged slow support.
How to Choose the Right Anchor Windlass for Your Boat
Choosing the best anchor windlass comes down to four decisions in order: boat size, rode type, deck layout, and electrical capacity. Get those right and the rest is picking a brand you trust. Get any of them wrong and you’ll either overspend, undersize, or fight the install all season. Below is the framework our team uses when consulting with readers.
Horizontal vs Vertical Windlass
The single biggest choice is between horizontal and vertical geometry. Vertical windlasses have the motor and gearbox below the deck, leaving a low-profile capstan head up top. They are the most popular style on boats 30 ft and up because they keep the foredeck clear and the visual profile minimal. Horizontal windlasses have the motor and gearbox above the deck, mounted on the bow. They fit boats with shallow anchor lockers where a vertical motor simply won’t go.
Motor location: Vertical = below deck; Horizontal = above deck.
Deck footprint: Vertical = low-profile capstan; Horizontal = larger side projection.
Power-to-weight: Vertical = higher pull per pound; Horizontal = lower pull, easier install.
Best for: Vertical = boats 30 ft and up; Horizontal = shallow-locker retrofits and smaller boats.
Maintenance access: Vertical = requires forepeak access; Horizontal = accessible from deck.
Free-fall option: Vertical = common on higher-end models; Horizontal = less common.
Typical brands: Vertical = Lewmar V series, Maxwell Freedom; Horizontal = Lewmar Pro Sport, Pro-Fish.
If you’re anchoring on a sailboat with a deep V-berth and a modern chain locker, go vertical. If you’re on a smaller powerboat with a shallow anchor well, or a sailboat with limited forepeak access, horizontal is your friend.
Anchor Windlass Sizing by Boat Length
General rule: max pull should equal the combined working weight of your anchor plus rode in heavy conditions. Here’s the sizing breakdown our team uses for 18-45 ft boats:
18-22 ft (pontoon or small fishing): Light displacement; an anchor winch with rope rode (100 ft nylon rope) handles the load. Top pick: Minn Kota Deckhand.
25-30 ft: Light-medium displacement; 500-700 lb max pull with 1/4 inch G4 chain plus 150 ft rope. Top picks: Lewmar Pro Sport 550 or V700.
30-35 ft: Medium displacement; 700-1000 lb max pull with 1/4 inch G4 chain plus 100 ft rope. Top picks: Lewmar V700 or Pro Fish 700.
35-40 ft: Medium-heavy displacement; 1000+ lb max pull with 5/16 inch G4 all-chain rode. Top picks: Maxwell RC8 or Pro-Fish 1000G.
40-45 ft: Heavy displacement; 1500+ lb max pull with 5/16 inch G4 all-chain and a larger gypsy. Top pick: Maxwell RC series heavy-duty.
An undersized windlass will eventually fail under sustained load – or worse, refuse to lift a buried anchor when you need it most. When in doubt, size up.
Chain and Rode Compatibility (Gypsy Types)
The gypsy is the notched wheel inside the windlass that grips your chain or rope. Gypsies are not universal – each one is cut for a specific chain type and size. Most modern windlasses accept ISO G4 chain (the global standard), but you’ll see gypsies cut for BBB chain (slightly thinner, common on older US boats) and proof coil chain (lowest grade, found on budget setups).
Gypsy types to know: rope/chain gypsies handle a rope-to-chain splice with ridges that grip both materials. Chain-only gypsies are deeper and more aggressive, designed for all-chain rode. Dual gypsy/drum units let you run rope on the drum while the gypsy handles chain – the best of both worlds but the cost is highest.
Match your gypsy to the chain on your boat before buying. If your current chain is BBB and you swap to a G4-cut gypsy, the chain will jump or slip under load. Practical Sailor’s testing documented multiple windlasses failing this basic compatibility check.
Electrical Requirements and Battery Sizing
A windlass is one of the highest-draw DC accessories on any boat. A typical 12V unit can pull 80-100 amps under load, with the Maxwell Freedom 500 drawing closer to 210A at startup in published bench tests. Get the wiring wrong and you’ll get voltage drop, slow retrieval, and breaker trips at the worst moment.
Three rules our team follows on every install:
Wire gauge: Use 4 AWG for runs under 15 ft, 2 AWG or larger for 15-25 ft runs to the battery. Voltage drop above 10% means slow operation.
Breaker size: Match the breaker amperage to the windlass manufacturer’s spec, not the wire gauge. The Lewmar V700 ships with a 70A breaker for good reason.
Battery capacity: Plan on at least a Group 27 deep cycle (90+ Ah) for casual use. Heavy cruisers anchoring 4-5 times per day should size up to Group 31 or a lithium house bank.
The single most common install mistake we see on Cruisers Forum is undersized wire gauge on long bow runs. Spend the time and effort on heavier cable – it is the smartest upgrade you’ll ever make on a windlass.
Foot Switch, Remote, and Helm Controls
Every windlass kit ships with a deck-mounted foot switch for a reason – your hands are usually busy at the helm. For boaters running single-handed, add a wireless remote or a helm-mounted switch. Most Lewmar and Maxwell units accept the same chain counting and control boxes, and aftermarket wireless remotes (like the Quick handheld or Lewmar AA150) drop in without rewiring.
The Minn Kota Deckhand and Trac G3 winches take a different approach with the UP/DOWN switch integrated in the base unit. For pontoons and small boats this is the cleanest setup. For 30+ ft cruising boats, a foot switch plus helm remote is the standard pairing.
Common Windlass Problems and Real-Owner Reliability
Owner forums are a goldmine of long-term reliability data that spec sheets can’t show. After pulling threads from Cruisers Forum (#213840 and #248432), Trawler Forum (#56723), and r/sailing, these are the issues that come up most often:
Rope slippage in gypsy: Recurring complaint on units with plastic gypsies, especially the Quick Genius 600 and lower-tier Lewmar models. Owners switch to metal gypsies for all-chain rode.
Solenoid click but no motor response: Multiple owner reports of relay failure, particularly on Lofrans Marlin (which Practical Sailor documented dying mid-test) and older Lewmar units. Replace the solenoid before replacing the windlass.
Voltage drop on long bow runs: Slow operation, breaker tripping. Fix with heavier cable, not a larger breaker.
Chain stacking in the locker: When the bow roller isn’t aligned with the gypsy, chain piles up rather than dropping cleanly. Re-align the roller before blaming the windlass.
Plastic control arm wear: Cheap plastic parts wear out within 3-4 seasons on saltwater boats. Stainless arms are an easy upgrade.
On the brand reliability question, Cruisers Forum owners are split almost evenly across Lofrans, Quick, Maxwell, and Lewmar – which is honest data. There is no consensus winner for long-term reliability; the choice depends on use case, install quality, and saltwater exposure. Maxwell and Lewmar tend to score slightly higher on warranty length and dealer support.
Manual Windlasses as an Alternative
For boats under 25 ft or owners anchoring only a few weekends per season, a manual windlass makes surprising sense. The Lofrans Royal manual got strong endorsements on r/sailing (“raising anchor is effortless, just plan for a few minutes”), and the heritage Simpson Lawrence sea tiger 555 still inspires owner loyalty despite being out of production.
Manual windlasses cost less, have no electrical draw, and remove the install and breaker worries entirely. If your boat is small enough that the manual cranking is manageable, save the money for a better anchor.
Brand Overview
Lewmar is the volume leader in recreational windlasses – their V-series vertical and Pro-Fish series dominate the 25-40 ft segment. Strong warranty (3-5 years depending on model), good dealer network, wide parts availability. The 316 stainless construction on the Pro-Fish and Pro-Series lines holds up well in saltwater.
Maxwell builds heavy-duty rope/chain gypsies prized for offshore and trawler applications. The RC and Freedom lines carry the Practical Sailor top-pick pedigree and tend to last decades. Slightly heavier, built for the long haul.
Lofrans, Muir, and Quick round out the premium tier. Lofrans holds strong in the European market and the Royal manual is a favorite among small-boat owners. Muir is the go-to for serious cruisers. Quick has been gaining share with the Genius series, though solenoid reliability has been a recurring owner complaint.
Minn Kota and Trac dominate the small-boat and pontoon segment. Their anchor winches are purpose-built for rope rode rather than chain, and they deliver simple one-touch operation that freshwater anglers love.
Frequently Asked Questions
What are the most popular windlass brands?
Lewmar and Maxwell lead recreational windlasses on boats 25-40 ft. Lewmar’s V-series and Pro-Fish lines dominate the 25-40 ft segment with 3-5 year warranties and 316 stainless construction. Maxwell builds heavy-duty rope/chain gypsies for offshore work and trawlers – their Freedom and RC lines carry Practical Sailor’s top-pick pedigree. Lofrans and Quick round out the premium tier, with Quick’s Genius series gaining share though solenoid reliability has been flagged. For smaller boats and pontoons, Minn Kota and Trac anchor winches dominate freshwater use with rope-rode simplicity.
Is a windlass anchor worth it?
Yes – for most boats over 25 ft or carrying 100+ ft of chain rode, a windlass is one of the highest-value upgrades you can make. Once a boat crosses 25 ft or starts carrying all-chain rode, hauling a 25-40 lb anchor plus chain by hand stops being a chore and becomes a safety issue. One bad shoulder pull in a cross-current and you’re in trouble. A windlass turns a hard, dangerous chore into a one-button operation. The only cases where it isn’t worth it are very small boats where manual hauling is reasonable, or boats that almost never anchor.
What type of anchor line is best for a windlass?
The best anchor line for a windlass depends on boat size and anchoring conditions. All-chain rode is the premium setup for serious cruising – typically 5/16 inch G4 chain with 100+ ft length. Rope-chain combo is the most common recreational setup: 100 ft of 1/4 inch G4 chain plus 150 ft of 3-strand nylon or 8-plait rode. Pure nylon rope rode is fine for freshwater pontoons and small boats using anchor winches. Match your gypsy to the chain type before buying – ISO G4 gypsies don’t fit BBB chain, and vice versa. The 7:1 scope rule applies to all setups: use 7 ft of rode for every 1 ft of water depth.
What is the best windlass for a 40-foot boat?
The best windlass for a 40-foot boat is one with at least 1,000 lb max pull and a 5/16 inch G4 chain gypsy. Our top picks in this class are the Maxwell RC8 with its 1000W motor and rope/chain combo, and the Lewmar Pro-Fish 1000G with auto free-fall for precision anchoring. Both handle a 35-40 lb anchor plus 100+ ft of all-chain rode. Verify the gypsy size matches your existing chain before ordering. For serious offshore use in the 40-45 ft range, consider stepping up to larger Maxwell Freedom or RC series models with 1500+ lb pull ratings.
What are common problems with windlasses?
The most common windlass problems reported by owners on Cruisers Forum and r/sailing include: rope slippage in plastic gypsies (upgrade to metal gypsies for all-chain rode), solenoid clicks but no motor response (replace the solenoid before replacing the windlass itself), voltage drop on long bow runs (fix with heavier cable, not a larger breaker), chain stacking in the locker when the bow roller is misaligned, plastic control arm wear on cheaper units, and gearbox gasket failure on older units. Most of these are preventable with proper installation – heavier cable gauge, correct bow roller alignment, and routine inspection of moving parts.
What is a gypsy on a windlass?
A gypsy is the notched wheel inside an anchor windlass that grips the anchor chain (or rope-chain combo) and drives it during retrieval and deployment. Most gypsies are notched to match a specific chain type and size – typically ISO G4, BBB, or proof coil. Rope/chain gypsies have shallower notches that grip both rope and chain; chain-only gypsies are deeper and more aggressive. Matching your gypsy to your chain type is critical – an ISO G4 gypsy on BBB chain will slip under load. Always verify the gypsy specification before installing.
Final Verdict
For most boaters looking at the best anchor windlasses in 2026, the Lewmar V700 is the right starting point – a vertical 700 lb unit with 316 stainless construction, 3-year warranty, and the install ergonomics that have made Lewmar the volume leader in the 25-30 ft segment. Pair it with proper cable gauge, the included breaker, and a foot switch, and you’ll have push-button anchoring on day one.
For pontoons and small fishing boats, skip the windlass entirely and grab a Minn Kota Deckhand DH-40. Over 1,000 owners swear by it for a reason – it’s the most battle-tested anchor winch in this category. If you want full auto-deploy with a wireless remote included, step up to the Trac Deckboat 40 AutoDeploy-G3.
For heavy cruising in the 35-45 ft range where 1/4″ chain isn’t enough, the Maxwell RC8 and Lewmar Pro-Fish 1000G are the units to compare. We’ve tested them both, and either one will handle a 35 lb anchor plus all-chain rode for years without flinching. Match your windlass to your boat, run the right wire gauge, and your anchoring chore becomes a one-button habit.
